Intel® Atom® x6000 Series COM Express Type 6 (R3.0) CPU Module

  • Onboard Intel® Atom® x6000 series processors
  • Onboard 8GB DDR4 memory + 1x DDR4 SO-DIMM, IBECC compatible
  • 1x I226IT PCI-E 2.5G LAN
  • 2x USB 3.1, 4x USB 2.0, 2x SATA III, 2x UART (Tx/Rx only)
  • 3x independent displays, DisplayPort /DVI-D / LVDS or eDP via carrier board (IP419)
  • Wide-range operating temperature from -40°C to +85°C
  • Wide Temperature

The ET880 is a COM Express CPU module designed to meet the demands of embedded applications that require low power consumption and fanless operation. The module integrated Intel Atom x6000 series processors that are built on 10nm technology support clock speeds of up to 3.2 GHz and Intel's Time Coordinated Computing (TCC) technology, which enables precise clock synchronization across multiple devices.

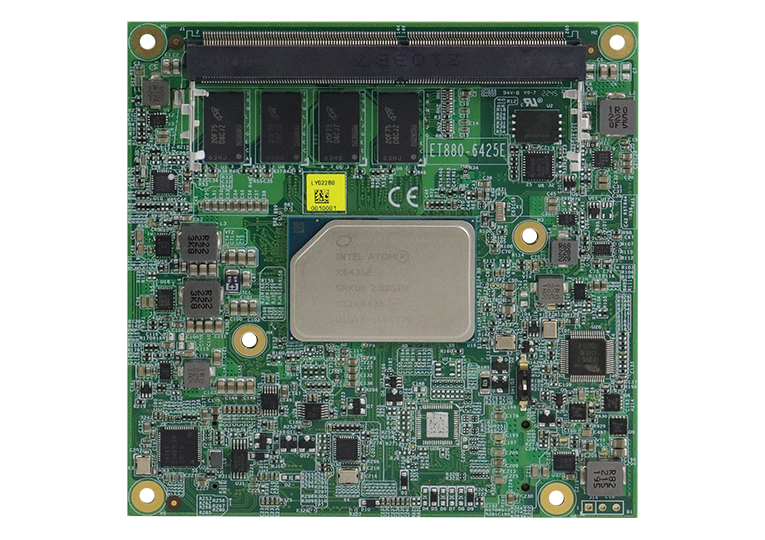

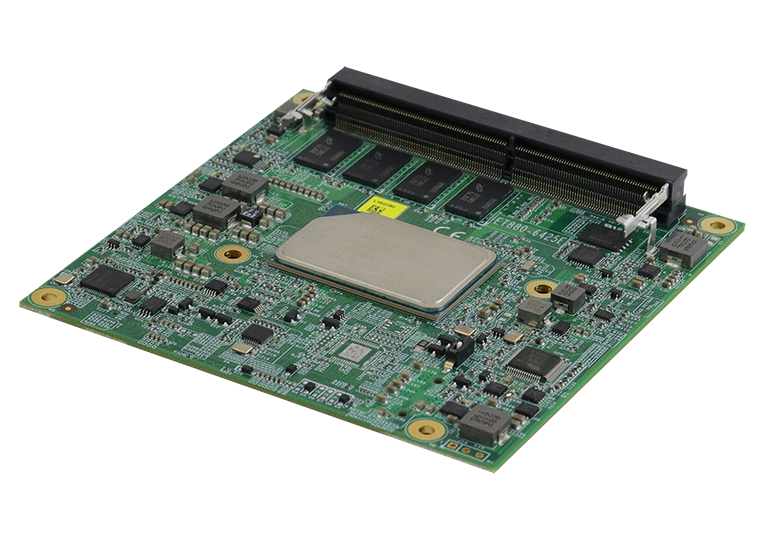

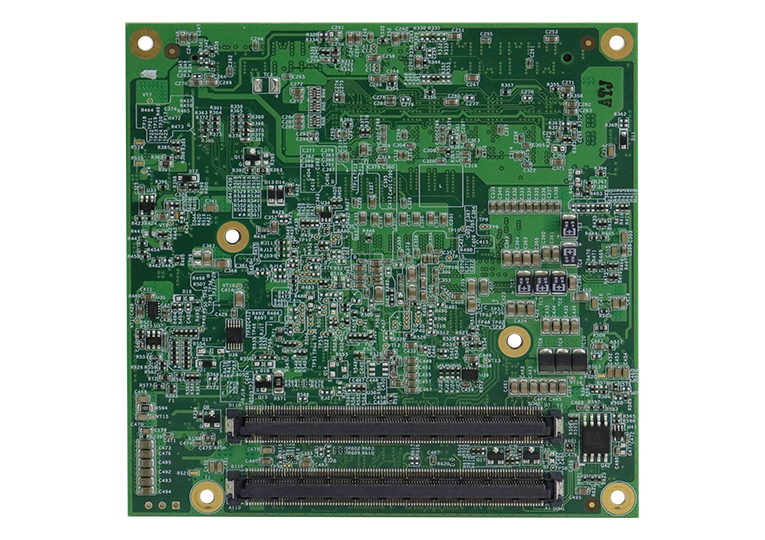

ET880 Rugged COM Express CPU Module with Intel Atom x6000 Processors

The ET880 delivers robust performance and reliability, with features that make it an ideal choice for a variety of industrial and IoT applications. The module boasts onboard 8GB DDR4 memory and a DDR4 SO-DIMM slot for a total RAM capacity of 24GB to ensure efficient system operation. It is equipped with a range of connectivity options, such as a I226IT PCI-E 2.5G LAN controller, two USB 3.1, four USB 2.0, two SATA III, two UART (Tx/Rx only), and three independent displays via the DisplayPort / DVI-D / LVDS or eDP interfaces on the IBASE IP419 carrier board.

The ET880 is compatible with Windows 10 and Linux operating systems, and manufactured to meet the stringent requirements of industrial applications, with an extended temperature range of -40°C ~ +85°C, and long-term availability.

CPU Intel® Atom® QC x6425E (1.8Ghz/3.0GHz)
Intel® Atom® DC x6211E (1.2Ghz/3.0GHz)
PCH Integrated in Intel® SoC
Memory Onboard 8GB DDR4 & 1x DDR4 SO-DIMM, Max. support 24GB, IBECC compatible
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 5x PCI-E(x1) to carrier board
Graphics Controller Intel® Gen11 integrated graphics
Video Output 2x DDI, LVDS or eDP on carrier board
Ethernet 1x Intel I226IT 2.5GbE
RJ45 on carrier board
I/O Chipset Fintek F81804U-I
Serial Port 2x COM ports (Tx/Rx only)
USB 2.0 4x USB2.0 via carrier board
USB 3.X 2x USB3.1 (5Gbps) via carrier board
Serial ATA 2x SATA III via carrier board
Audio Built-in HD audio controller
TPM TPM (2.0)
Others Digital I/O (4-in/4-out)
Dimensions (L X W) 95mm x 95mm (3.74“ x 3.74“)
Power Consumption Intel® Atom® x6425E Processor 2.00GHz w/ 8GB DDR4-3200 +12V:1.93A
Operating Temperature -40°C~+85°C ( -40°F~+185°F) ; exclude SO-DIMM memory module
Storage Temperature -40°C~90°C (-40°F~+194°F)
Relative Humidity 90% (non-condensing @60°C)
ET880-6425E COM Express (Type-6) module w/ Intel® Atom® x6425E SoC on board, supports eDP
ET880-6425ELV COM Express (Type-6) module w/ Intel® Atom® x6425E SoC on board, supports LVDS
ET880-6211E COM Express (Type-6) module w/ Intel® Atom® x6211E SoC on board, supports eDP
ET880-6211ELV COM Express (Type-6) module w/ Intel® Atom® x6211E SoC on board, supports LVDS

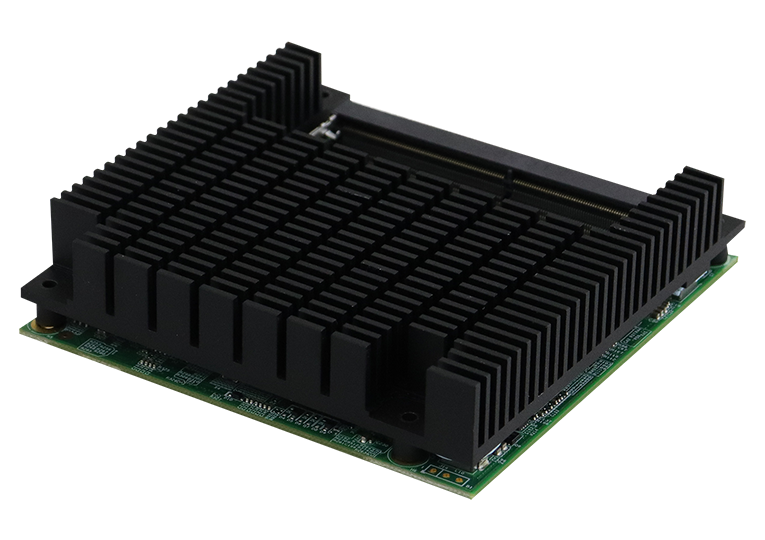

HSET880-A Heatsink for ET880 with Atom® x6000 series SoC

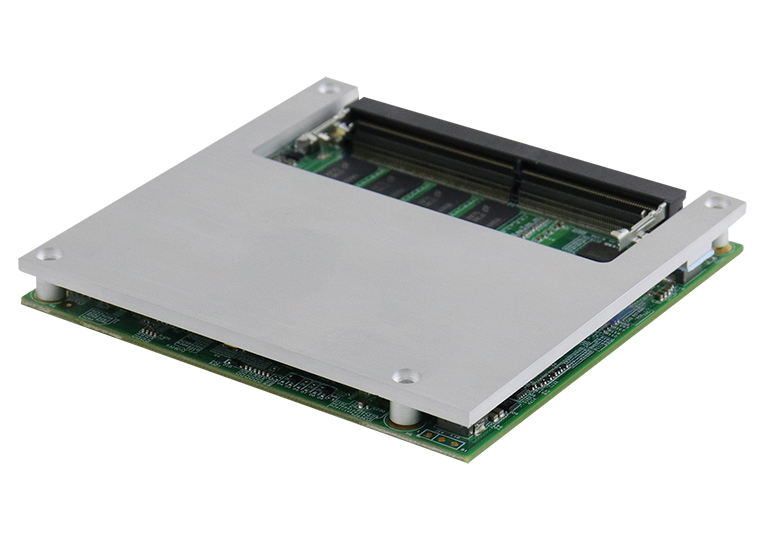

HSET880-1 Heat spreader for ET880 with Atom® x6000 series SoC
