Embedded Computing

Riser Cards

Embedded Function Cards

  • PCI or PCI Express® interface based
  • Upgradeability, flexibility and serviceability

Riser Cards

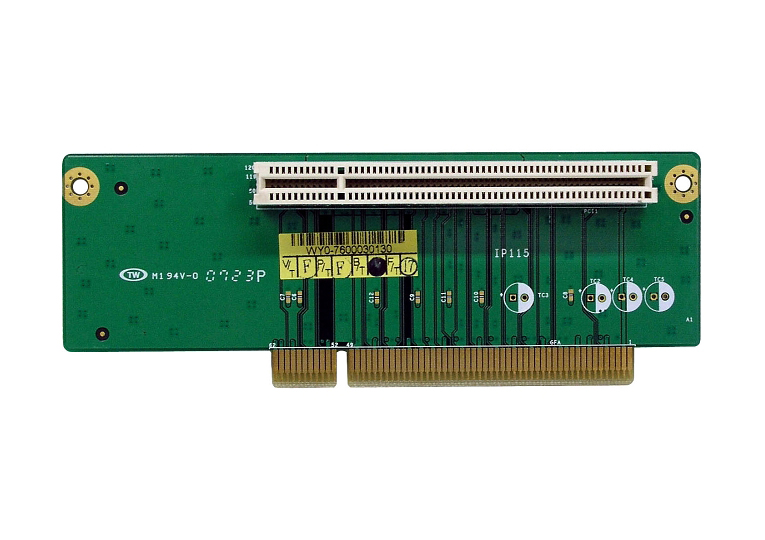

IP115

IP115

  • 139.7mm x 51.38mm
  • 1x PCI interface to PCI slot

IP116-R

IP116-R

  • 139.7mm x55.34mm
  • 1x PCI-E(x16) interface to PCI-E(x16) slot

IP118

IP118

  • 119.63mm x 64.5mm
  • 1x PCI-E(x16) interface to PCI-E(x16) slot

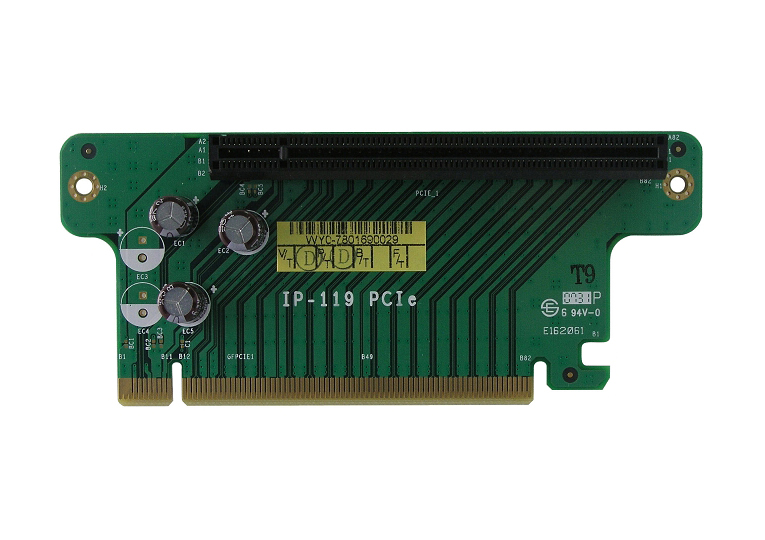

IP119

IP119

  • 118.13mm x 55.50mm
  • 1x PCI-E(x16) interface to PCI-E(x16) slot

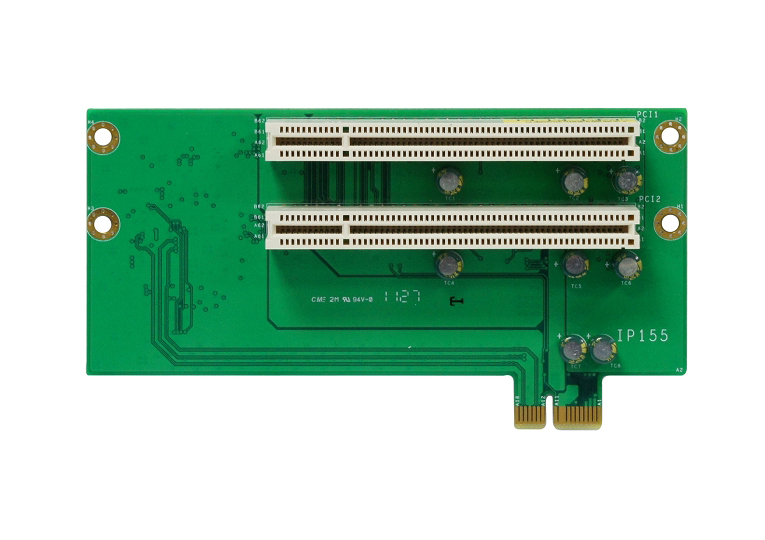

IP155

IP155

  • 139.7mm x 75.74mm
  • ASM1083 chipset
  • PCI-E(1x) interface to 2x PCI slot

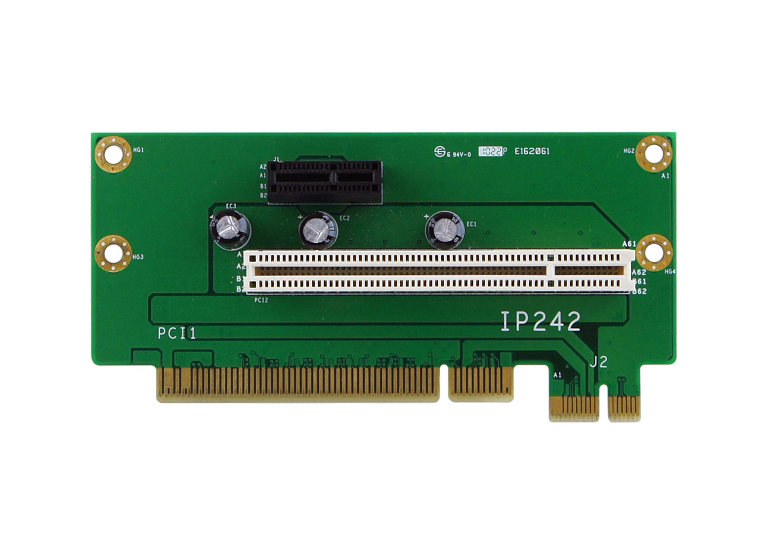

IP242

IP242

  • 130mm x 65mm
  • 1x PCI + PCI-E(x1) interface to PCI slot +
    1x PCI-E(x1)

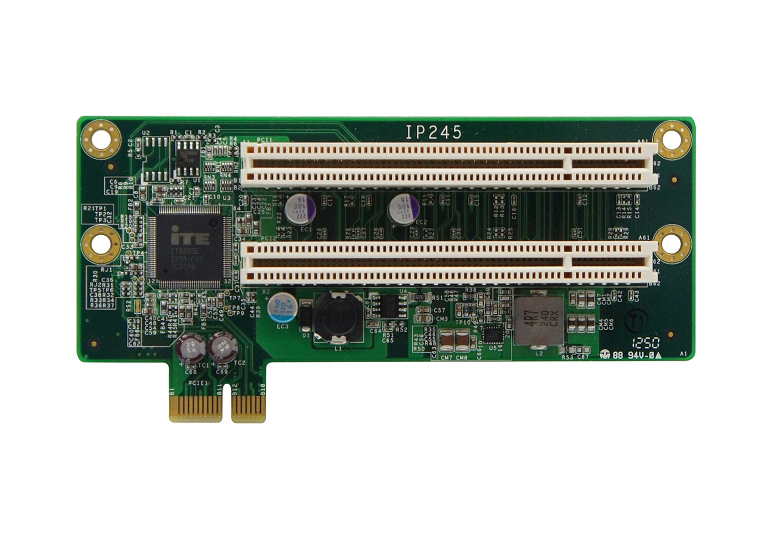

IP245

IP245

  • 130mm x 60mm
  • IT8893E chipset
  • PCI-E(1x) interface to 2x PCI slot

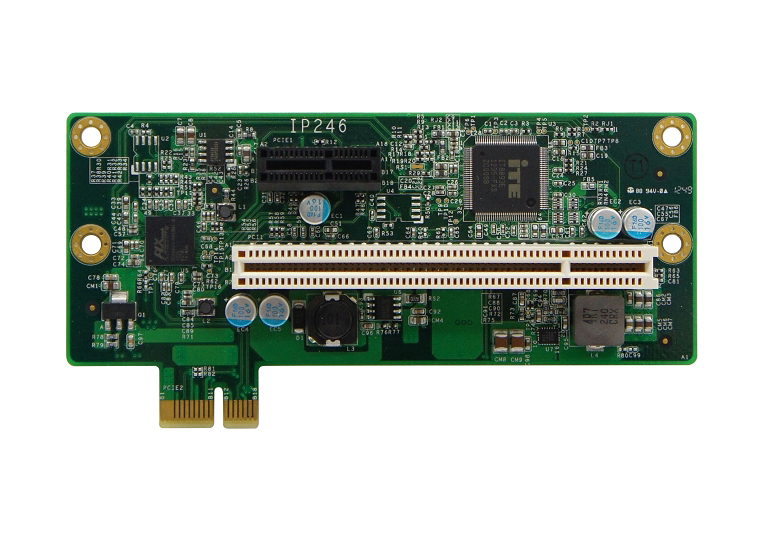

IP246

IP246

  • 130mm x 60mm
  • IT8893E & PEX8603 chipset
  • 1x PCI-E (x1) to PCI + 1x PCI-E (x1) slot

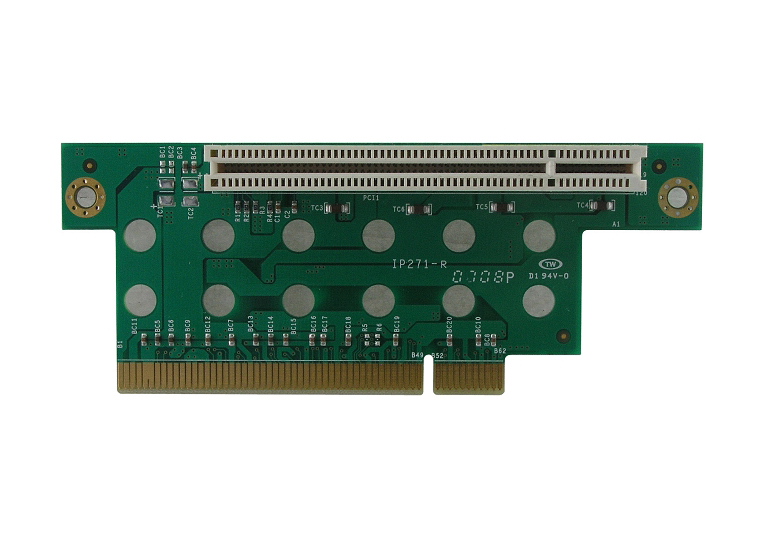

IP271

IP271

  • 129.97mm x 51.25mm
  • 1x PCI interface to PCI slot

IP245

IP245

  • 130mm x 60mm
  • IT8893E chipset
  • PCI-E(1x) interface to 2x PCI slot

IP246

IP246

  • 130mm x 60mm
  • IT8893E & PEX8603 chipset
  • 1x PCI-E (x1) to PCI + 1x PCI-E (x1) slot

IP271

IP271

  • 129.97mm x 51.25mm
  • 1x PCI interface to PCI slot

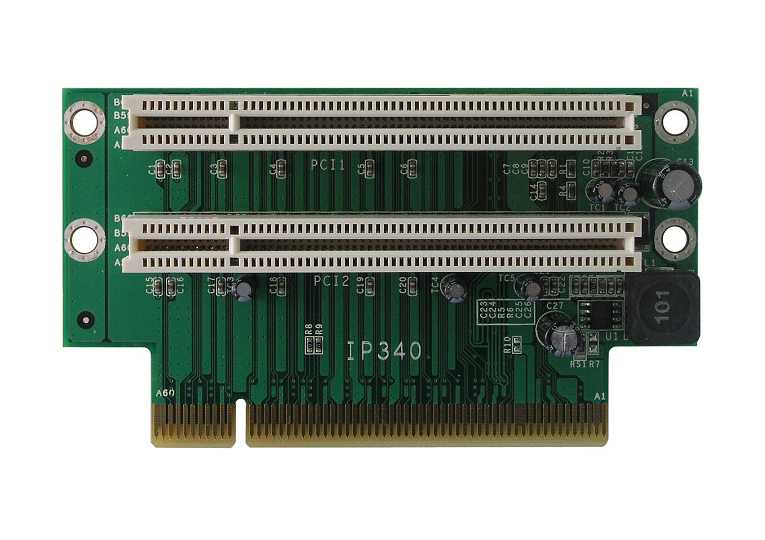

IP340

IP340

  • 110mm x 62.5mm
  • 2x PCI interface to PCI slot

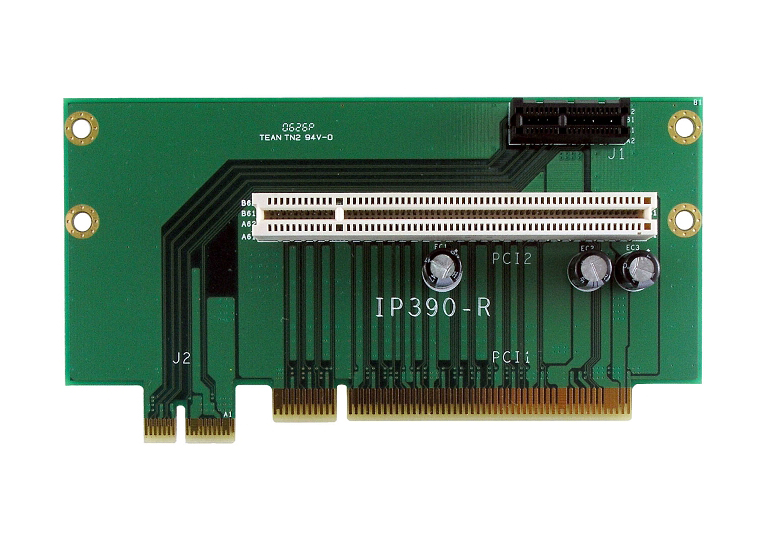

IP390-R

 IP390-R

  • 139.7mm x 75.74mm
  • 1x PCI + PCI-E(x1) interface to
    PCI slot + 1x PCI-E(x1)

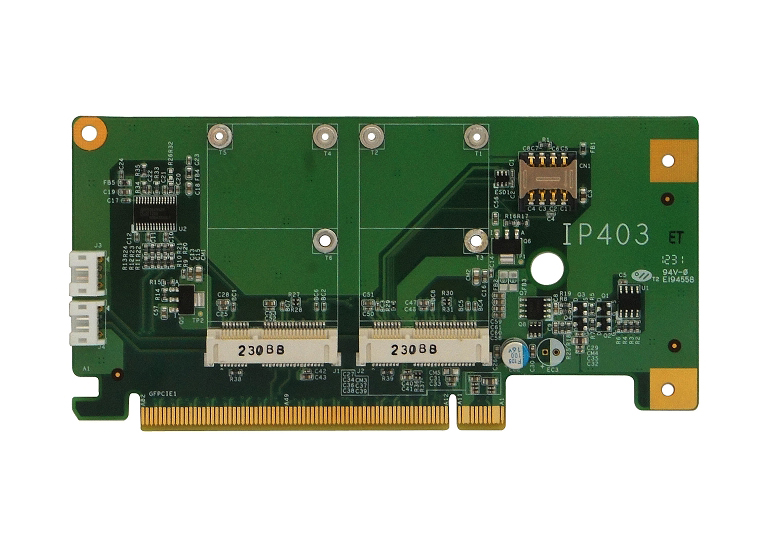

IP403

IP403

  • 144.6 mm x 68.3mm
  • 2x PCI-E(x16) interface to Mini PCI-E

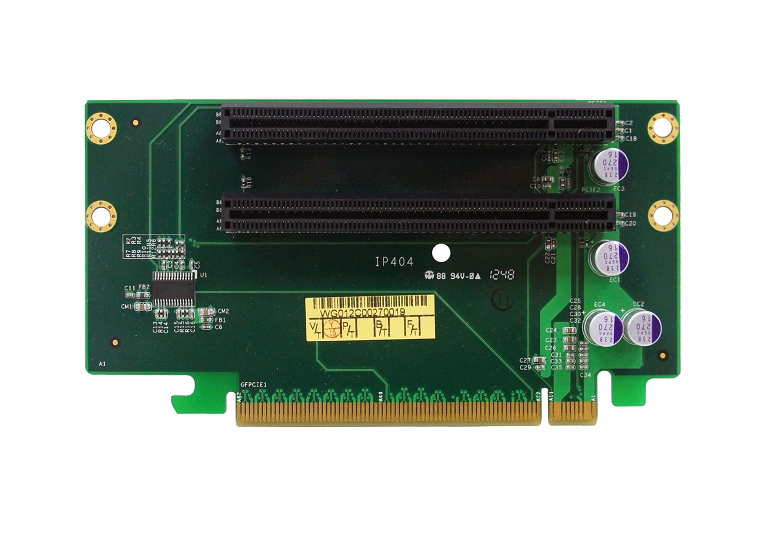

IP404

IP404

  • 139.7mm x 75.74mm
  • PCI-E(x16) interface to 2x PCI-E(x8)

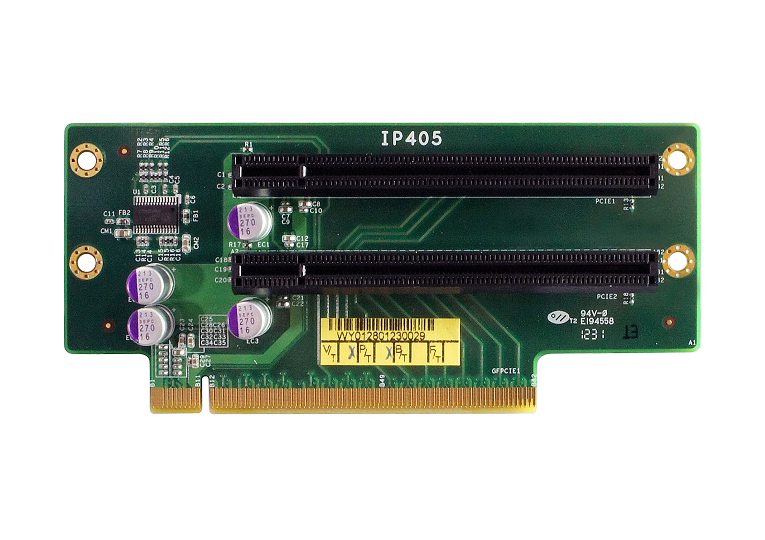

IP405

IP405

  • 139.25mm x 62.78mm
  • PCI-E(x16) interface to 2x PCI-E(x8)

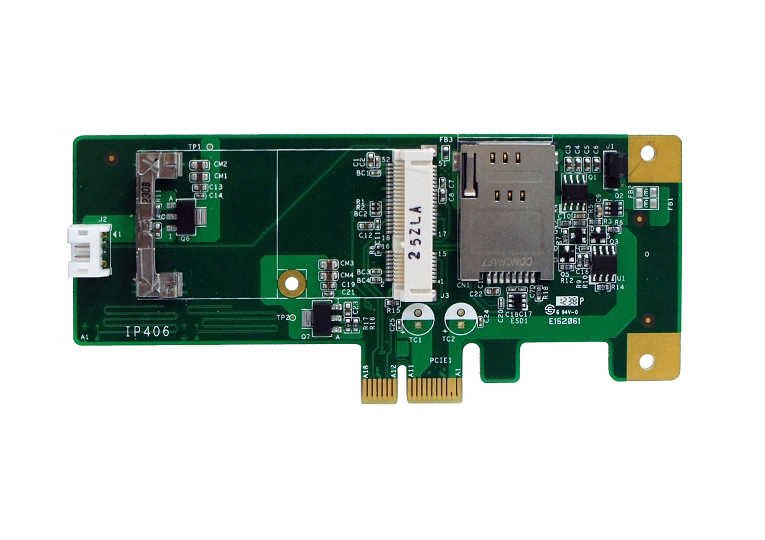

IP406

IP406

  • 123mm x 50.77mm
  • 1x PCI-E(x1) interface to Mini PCI-E +
    1x SIM card slot
