Edge AI & Intelligent System
ACS100
Advanced Compact System with Intel® Atom® N150 / N97 / Core™ 3 N355 Processors (formerly Alder Lake N / Amston Lake/ Twin Lake)
- Intel® Atom® N150 / N97 / Core™ 3 N355 Processors (formerly Alder Lake N / Amston Lake/ Twin Lake)
- Rich I/O supports 2x COM
- 4x DI, 4x DO
- USB Type-C with Alternate mode, PD up to 60W
- 2x USB 3.2, 4x USB 2.0
- Supports M.2 (2230) sockets for Wi-Fi / BT and M.2 (3052) 4G/5G communication with a Nano SIM slot
- Supports TPM 2.0 hardware security
- 19V~24V DC power input
- VESA 75x75 and 100x100mm wall mounting
- Extended operating temperature Max. from -20°C to 50°C

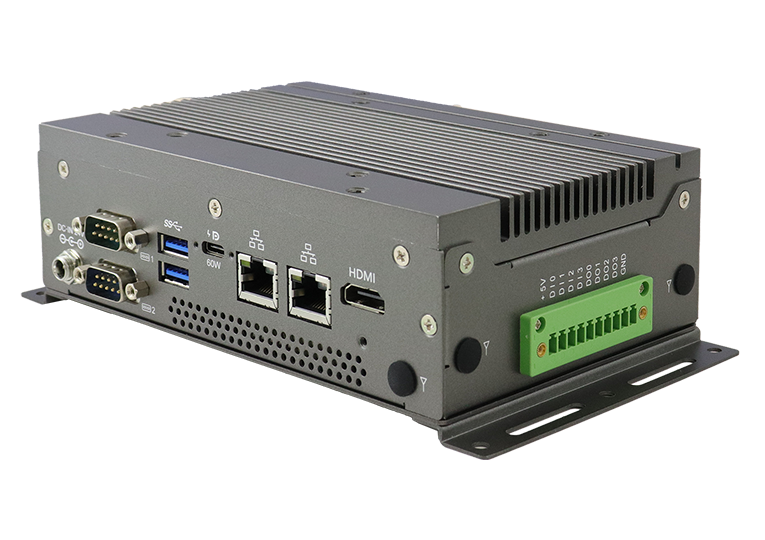

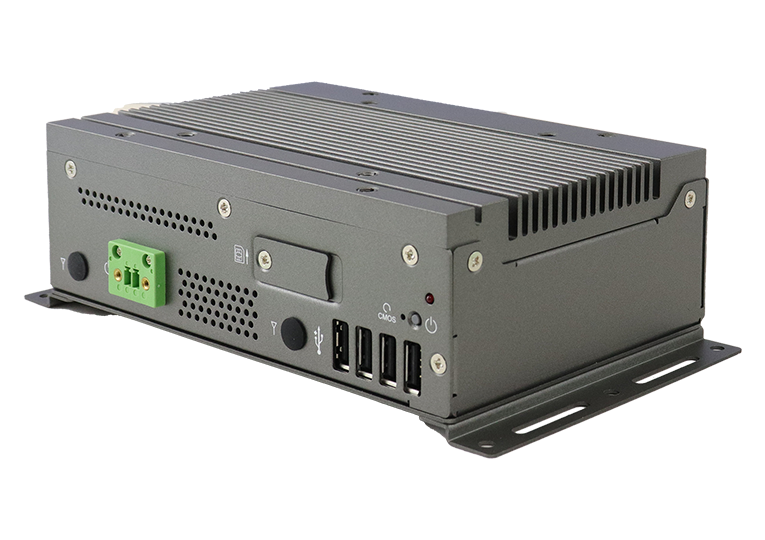

The ACS100 is a compact, high-performance edge computer optimized for automation control and industrial IoT edge applications. It features a USB Type-C port supporting DP Alternate Mode with power delivery up to 60W, offering enhanced connectivity flexibility and simplified system integration for demanding deployments.
Powered by Intel® Core™ 3 N355, Atom™ N150 or N97 processors, the ACS100 delivers competitive processing performance in a compact 167 x 110 x 54 mm form factor. It serves as a scaled-down version of the previously released ACS200 system, providing similar reliability in a smaller, space-efficient design. Its USB-C port supports both data transfer and bidirectional power delivery, effectively reducing cable complexity in confined installations. Peripheral devices such as displays, sensors, or downstream modules can be powered directly through the ACS100’s USB-C PD port, eliminating the need for additional power adapters.
The ACS100 enables connection to high-power, high-brightness industrial monitors ranging from 15.6″ to 27″ via a single USB-C cable. Compatible models include IBASE IPPL-W156, IPPL-W215, and IPPL-W270 industrial-grade monitors. The system supports a 19V to 24V DC power input and provides a rich set of I/O interfaces, including 2x COM, 2x USB 3.2, 4x USB 2.0, 3x M.2 sockets, and 1x Nano SIM slot. Combining compact design, versatile power delivery, and robust I/O connectivity, the ACS100 delivers exceptional performance and flexibility for next-generation edge computing applications.
Use Cases & Market Applications
Edge Vision Systems
Combine compute capability with camera modules or displays over USB-C, powered and controlled through a single connection.
Industrial Control & Automation
Deploy the ACS100 on factory floors, where its USB-C interface serves as a streamlined connection to actuators, HMI displays, or sensor hubs.
Smart Retail / Digital Signage
Power and drive signage displays or peripheral modules directly from the embedded system, minimizing power infrastructure requirements.
Building & Infrastructure IoT
In building automation or smart-city environments, the compact ACS100 can host gateways, computing modules, and I/O interfaces with minimal cabling.
| System Mainboard | MBP-210-N97/ MBP-210-N150 / MBP-210-N355 |
| CPU Type | Intel® Core™ 3 N355 Processor (8 Cores) Intel® Atom™ N150 Processor (4 Cores) Intel® Atom™ N97 Processor (4 Cores) |
| System Speed | N150 and N97 up to 3.6GHz, N355 up to 3.9GHz |
| Memory | 1x DDR5-4800 SO-DIMM, Max. 16GB |

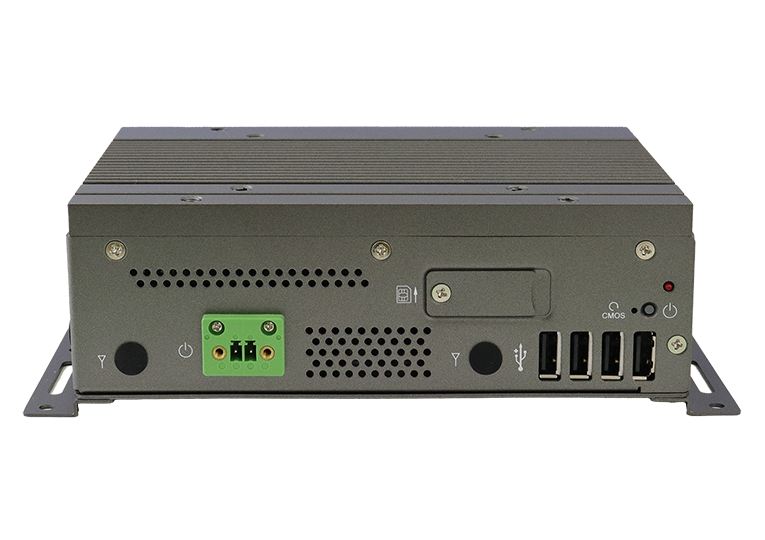

| Front Panel External I/O | 1x Power button 1x Clear CMOS button 4x USB 2.0 1x Nano SIM slot 1x Digital I/O (4-in/4-out), 5V and GND 3x Antenna holes |

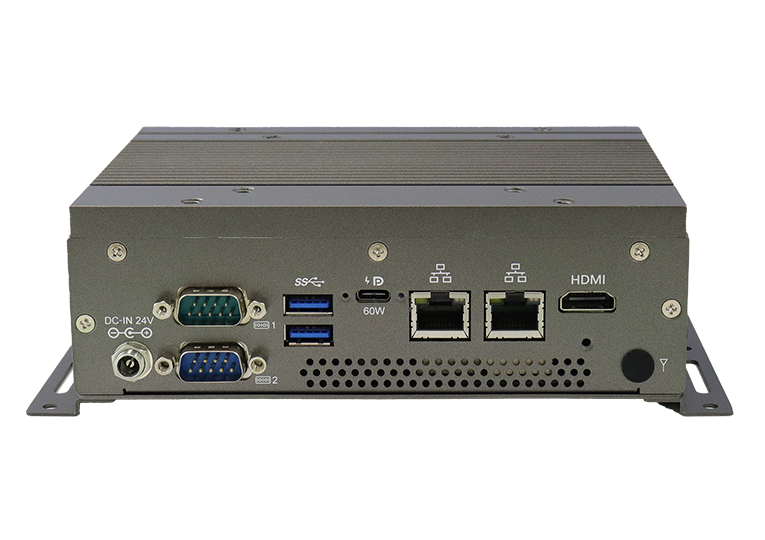

| Rear Panel External I/O | 2x USB 3.2 1x HDMI 2x DB9 for COM#1 (RS232/422/485), COM#2 RS232 Only 2x LAN 1x DC-in connector for 19V ~ 24V 1x Antenna holes |
| Expansion Slots | 3x M.2 sockets (B-key/ E-key and M-key) |
| Storage | 1x M.2 M-key (2280) |
| Construction | Aluminum & steel |
| Chassis Color | Black/Gray |
| Mounting | VESA 75x75 and 100x100 mm, Optional DIN-Rail kit |
| Dimensions | 167mm (W) x 110mm (D) x 54.15mm (H) 6.58” (W) x 4.3” (D) x 2.13” (H) |
| Weight | 1.25kg |
| Operating Temperature | N97, N355 : -20°C~40°C (-4°F~104°F) N150: -20°C~70°C (-4°F~158°F) *with airflow |
| Storage Temperature | -30~70°C (-22°F~158°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3Grms / 5~500Hz |
| Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class B |
| ACS100-N355 | Intel® Core™ i3-N355 Processor, 8GB DDR5 SO-DIMM, 128GB SSD, USB-C PD 60W, w/ 120W power adaptor |
| ACS100-N150 | Intel® Atom™ N150 Processor, 8GB DDR5 SO-DIMM, 128GB SSD, USB-C PD 60W, w/ 120W power adaptor |
| ACS100-N97 | Intel® Atom™ N97 Processor, 8GB DDR5 SO-DIMM, 128GB SSD, USB-C PD 60W, w/ 120W power adaptor |
| DATASHEETS | ACS100 |
| CATALOGS | Intelligent Systems (Vol.25.01) |
| USER'S MANUALS | ACS100 V1.0 |
| DRIVERS - SYSTEMS | ACS100 Driver DVD |
