Edge AI & Intelligent System
CMI211-1005
Edge AI Computer with Intel® Core™ Ultra 9/7/5 200 U/H Series
- Intel® Core™ Ultra 200H series mobile onboard processors, up to 65W
- 2x DDR5 cSO-DIMM, Max. 96GB, Non-ECC
- Supports 2x Type-C, 1x HDMI and 1x DisplayPort(DP++)
- LAN 1: Intel® I226LM, supports 2.5G and iAMT
- LAN 2 / LAN 3: Intel® I226V, supports 2.5G only
- 4x USB 3.2, 2x USB Type-C, 4x USB 2.0, 2x COM
- supports 1x PCI-E (x4) [Gen4.0]; 3x M.2 (E-Key @2230 and 2x M-Key @2280 & 2242 )
The CMI211-1005 is a compact and expandable edge AI computer powered by Intel® Core™ Ultra 200H Series processors. Integrating CPU, GPU, and NPU computing engines, the system delivers up to 99 TOPS of AI performance to accelerate real-time inference, intelligent data processing, and decision-making at the edge. Its compact form factor makes it well suited for smart manufacturing, machine vision, industrial automation, intelligent retail, and other space-constrained AI applications.
Engineered to accelerate the development of intelligent edge solutions, the CMI211-1005 supports up to 96GB of DDR5 memory and features a PCIe Gen 4 x4 expansion slot for AI accelerators, frame grabbers, communication cards, and other application-specific modules. Two M.2 M-key sockets support high-speed NVMe storage, while an additional M.2 E-key socket enables wireless connectivity. This flexible architecture allows system integrators to tailor and scale the platform to meet diverse performance, storage, and connectivity requirements.
The CMI211-1005 also provides comprehensive I/O connectivity, including three 2.5GbE LAN ports, dual USB Type-C ports, HDMI, DisplayPort, multiple USB interfaces, and serial ports for connecting cameras, sensors, displays, and industrial equipment. Combining integrated AI acceleration, high-speed networking, flexible expansion, and a compact industrial design, the CMI211-1005 gives system integrators a reliable and scalable platform for building next-generation edge intelligence solutions.
| System Mainboard | MI1005AF |
| CPU Type | Intel® Core™ Ultra 200H series mobile Processors |
| System Speed | Up to 5.4 GHz (Core™ Ultra 9 285H) |
| Memory | 2x DDR5 SO-DIMM sockets, up to DDR5-6400 cSO-DIMM memory module, Max. 96GB |
| AI Inference Computing Power | 36 pTOPS |

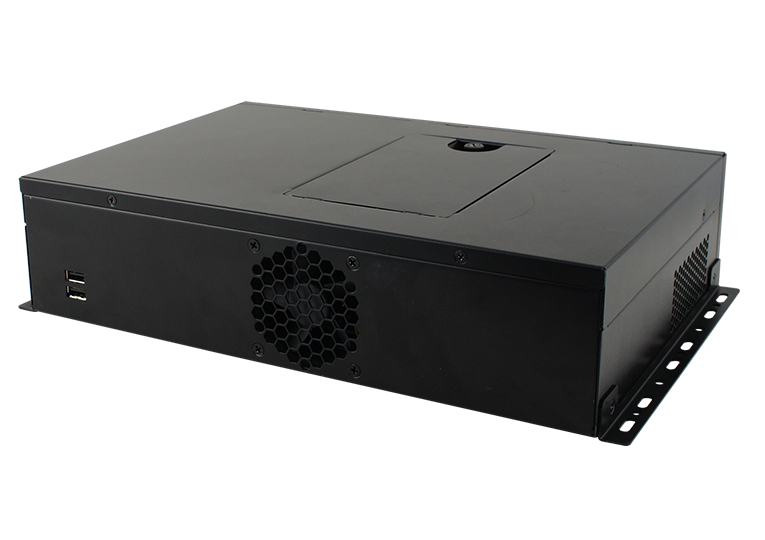

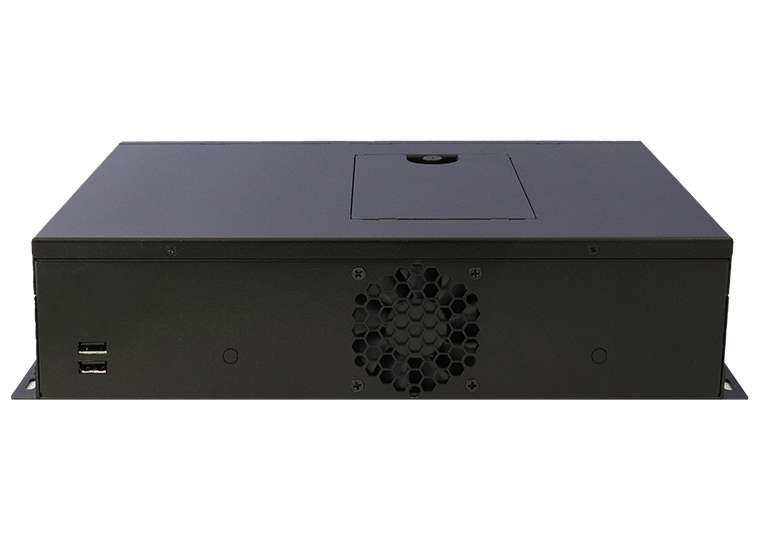

| Front Panel External I/O | 2x USB 2.0 ports 2x Antenna holes |

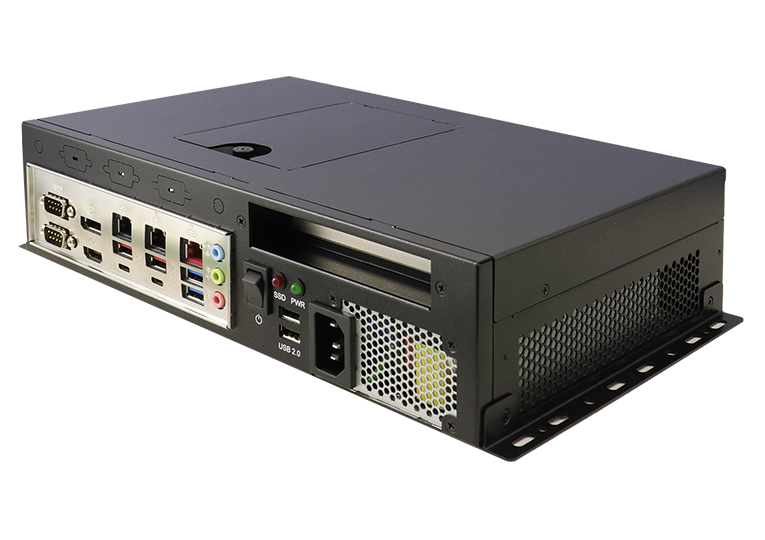

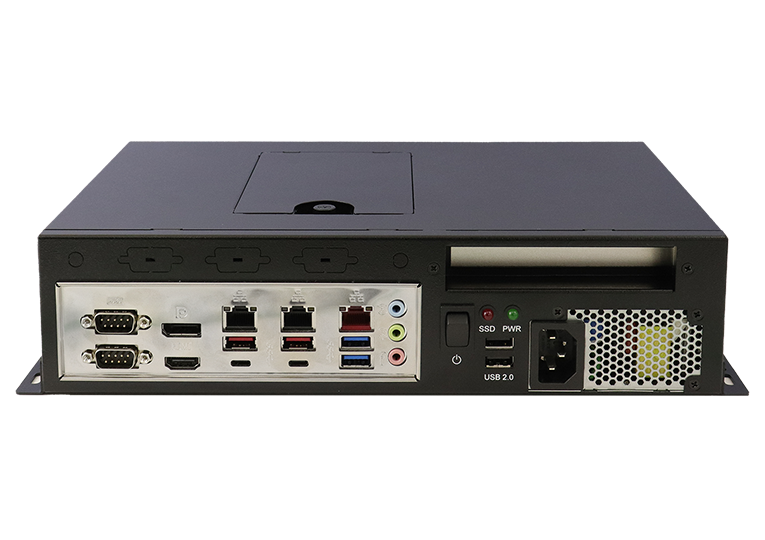

| Rear Panel External I/O | 1x AC-inlet 1x Power switch (rocker switch) 1x Power LED indicator 1x Storage LED indicator 2x USB2.0 ports 2x DB9 for COM#1/COM#2 (COM#1 with RS232/422/485, select from BIOS) 1x DP + 1 x HDMI 2x (USB Type-C + USB3.2 Type-A + RJ45 connector) 1x (Dual USB3.2 Type-A + RJ45 connector) 1x triple type jack for Audio connector 2x Antenna holes |
| Expansion Slot | 1x PCI-E (x4)[Gen5] expansion slot 1x E-Key E2230, 2x M-Key (M2280 & M2242) |
| Storage | 2x M.2 (M2280 & M2242) M-Key socket for SSD (PCI-E Gen4 signal) 1x 2.5” removable device bay for SSD |
| Power Requirement | ATX power supply |
| Power Supply | Industrial 250W ATX power supply Input voltage: 100V ~ 240V Input frequency: 47Hz ~ 63Hz Compatible with IEC62368-1/EN62368-1 |
| Construction | SECC |
| Chassis Color | Black |
| Mounting | Wall mount & Desktop |
| Weight | 3.2 kg |
| Dimensions | 300mm (W) x 205mm (D) x 72mm (H) 11.81” (W) x 8.07” (D) x 2.83” (H) |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5% ~ 90% @45C (non-condensing) |
| Vibration | Non-operating : 1.0 grms / 5~500Hz / random Operating : 0.25 grms / 5~500Hz / random |
| Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
| Certification | CE / LVD / FCC Class B |
| Operating System | Windows 11 |
| CMI211-1005AFM | Barebone system with MI1005AF+ IP201 riser card, w/o SSD, memory, w/ 250W PSU, 2.5" storage holder, 1x PCI-E (x4) expansion slot (RoHS2) |
| DATASHEETS | CMI211-1005 |
| CATALOGS | Edge AI Products (Vol.25.12) |
| USER'S MANUALS | CMI211-1005 V1.0 (IBASE Server) CMI211-1005 V1.0 (Google Drive) |
| DRIVERS - SYSTEMS | CMI211-1005 Driver DVD |
