Digital Signage Player
SW-602-N
Intel® Core™ Processor Waterproof Fanless Signage Player with 2x HDMI
- iSMART 3.0 intelligent energy-saving & Observer remote monitoring technologies
- 11th Gen Intel® Core™ / Celeron® U-Series processors
- 2x DDR4-3200, SO-DIMM, dual channel , Max. 64GB
- 2x HDMI 2.0 (M25 connector)
- 2x USB3.1 (M12), 1x Gigabit LAN (M12)
- 1x M.2 M-Key (2280)
- Wide-range operating temperature from -40°C ~ 70°C
- Waterproof and fanless design with IP65 rating
| System Mainboard | MBD603-i5 |
| CPU | Intel® Core™ i5-1145GRE Processor (8M Cache, up to 4.10 GHz) |
| CPU Socket | BGA-1449 package |
| Chipset | SoC Integrated |
| Memory | 2x DDR4-3200, SO-DIMM, dual channel , Max. 64GB |
| Graphics | integrated |
| LAN | 1x Gigabit LAN (M12) |
| Expansion Slots | 1x M.2 E-Key (2230) (2x PCI-E x1; USB 2.0) 1x M.2 B-Key (3052) (PCI-E x1; USB 2.0; USB 3.0) 1x internal SIM slot 1x M.2 M-Key(2280) (for capture card) (supports PCI-E Gen III x4 (NVMe SSD) |

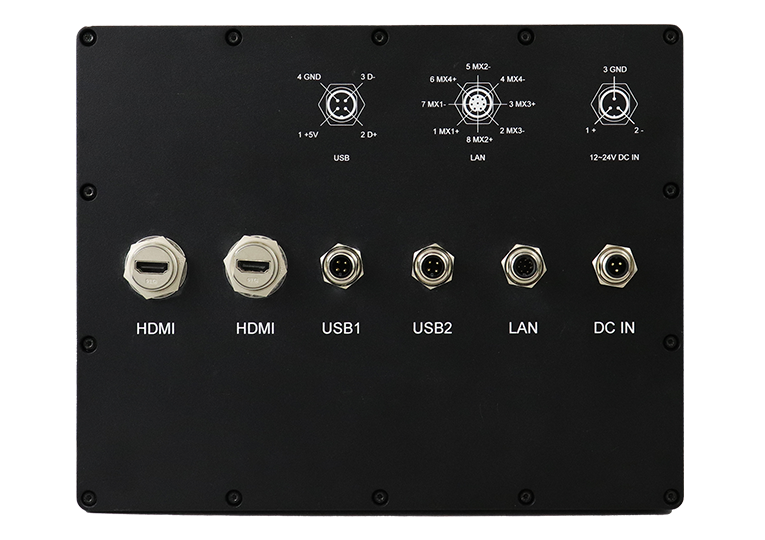

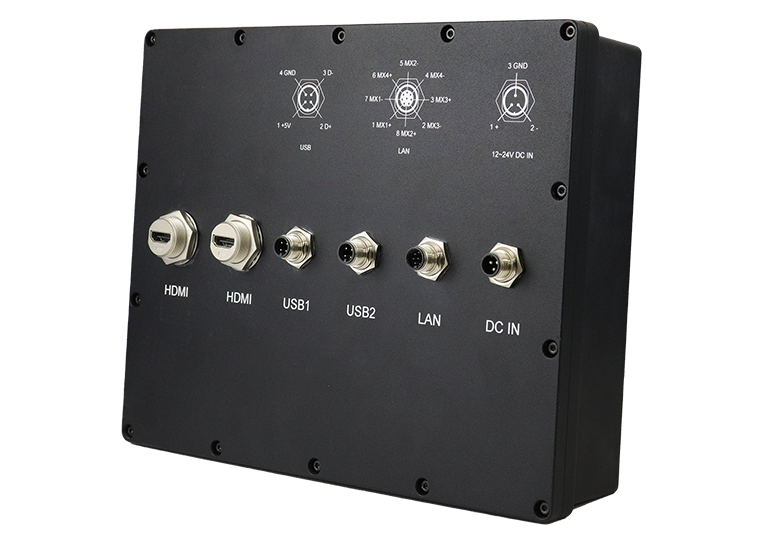

| I/O Interface | 2x HDMI2.0 (M25 connector) 2x USB3.1 (M12) 1x Gigabit LAN (M12) 1x DC power (M12) |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | 12V DC-IN |

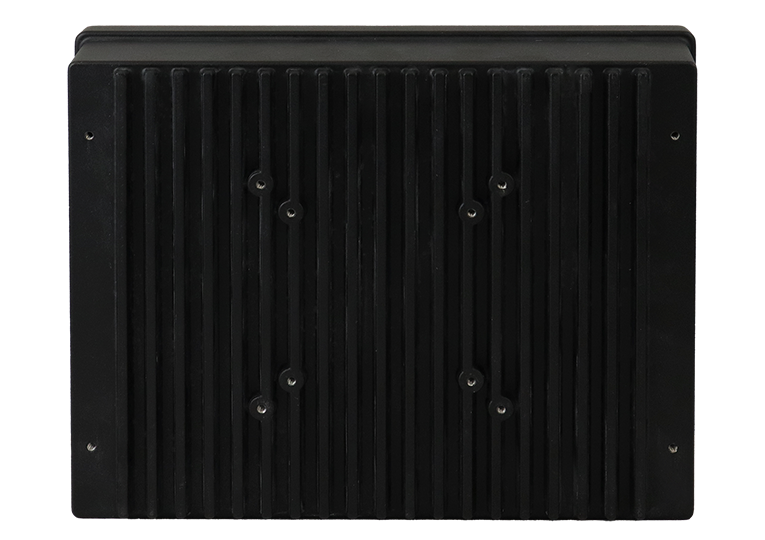

| Construction | Aluminum die-casting and heavy-duty steel |
| Weight | 3.6kgs (7.9lbs) |
| Chassis Color | Black |
| Storage | M.2-2280 SATA3 128GB |
| Power Supply | 84W power adapter (optional) |
| Mounting | Wall mount |
| Dimensions | 217mm(W) x 274mm(D) x 86.5mm(H) |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Vibration | 3 grms / 5 ~ 500Hz / random operation |
| Certification | CE, FCC Class-B |
| Operating System | Win10 64-bit Enterprise |
| SW-602-N | Signage Player with Intel® Core™ i5-1145GRE Processor, 2x DDR4-3200, SO-DIMM, dual channel , Max. 64GB, w/o power adapter |
| DATASHEETS | SW-602-N |
| CATALOGS | Digital Signage Players (Vol.25.05) |
