Digital Signage Player


AMD Ryzen™ Embedded V2000 Series Processor Signage Player with AMD Vega GPU and 4x HDMI

  • AMD Ryzen™ Embedded V2000 Series Processors
  • Vega GPU with up to 7 Compute Units
  • 4x HDMI 2.0 with independent audio output support
  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • Built-in CEC and hardware EDID emulation functions with the software setting mode
  • 2x DDR4-3200 SO-DIMM, dual channel, Max. 64GB
  • 1x M.2 B-Key for 5G or LTE options
  • 1x M.2 E-Key for Wi-Fi, Bluetooth or capture card options
  • 1x M.2 M-Key for storage
  • Supports TPM 2.0 and watchdog timer
  • Slim and segregated flow ventilation design
  • 5G
  • iSMART
  • Observer
  • Segregated Airflow Design
  • AMD Ryzen Embedded V-Series

The SI-334 is a digital signage player harnessing the performance of an AMD Ryzen™ Embedded V2748B with Radeon™ Graphics that provides 40 percent better graphics output over the previous generation. The compact video wall player enhances in-store shopping experience in modern retail with eye-catching, engaging displays.

Ideal for multi-display applications in public spaces, the 5G-compatible SI-334 offers breakthrough 4K graphics performance that supports 7,680 x 4,320 resolution in a 2x2 video wall setting, 15,360 x 2,160 pixels in 4x1 menu boards, or 3,840 x 8,640 resolution in a 1x4 display setting. Four HDMI 2.0 outputs come with independent audio and configurable using the AMD Multi-Display Eyefinity Technology. The platform also features HDMI-CEC for display on/off control through HDMI ports and EDID emulation that prevents image loss or defect Windows display due to cable connection issues or unrecognized display.

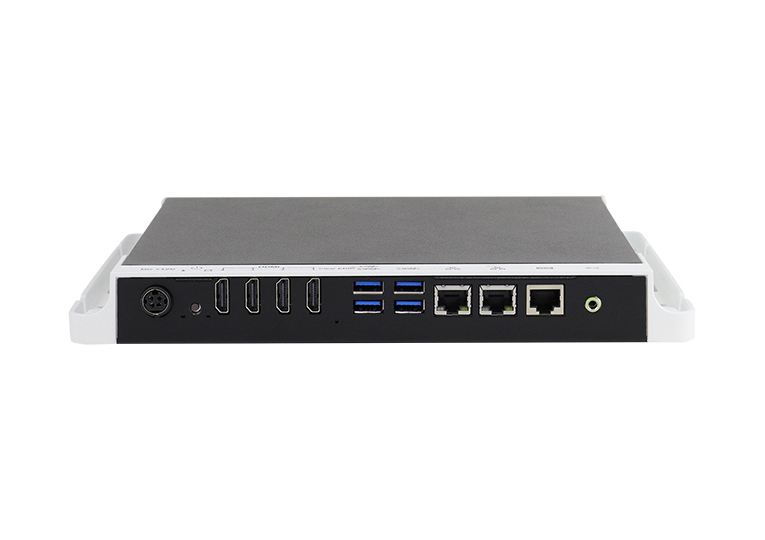

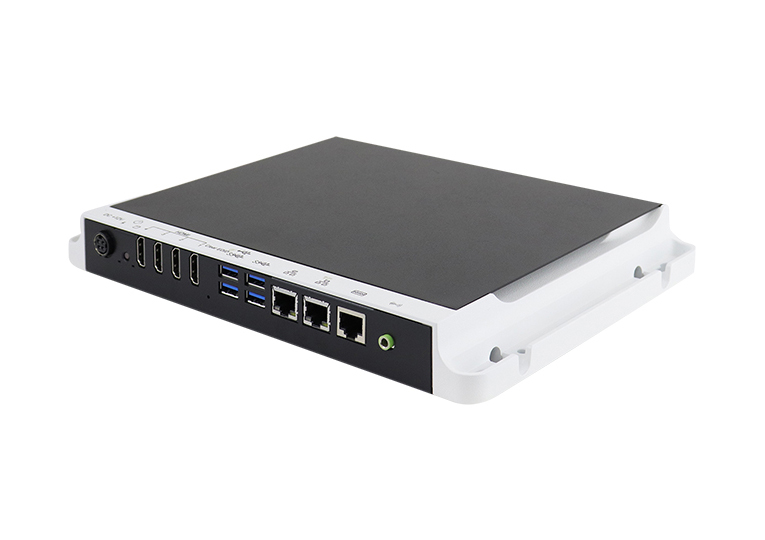

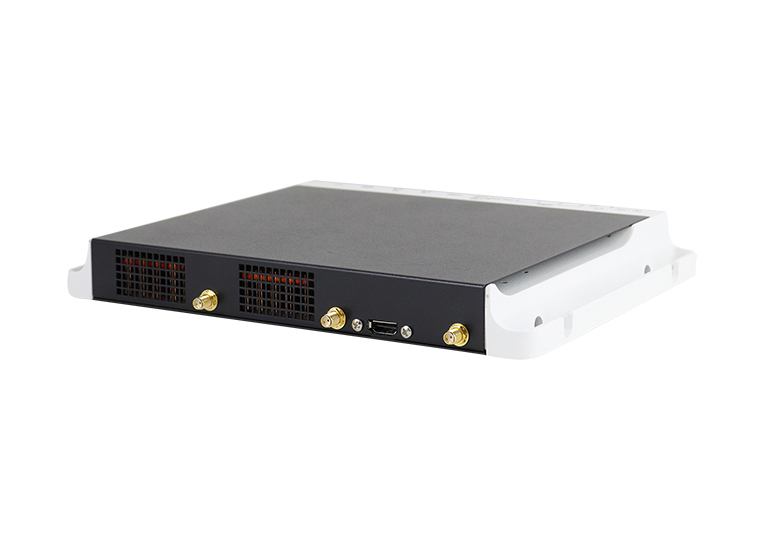

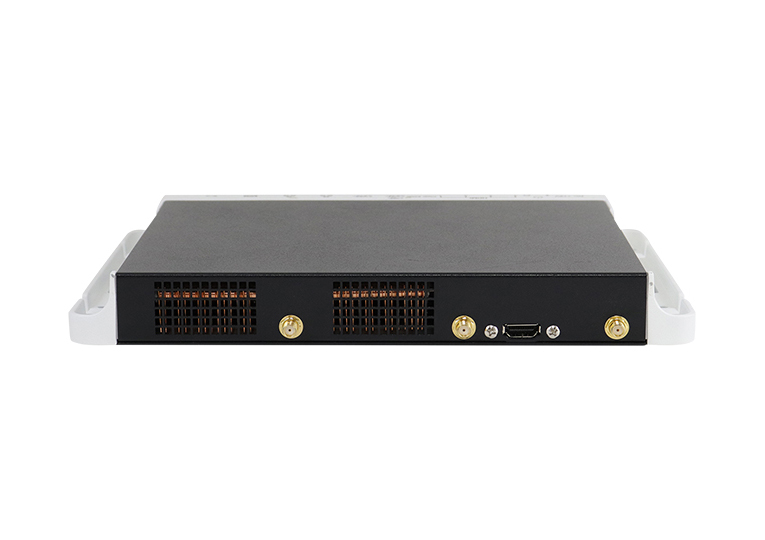

SI-334 Digital Signage Player

SI-334 Introduction Video

Measuring 269(w) x 193(d) x 31.5(h) mm, the industrial-grade SI-334 is designed with segregated flow ventilation for increased reliability and 24/7 operation. It comes standard with 2x 4GB DDR4 memory, 128GB M.2 storage, and 150W power adaptor, as well as iSMART energy-saving and Observer remote monitoring technologies. Both Windows 10 IoT Enterprise and Linux Ubuntu are supported.

All AMD Ryzen Embedded V2000-Based Solutions from IBASE
System Mainboard MBD334
CPU AMD Ryzen™ Embedded V2000 Series Processors
CPU Socket FP6 BGA package, 25mm x 35mm
Chipset SoC integrated
Memory 2x DDR4-3200, SO-DIMM, Dual channel, Max. 64GB
Graphics Next-gen AMD Vega GPU integrated
LAN 2x Realtek RTL8111H-CG Gigabit LAN controller
Expansion Slots 1x M.2 E-Key (2230)
1x M.2 B-Key (3052)
1x UIM/SIM card slot
I/O Interface 4x HDMI 2.0 with hardware EDID emulation & CEC function
3x USB 3.1 @gen 2 (USB Type-A)
2x RJ45 for Gigabit LAN
1x RJ45 for RS-232 serial port
1x Audio connector for Line-out
1x Power button
1x Power jack (+12V DC)
2x Power/HDD LED
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +12V DC-in
Construction Aluminum + SGCC
Weight 2.1 kgs (4.63 Ibs)
Chassis Color Black & white
Storage 1x M.2 M-Key (2280)
Power Supply 150W power adaptor
Mounting Slim design with wall mounting holes
Dimensions 269mm(W) x 193mm(D) x 31.5mm(H)
10.59" (W) x 7.59" (D) x 1.24" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Vibration M.2: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class A, UKCA, cULus, CCC
Operating System Win11 IoT Enterprise(64-bit)
Win10 IoT Enterprise(64-bit)
Linux Ubuntu(64-bit)
SI-334 Signage Player with MBD334 w/ AMD Ryzen™ Embedded V2748 4.25GHz/2.9GHz; 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB, 150W power adaptor
SI-334-46 Signage Player with MBD334 w/ AMD Ryzen™ Embedded V2546, 3.95GHz/3.0GHz; 2x 4GB DDR4-3200 SO-DIMM memory, M.2 128GB, 150W power adaptor
SI-MK3A Mounting bracket
SI-1U-AD 1U Rackmount kit
HDMI Cable Holder SI-334 HDMI bracket kit
