Digital Signage Player
SI-663-N
13th/12th Gen Intel® Core™ Processor Fanless Signage Player with Intel® SoC Integrated Graphics and 1x HDMI 2.0/1x DP1.4/1x DVI-D
- iSMART intelligent energy-saving technology - enables power on/off scheduling and power resume functions
- Supports 13th/12th Gen Intel® Core™ processor
- 1x HDMI 2.0 / 1x DP++ 1.4 / 1x DVI-D
- 2x DDR5-4800 SO-DIMM, dual channel, Max. 64GB
- 1x M.2 B-Key (3052) for 5G connectivity
- 1x M.2 E-Key (2230) for WiFi, Bluetooth or capture card options
- TPM 2.0, vPro and watchdog timer
- Industrial-grade robust, fanless and compact design
The SI-663-N digital signage player features 13th/12th Gen Intel® Core™ processors (formerly Raptor Lake PS / Alder Lake PS) and Intel® Iris® Xe display chips, delivering unparalleled performance, energy efficiency, and exceptional visuals.
It showcases iSMART energy-saving smart control and Observer advanced remote monitoring technologies and offers versatile connectivity, including HDMI2.0b, DP1.4++, DVI-D interfaces, and USB 3.2 ports. The systems provide multiple M.2 expansion options for storage, 5G/LTE, WiFi, and Bluetooth capabilities, enhancing their customization potential. Added security and reliability are assured with TPM 2.0, vPro, and a watchdog timer. A distinctive feature is the Peripheral Device Power Control (PDPC), optimizing power efficiency for connected peripherals.
The SI-663-N features an industrial-grade, fanless, and compact design for challenging environments and versatile installation scenarios and weighs 1.6 kg. It comes with Intel Core i7-1265UL processor, 8GB DDR5 4800 SO-DIMM memory and 256GB M.2 storage.
The fanless signage player is certified with CE, FCC Class B, CCC, and run on Windows 10 IoT Enterprise (64-bit) and Linux Ubuntu (64-bit), catering to different operating system needs.
| System Mainboard | MBD663 |
| CPU | 13th/12th Gen Intel® Core™ i / Celeron™ series (Raptor Lake PS / Alder Lake PS) processor TDP<=28W |
| CPU Socket | LGA1700 |
| Chipset | Integrated |
| Memory | 2x DDR5 4800 SODIMM / Max. = 64GB (ECC not supported) |
| Graphics | Iris@ Xe, up to 96EU |
| LAN | 1x Gigabit LAN (Isolation/PXE support) (Intel® 226LM 2.5Gb with LAN Wakeup) |
| Expansion Slots | 1x M.2 E-Key (2230) (WiFi-6E support) (2x PCI-E x1, USB 2.0) 1x M.2 B-Key (3052) (PCI-E x1; USB 2.0, USB 3.x) (supports Sierra LTE module), refer to MBD603 1x UIM / SIM card slot 1x M.2 M-Key (2280) (PCI-E x4) 1x M.2 NVMe (PCI-E3.0 x4 / SATA) |

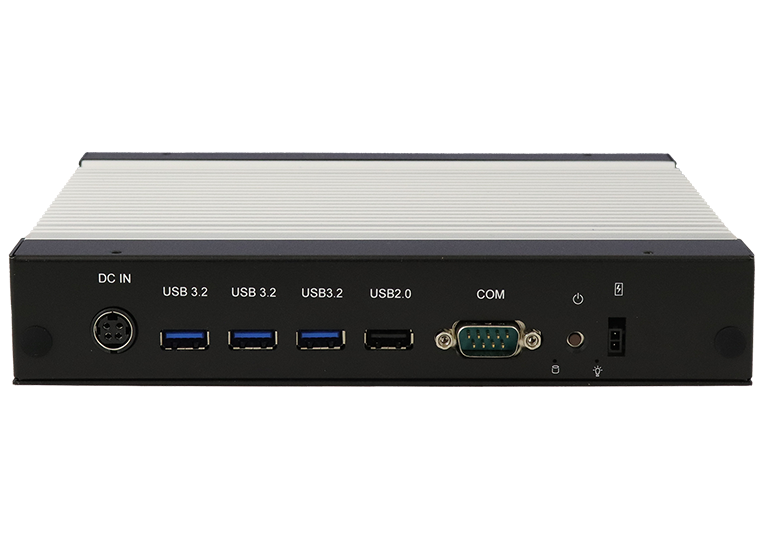

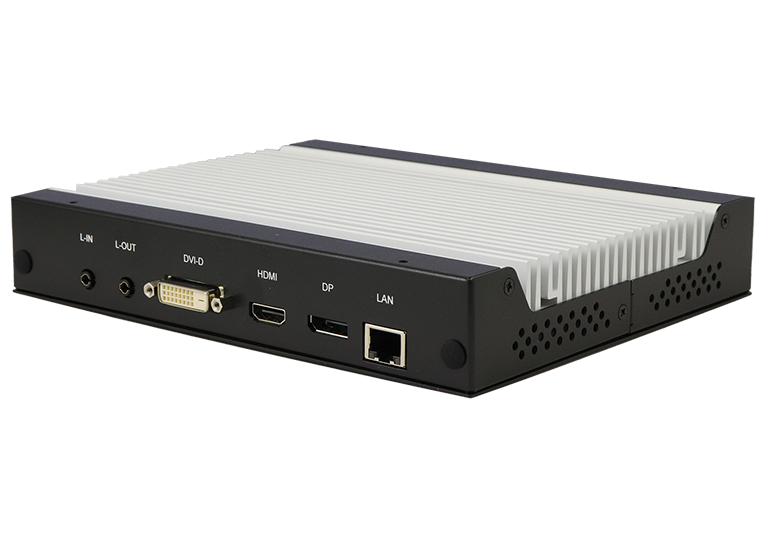

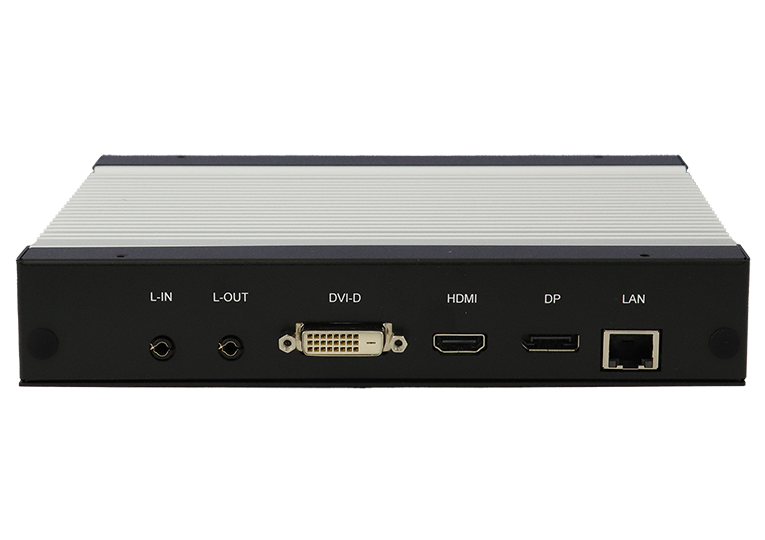

| I/O Interface | 1x HDMI 2.0 / 1x DP++ 1.4 / 1x DVI-D 3x USB 3.2 (USB Type-A) 1x USB 2.0 (USB Type-A) 1x RJ45 for Gigabit LAN 1x DB9 for RS232 serial port 2x Audio connectors for Line in/Line out 1x Power button 1 x Power switch connector 1x Power jack (+12V DC) 2x LED for power & storage |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2…255 (sec/ min) |
| Power Requirement | +12V DC |
| Construction | Aluminum + SGCC |
| Weight | 1.6Kg(3.5Ibs) |
| Chassis Color | Black & White |
| Storage | 1x M.2 M-key (2280) |
| Power Supply | 150W power adapter |
| Mounting | Standard system bracket |
| Dimensions | 175mm(W) x 212mm(D) x 37mm(H) |
| Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| Storage Temperature | -20° ~ 80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Vibration | M.2: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC Class-B, cULus & CCC |
| Operating System | Windows 10 IoT Enterprise RS5 64-bit Linux Ubuntu 64-bit |
| SI-663-N | Intel® Core™ I7-1265UL Processor, 2x 8GB DDR5 4800 SO-DIMM memory, M.2 256GB and 150W power adapter |
| SI-MK3 | VESA bracket |
| DATASHEETS | SI-663-N |
| CATALOGS | Digital Signage Players (Vol.23.12) |
| USER'S MANUALS | SI-663-N V1.0a |
| DRIVERS - SYSTEMS | SI-663-N Driver DVD |
