Digital Signage Player


7th/6th Gen Intel® Core™ Mobile Processor Fanless Signage Player with Intel® HD Graphics 530 and 3x HDMI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • iAMT(11.0), TPM1.2, vPro and watchdog timer
  • 7th/6th Gen Intel® Core™ Mobile Processors
  • Integrated Intel® HD Graphics 530
  • 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
  • 1x HDMI 2.0 + 2x HDMI 1.4 with independent audio output
  • Built-in hardware EDID emulation function
  • 1x M.2 B-Key (3042) for storage or 4G LTE options
  • 1x M.2 M-Key (2280) for storage
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G LTE

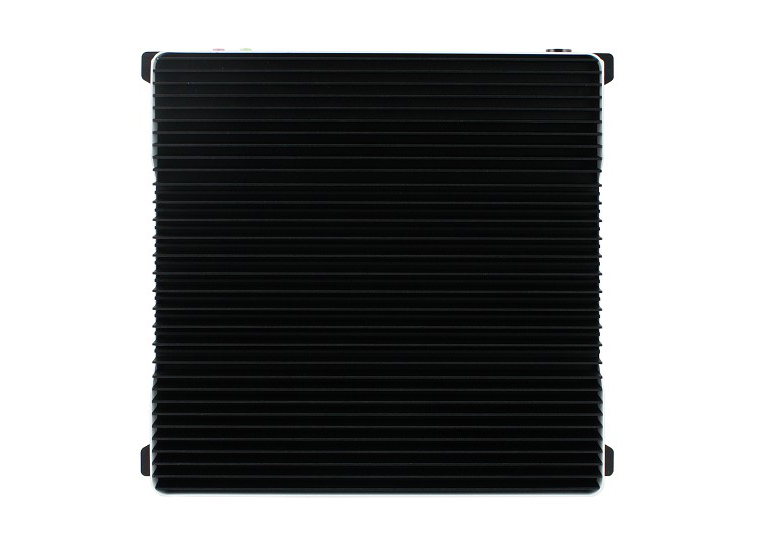

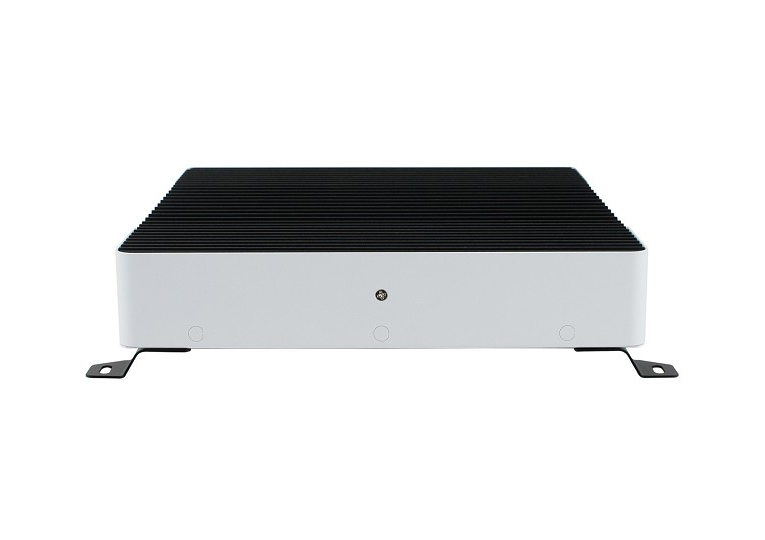

  • Compact and fanless design
  • iSMART
  • Observer
  • Fanless
  • Computex d&i 2017

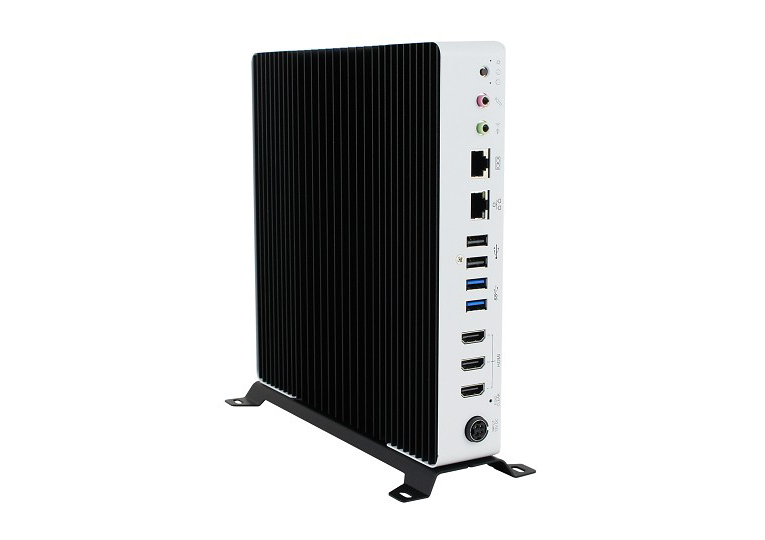

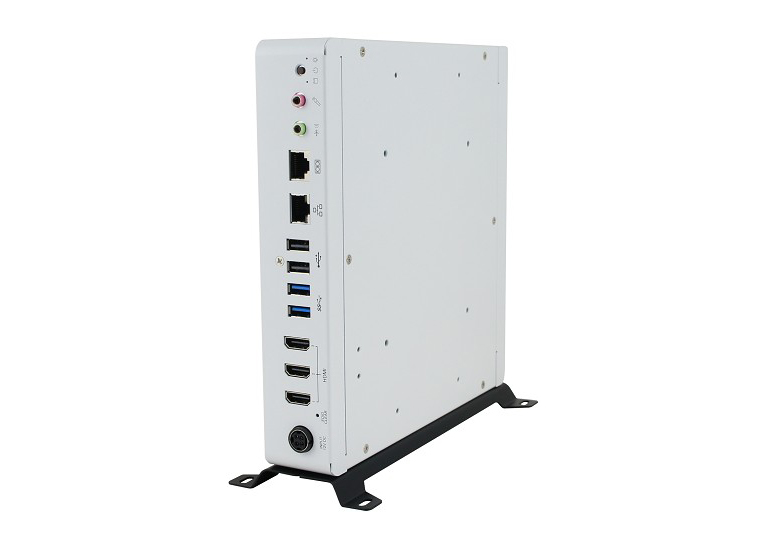

The SI-623-N signage player is based on the 7th/6th Gen Intel® Core® processor and supports up to 4K (3840 x 2160) resolution in each display channel. Slim yet powerful, SI-623-N comes with a pair of wall-mount brackets and can comfortably fit behind multi-displays or video walls deployed in places across every market such as hospitality, retail and public transportation. To deliver a high level of graphics performance and provide a more engaging visual experience for audiences, it is powered by the integrated Intel HD Graphics 530 via 1x HDMI 2.0 and 2x HDMI 1.4 display interface.

The SI-623-N features Intel® AMT 11.0 designed to help system admins to remotely manage and secure the platform, and iSMART technology for on/off auto scheduling and power resume functions. It also comes on board with hardware EDID simulation and software setting mode to prevent screen convergence problems and issues due to cable disconnection or failure to identify software settings. “The internal EDID on SI-623-N eliminates the need to adopt an array of dongles that fake the electronic display ID and state of display connection from the system. It also makes it unnecessary the deployment of additional players to address EDID issues,” said Archer Chien, Senior Manager of digital signage product line at IBASE.

SI-623-N is equipped with numerous storage and I/O connectivity including 2x DDR4 SO-DIMM sockets with up to 32GB capacity, 1x RJ-45 for Gigabit LAN, 1x RJ45 for RS-232, 2x USB 3.0, 2x USB 2.0, 1x M.2 B key, 1x M.2 M-key, and 1x 2.5” SATA HDD/SSD for storage, 1x SIM and 1x Mini PCI-E slot. The standard SI-623-N model is supplied with 8GB system memory, 128GB SSD and 84W power adaptor.

System Mainboard MBD623
CPU 7th/6th Gen Intel® Core™ Mobile Processors TDP <=35W
CPU Socket FCBGA1440
Chipset HM170/ QM170 PCH
Memory 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
Graphics Intel® HD Graphics 530
LAN 1x Intel® I219LM Gigabit LAN controller for QM170
1x Intel® I219V Gigabit LAN controller for HM170
Expansion Slots 1x M.2 B-Key (3042)
1x M.2 M-Key (2280)
1x Mini PCI-E (full-size)
1x SIM card slot

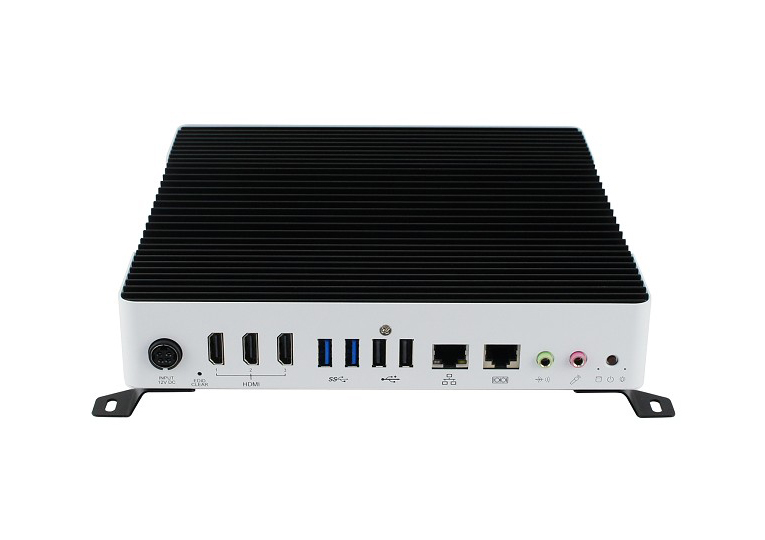

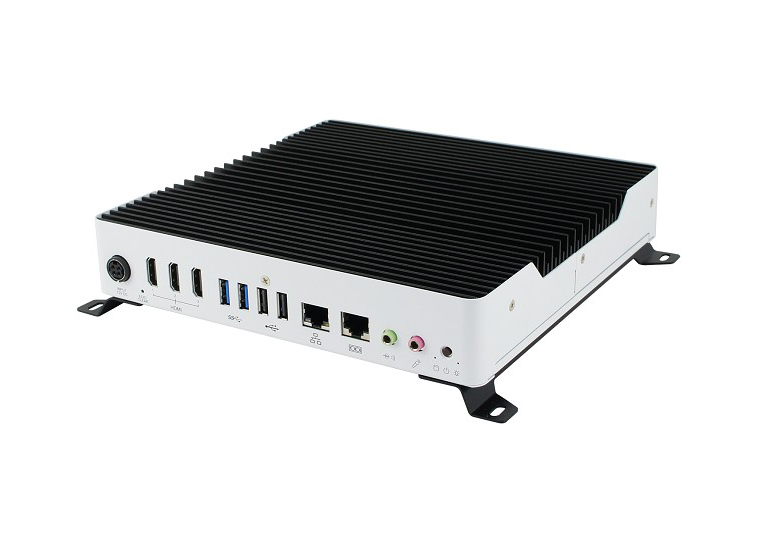

I/O Interface 1x HDMI 2.0 + 2x HDMI 1.4 with hardware EDID emulation
2x USB 3.0, 2x USB 2.0
1x RJ45 for Gigabit LAN
1x RJ45 for RS-232 serial port
2x Audio connectors for Line-out/Mic-in
1x Power / HDD LED
1x Power button
1x Power jack connector
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight 2.4 kg (5.29 lbs)
Chassis Color Black and white
Storage 1x 2.5" SATA HDD/SSD
Power Supply 84W power adaptor
Mounting Slim design with wall mounting holes
Dimensions 215.6mm(W) x 215.6mm(D) x 40mm(H)
8.49" (W) x 8.49" (D) x 1.57" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90% @45°C (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class-B, cULus, LVD
Operating System Win7(64-bit), Win8.1(64-bit) & Win10(64-bit) Enterprise, Linux Fedora / Ubuntu(64-bit) (Installation)
SI-623-N Book-Size Signage Player with MBD623 Intel® Core™ i7-6822EQ processor (8M Cache, up to 2.80 GHz), 2x 4GB DDR4-2133 SO-DIMM, 2.5” SATA SSD 128GB and 84W power adaptor
SI-MK3A Mounting bracket


Model Chipset Video Audio Network Others

Intel(R) Chipset Software Installation Utility

Windows 7 & 8 & 10

Intel(R) HD Graphics

Windows 7 & 8 (32bit)

Realtek High Definition Audio

Windows 7 & 10

Intel(R) PRO LAN Network

Windows 7 (32bit)

Intel(R) ME 11.x

Windows 7 & 8

Intel(R) USB 3.0

Windows 7
