Digital Signage Player
SI-323-N
AMD Ryzen™ Embedded R2000 / R1000 Series Processor Fanless Signage Player with AMD Vega GPU and 3x HDMI
- iSMART intelligent energy-saving & Observer remote monitoring technologies
- AMD Ryzen™ Embedded R2000 / R1000 Series Processors (TDP<=25W)
- Vega GPU with up to 3 compute units
- 3x HDMI 2.0 with independent Audio output support
- Built-in hardware EDID emulation function with software setting mode
- 2x DDR4-2400 SO-DIMM, Dual channel, Max. 32GB
- 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
- 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth, capture card options
- 1x M.2 M-Key (2280) for storage

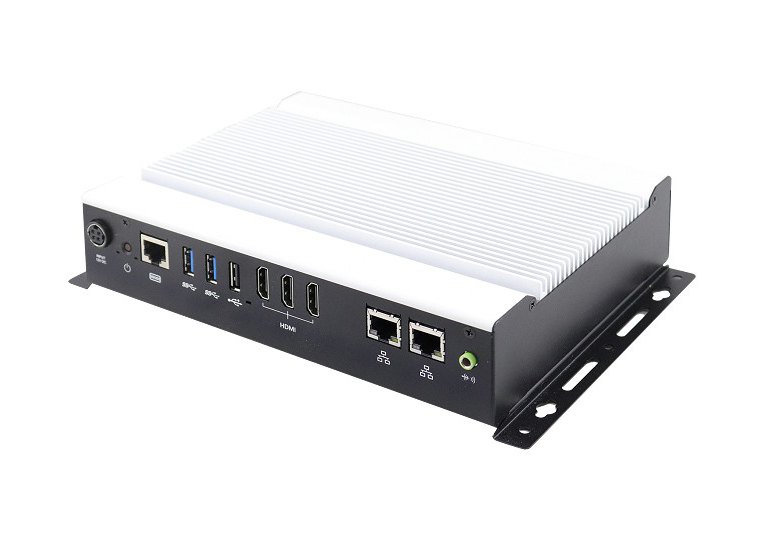

- Compact and fanless design
The SI-323-N is a triple-HDMI digital signage player based on the AMD Ryzen™ Embedded R1000 SoC with AMD Radeon™ Vega 3 Graphics that enables unparalleled graphics performance and optimal power efficiency. The compact and fanless player is designed with hardware acceleration to support 4K @60Hz resolution for each independent display and suitable for space-constraint deployment in airports, shopping malls, restaurants and other commercial establishments.
The unit is the latest IBASE digital signage system built with AMD Ryzen™ Embedded R1000 family that brings together the powerful performance of the pioneering "Zen" CPU and "Vega" GPU architectures. AMD’s Eyefinity technology helps eliminate the complexity of programming multi-screen signage for users to enable them to project different display configurations according to their needs.
The SI-323-N features energy-saving and remote monitoring technologies with IBASE iCONTROL for power-on/off scheduling, automatic power recovery and low temperature boot protection, as well as hardware EDID (Extended Display Identification Data) that prevents display problems caused by disconnection of cables, unrecognized displays or power interruption. Furthermore, the new built-in display monitoring function helps monitor display status from the field sites continuously. It comes with 8GB of DDR4 system memory, two Gigabit Ethernet, and expansion interface such as Mini PCIe, M.2 E-Key for wireless functions, and M.2 M-Key for storage. The SI-323-N works with both Windows 10 IoT Enterprise and Linux Ubuntu operating systems.
System Mainboard | MBD323 |
CPU | AMD Ryzen™ Embedded R1000 2.6GHz/3.5GHz or R2000 2.7GHz/3.5GHz Processors (TDP <=25W) |
CPU Socket | FP5 BGA package, 35mm x 25mm, 0.8mm pitch |
Chipset | SoC integrated |
Memory | 2x DDR4-2400 SO-DIMM, Dual channel, Max. 32GB |
Graphics | Next-Gen AMD Radeon™ HD GPU integrated |
LAN | 2x Realtek RTL8111H-CG Gigabit LAN controller |
Expansion Slots | 1x Mini PCI-E (full-size) 1x M.2 E-Key (2230) 1x SIM card slot |

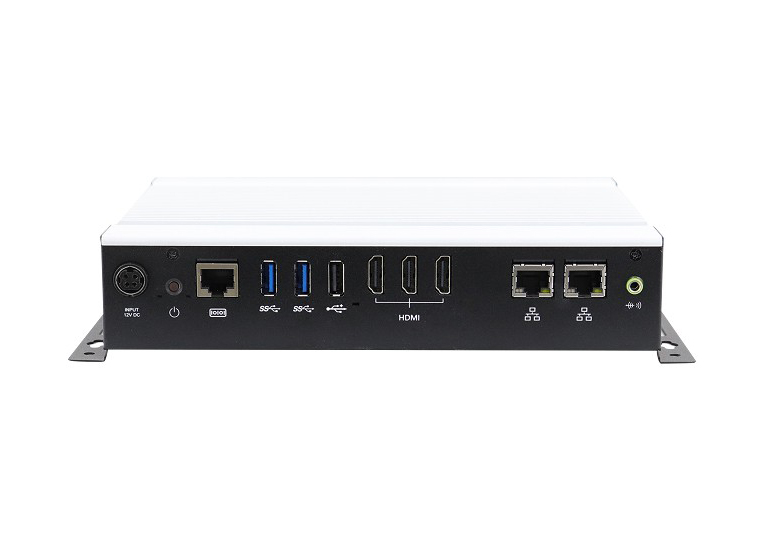

I/O Interface | 3x HDMI 2.0 with hardware EDID emulation 2x USB 3.0, 1x USB 2.0 2x RJ45 for Gigabit LAN 1x RJ45 for RS-232 serial port 1x Audio connectors for Line-out 1x Power / HDD LED 1x Power button 1x Power jack connector |
Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
Power Requirement | +12V DC-in |
Construction | Aluminum + SGCC |
Weight | 1.5kg (3.31lbs) |
Chassis Color | Black & white |
Storage | 1x M.2 M-Key (2280) (SATA signal only) |
Power Supply | 84W power adaptor |
Mounting | Standard system bracket |
Dimensions | 215.8mm(W) x 164mm(D) x 45mm(H) 8.49" (W) x 6.45" (D) x 1.77" (H) |
Operating Temperature | 0°C~45°C (32°F~113°F) |
Storage Temperature | -20°C~80°C (-4°F~176°F) |
Relative Humidity | 10%~90% (non-condensing) |
Vibration | M.2: 5 grms / 5~500Hz / random operation |
Certification | CE, FCC Class-B, cULus |
Operating System | Win10 IoT Enterprise(64-bit) Linux Ubuntu(64-bit) |
SI-323-N | Signage Player with MBD323 w/ AMD Ryzen™ Embedded R1606G 2.6GHz/3.5GHz; 2x 4GB DDR4-2400 SO-DIMM memory, M.2 128GB, 84W power adaptor |
SI-323-NR8 | Signage Player with MBD323-R8 w/ AMD Ryzen™ Embedded R1606G 2.6GHz/3.5GHz; 2x 4GB DDR4-2400 SO-DIMM memory, M.2 128GB, 84W power adapter |
SI-323-N2312 | Signage Player with MBD323-R8 w/AMD Ryzen™ Embedded R2312 2.7GHz/3.5GHz; 2x 4GB DDR4 SO-DIMM memory, M.2 128GB, 84W power adapter |
