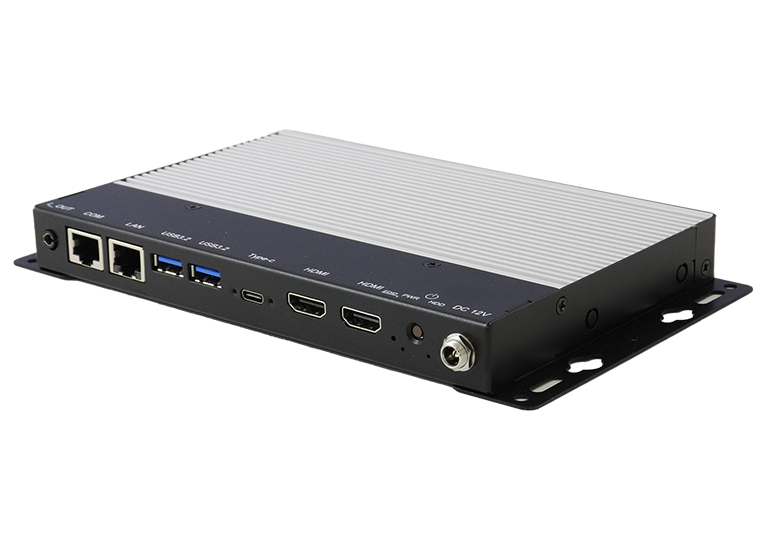

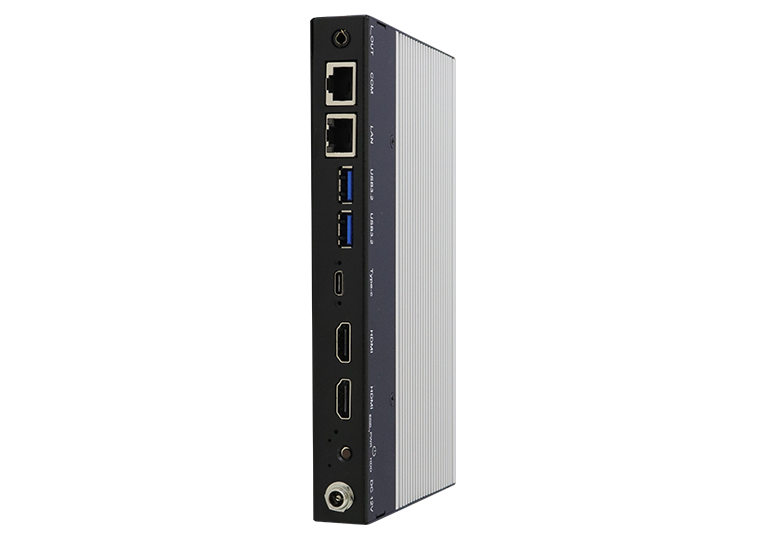

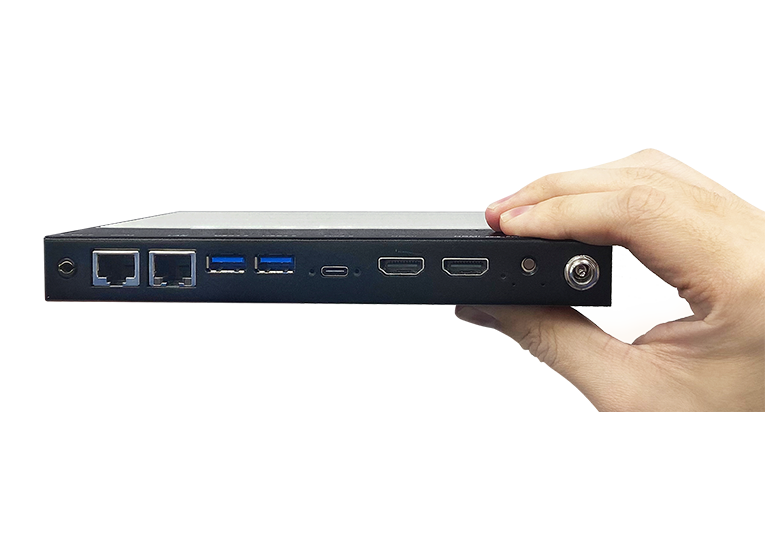

Digital Signage Player

SI-212-N

Intel® Atom® x7000E Series/ N-series/ Core™ i3-N305 Processor (formerly Alder Lake N) Fanless Signage Player with 2x HDMI 2.0

  • iSMART intelligent energy-saving technology - enables power on/off scheduling and power resume functions
  • Intel® Atom® x7000E Series / N-series / Core™ i3-N305 processors
  • 1x DDR5-5600 SO-DIMM, dual channel, Max. 32GB
  • 2x HDMI 2.0 with independent audio output
  • Built-in CEC and hardware EDID emulation functions with software setting mode
  • Supports PDPC (Peripheral Device Power Control) function
  • Supports OOB function via I210IT LAN port (optional)
  • 1x M.2 E-Key (2230) for WiFi, Bluetooth options
  • 1x M.2 M-Key (2280) for storage
  • TPM 2.0 and watchdog timer
  • Industrial-grade robust and compact fanless design
  • NEW
  • 5G
  • iSMART
  • Observer
  • Fanless
System Mainboard MBD212
CPU Intel® Atom® x7000E Series/ N-series/ Core™i3-N305 processor (formerly Alder Lake N)
CPU Socket FCBGA1264
Chipset Integrated
Memory 1x DDR5 5600 SODIMM / Max. =32GB (W/O ECC supported)
Graphics Gen 12 UHD Gfx, up to 32EU
LAN 1x Gigabit LAN
Expansion Slots 1x M.2 2280 socket (M-key, supports NVMe with PCI-E (2x) or SATA)
1x M.2 2230 socket (E-key, supports CNVi) w/ PCI-E(1x) & USB 2.0)

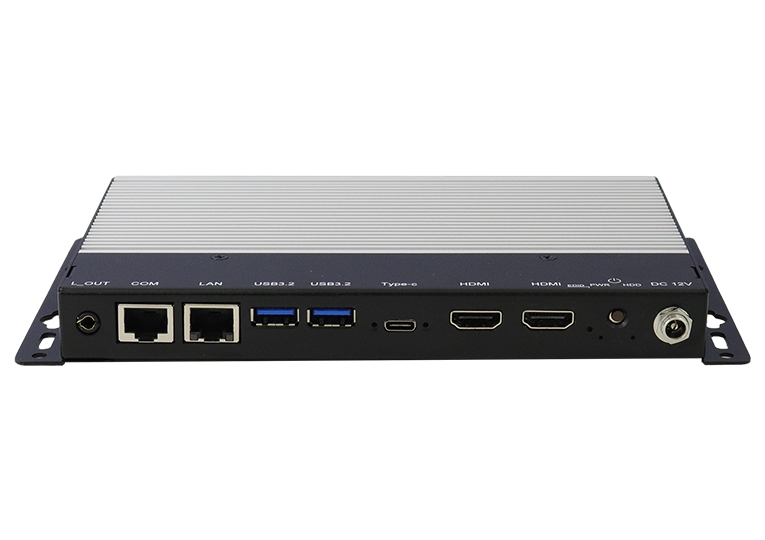

I/O Interface 2x HDMI 2.0b
2x USB 3.2 (USB Type-A)
1x RJ45 for Gigabit LAN
1x RJ45 for RS232 serial port
1x Audio connectors for Line out
1x Power button
1x Power jack (+12V DC)
2x LED for power & storage
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2…255 (sec/ min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight TBD
Chassis Color Black & White
Storage 1x M.2 M-key (2280)
Power Supply 50W power adaptor
Mounting Standard system bracket
Dimensions 217mm(W) x 123mm(D) x 22.5mm(H)
8.54”(W) x 4.84”(D) x 0.88”(H)
Operating Temperature 0°C~ 45°C (32°F~113°F)
Storage Temperature -20° ~ 80°C (-4°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Vibration M.2: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class-B, cULus & CCC, LVD
Operating System Windows 10 IoT Enterprise, Linux Ubuntu 64-bit
SI-212-N Intel® Atom® x7000E Series/ N-series/ Core™i3-N305 processor, 1x 8GB DDR5 5600 SO-DIMM memory, M.2 128GB and 50W power adaptor
