Digital Signage Player
ISR500
MediaTek Genio 700 (MT8390) or MediaTek Genio 510 (MT8370) Processor Ruggedized Fanless Signage Player with 2x HDMI
- MediaTek Genio 700 (MT8390) 2.2GHz or MediaTek Genio 510 (MT8370) 2.0GHz processor
- 1x HDMI (4K60) + 1x HDMI (FHD60)
- LPDDR4 4000MT/s on-board 4GB
- Embedded I/O for COM, USB, HDMI, Ethernet
- Supports M.2 E-Key (2230) for WiFi6 2T2R + BT 5.2 connectivity
- Ruggedized and Fanless Design
The ISR500 is a high-performance fanless signage player designed for smart retail and AIoT applications. It leverages the leading 6nm chip design, which is powered by the MediaTek Genio 700/MT8390 2.2GHz or Genio 510/MT8370 2.0GHz processor, to deliver highly responsive multi-core and real-time performance up to 3.2 TOPS, enabling deep learning, neural network acceleration, and computer vision capabilities.
The ISR500 integrates a powerful eight-core CPU, including dual-core Arm Cortex-A78 and six-core Cortex-A55 as efficiency cores, along with an excellent graphics engine, Arm Mali-G57. Additionally, it supports up to 8GB of ultra-low power consumption. It supports 1x HDMI (4K60) + 1x HDMI (FHD60) display outputs for real-time video processing and super resolution enhancements. The system, which is compatible with Yocto and Linux Ubuntu operating systems, helps device manufacturers easily develop new products that meet powerful edge processing requirements.
| System Mainboard | IBR500 SBC |
| CPU | MediaTek Genio 700 (MT8390) : 2x A78 2.2GHz L2 256KB, 6x A55 2.0GHz L2 128KB, shared 2MB L3 cache MediaTek Genio 510 (MT8370) : 2x A78 2.0GHz L2 256KB, 4x A55 2.0GHz L2 128KB, shared 2MB L3 cache |
| Chipset | Integrated |
| Memory | 4GB LPDDR4 on board |
| Graphics | ARM Mali-G57 MC3, OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1 ARM Mali-G57 MC2, Vulkan 1.1, OpenGL ES 3.2, and OpenCLTM 2.2 |
| LAN | 1x RJ45 GbE LAN |
| Expansion Slots | 1x M.2 E-Key (2230) w/ SDIO, UART (for Wireless) |

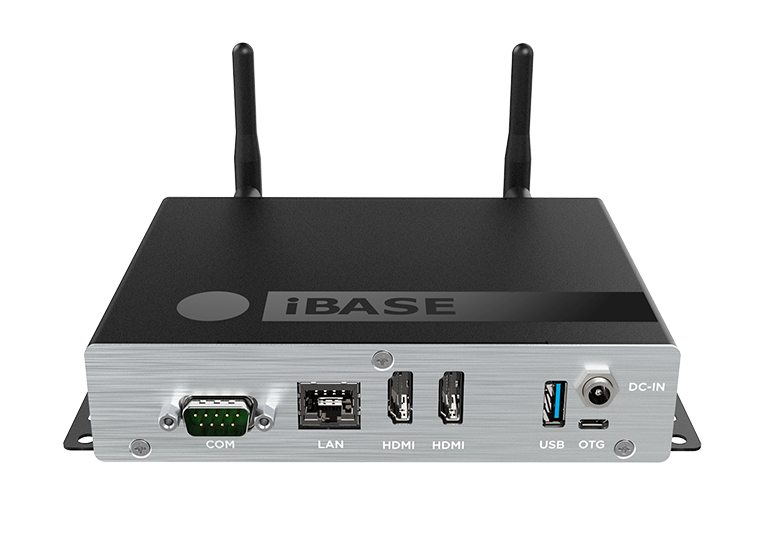

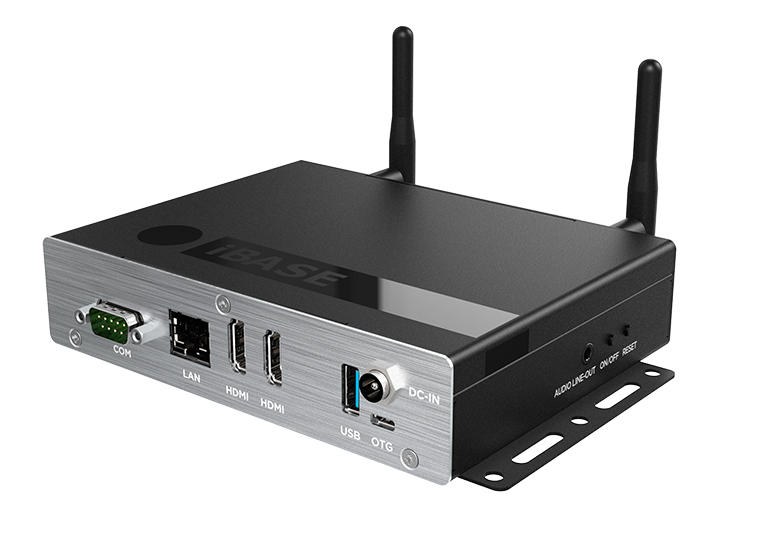

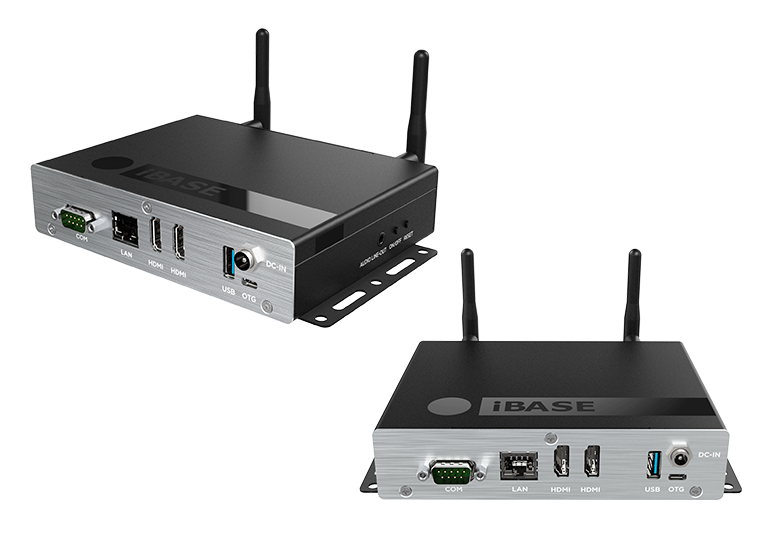

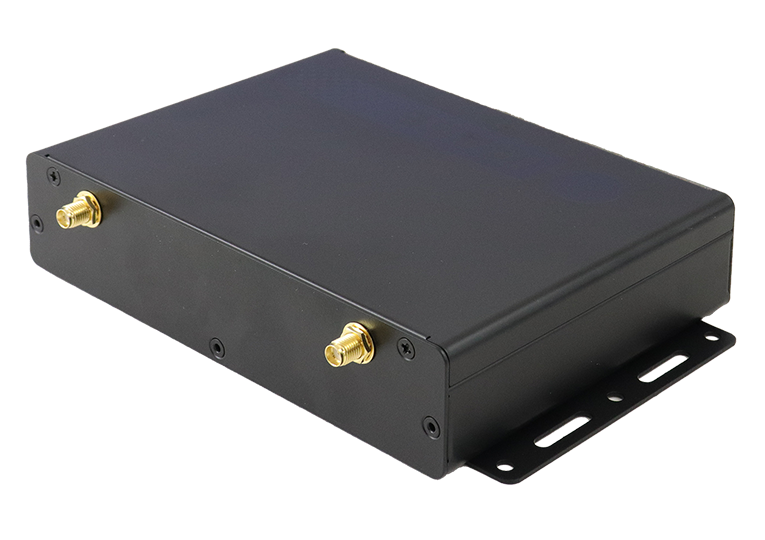

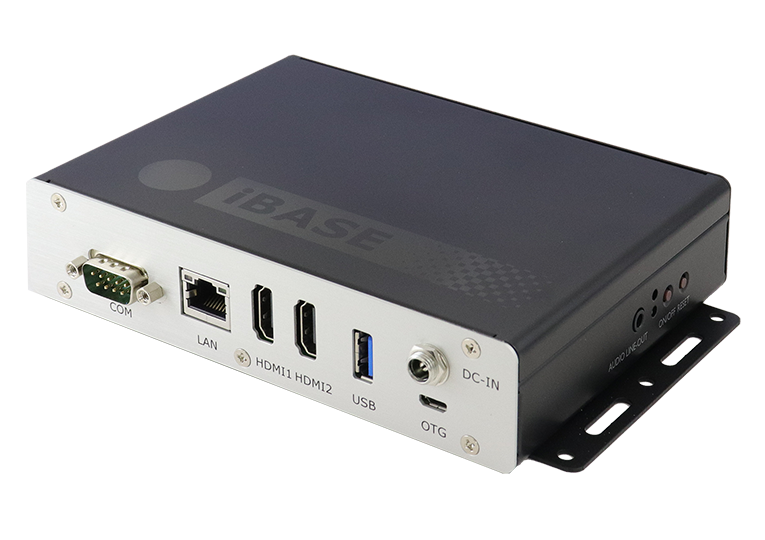

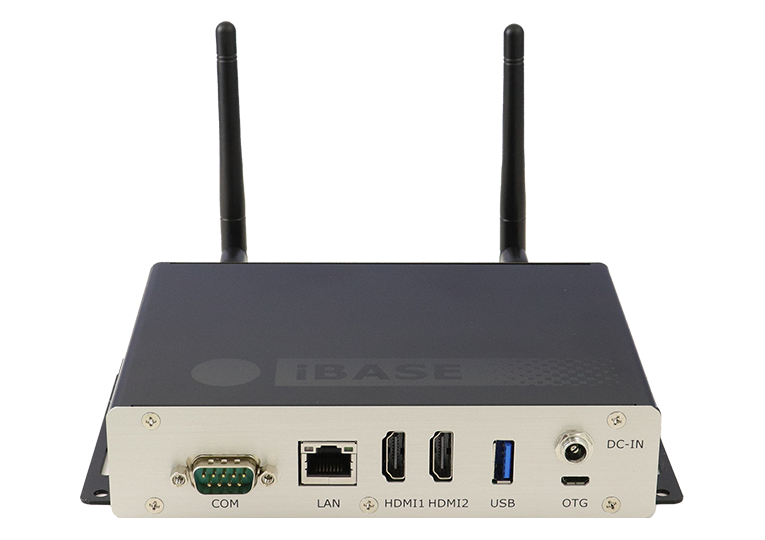

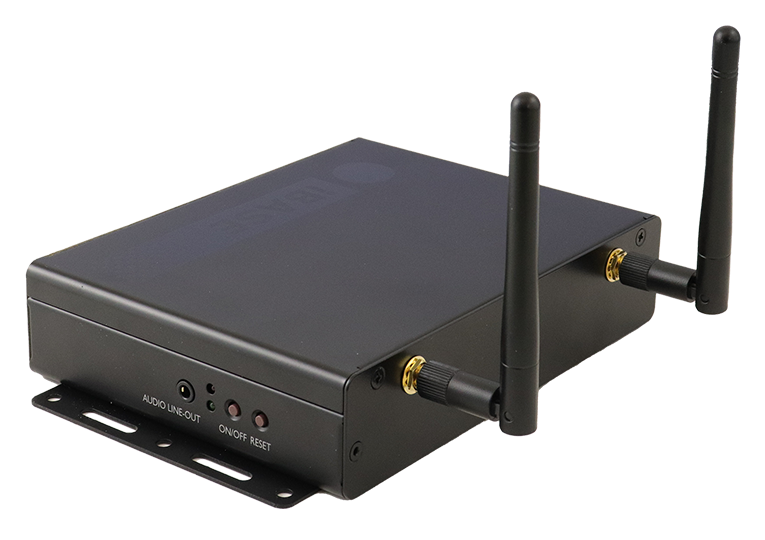

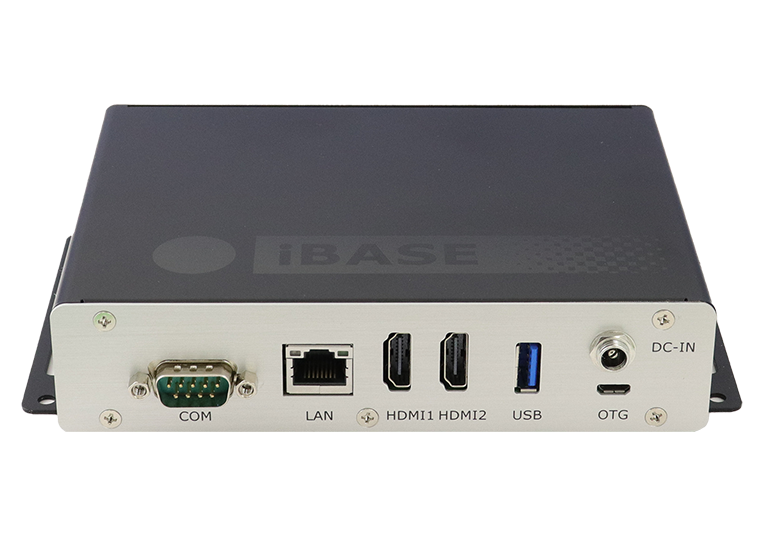

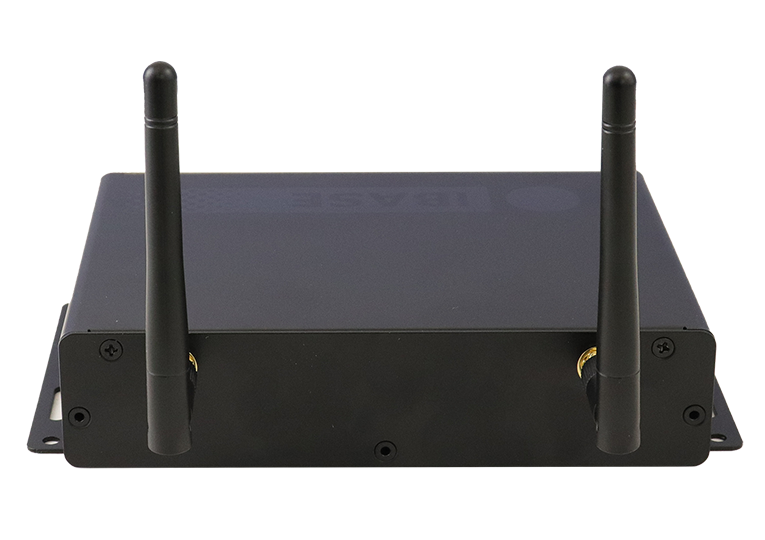

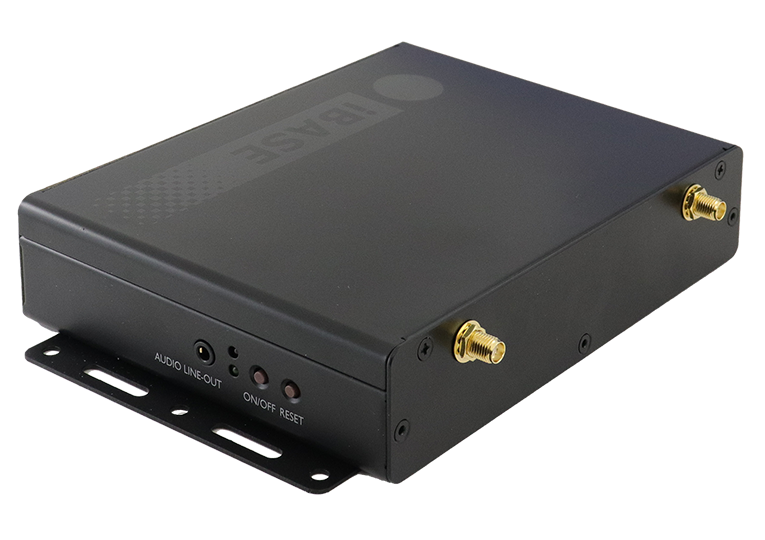

| I/O Interface | Front I/O: 1x RS232 DB9 connector 1x RJ45 GbE LAN 1x HDMI (4K60) + 1x HDMI (4K30) 1x Micro USB2.0 (with OTG support) + 1x USB 3.1 Type-A 1x DC IN power jack EIAJ with screw lock Rear I/O: 2x Antenna holes Side I/O: 1x PWR On/Off button 1x Factory reset button 1x Audio Line-Out |
| Auto Control and Monitoring | Watchdog Timer: 256 Levels, 0~128 Secs |
| Power Requirement | 12V DC-in |
| Construction | SGCC |
| Weight | 0.5kg (1.1lbs) |
| Chassis Color | Black & Silver |
| Storage | 64GB~128GB eMMC 5.1 Flash for O.S. and 8MB SPI NOR Flash for board information |
| Power Supply | 60W |

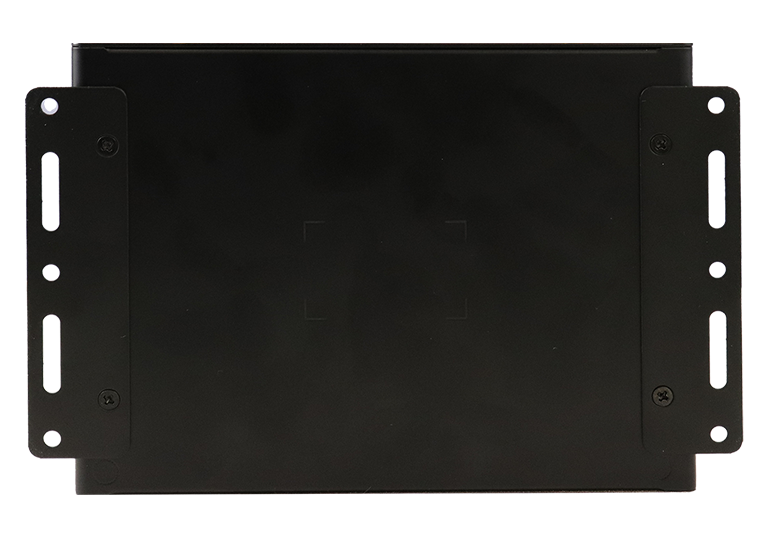

| Mounting | Desktop or wall mounting (wall mount kit included) |
| Dimensions | 155mm (W) x 110mm (D) x 35mm (H) |
| Operating Temperature | -10 to +50℃(14°F~122°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Non-Operating: 1.0 grms / 5~500Hz / random operation Operatiing:0.25 grms / 5~500Hz / random operation |
| Certification | CE / LVD / FCC Class-B (TBD) |
| Operating System | Linux Yocto 5.15 ready Android 13 ready Support for other OS available upon request |
| ISR500-1 | MediaTek Genio 700 / MT8390: 2x A78 2.2GHz L2 256KB, 6x A55 2.0GHz L2 128KB, shared 2MB L3 cache, 8GB LPDDR4, 64~128GB eMMC |
| ISR500-2 | MediaTek Genio 510 / MT8370: 2x A78 2.2GHz L2 256KB, 4x A55 2.0GHz L2 128KB, shared 2MB L3 cache, 4GB LPDDR4, 64GB eMMC |
| 60W power adaptor | 60W (12V @5.0A) power adaptor, bare wire type Compatible with IEC62368-1/EN62368-1 |
| Optional Accessories | WiFi / Bluetooth module & antenna kit M.2 Wifi/BT module: A024MDWIFI0045000P or A024MDWIFI0046000P Antenna kit: A055RFAS67H600000P+A055BTC0000010000P |
| DATASHEETS | ISR500 |
| CATALOGS | Digital Signage Players (Vol.23.12) |
