RISC Platform

RM-N8MMI Series

Wide-Temperature SMARC™ 2.0 Module with NXP ARM® Quad Cortex-A53/Cortex-M4 i.MX 8M Mini Processor

  • NXP Cortex™-A53/ Cortex™-M4, i.MX 8M Mini Quad processor
  • 2GB LPDDR4, 8GB eMMC on board
  • Wide-range operating temperature (-40°C to 85°C)
  • Rich peripheral I/O support
  • Validated with Yocto v2.5 and Android 9.0
  • Long life time supply with NXP solution
  • Compliant with SMARC™ 2.0
  • Fanless
  • Wide Temperature

The RM-N8MMI SMARC 2.0 CPU Module is built with NXP ARM Cortex-A53 i.MX 8M Mini Quad 1.6GHz industrial-grade processors. Together with a customized carrier board equipped with an array of serial, video and network interfaces, the RM-N8MMI solution is the perfect choice for multimedia and IoT applications that require low power and high performance in transportation passenger information and entertainment systems.


"The modular approach of the SMARC specification allows customers to take full advantage of the scalability benefit, optimized time-to-market and upgrade capability," said Archer Chien, Director of Solution Product Planning Dept. at IBASE. "The cost-efficient RM-N8MMI offers a competitive advantage to our customers by reducing the Total Cost of Ownership (TCO) and lowering the lifecycle costs."

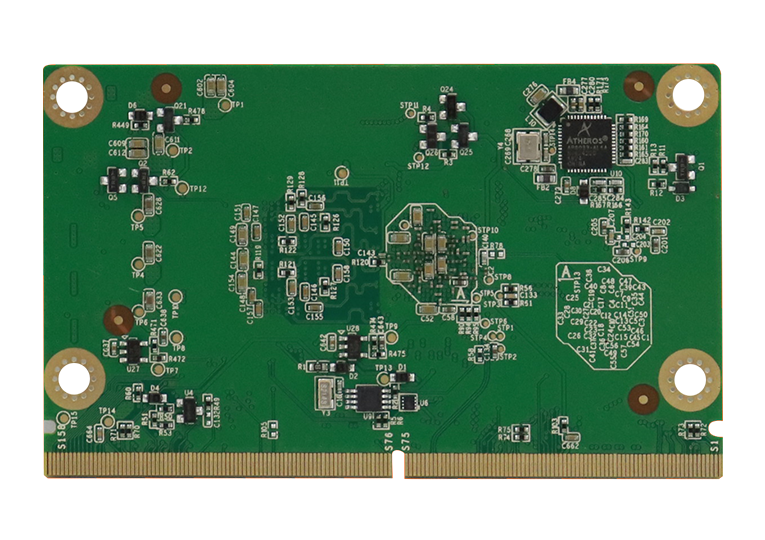

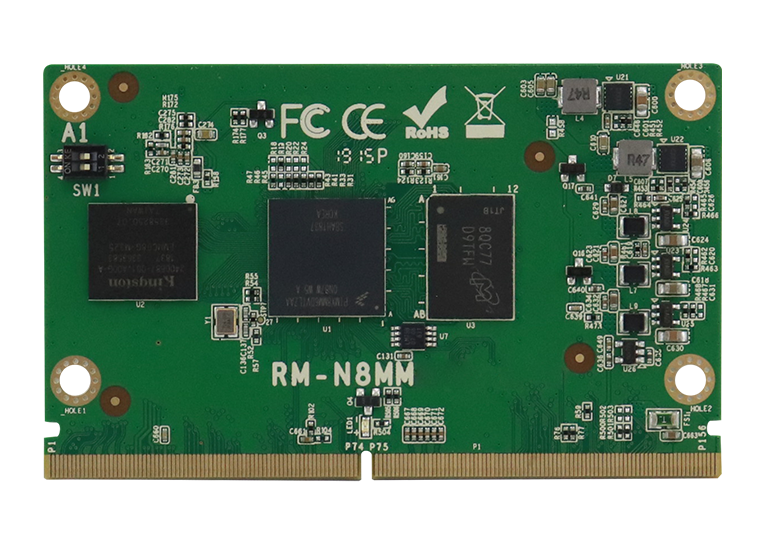

RM-N8MMI Series Wide-Temperature SMARC™ 2.0 Module


The RM-N8MMI module measures 82mm by 50mm and features Vivante's GC 320 GPU, 2GB soldered LPDDR4 and up to 64GB eMMC flash memory. Extensive I/Os supported include 1x GbE, 2x USB 2.0 with OTG interface, 1x MIPI CSI-2 for image capture, 4x UART, 2x SPI, 2x I2S, 2x SPI and 1x PCI-E (x1) Gen2.


Shipped with extended longevity of up to 10 years, the RM-N8MMI is provided with Yocto BSP and Android 9.0 support. It is available with an industrial grade variant that runs from -40°C to +85°C extended temperature, as well as the RP-103-SMC carrier board providing users a rich set of interfaces and 12V~24V DC input.

Form Factor SMARC™ V2.0
Processor NXP i.MX 8M Mini Quad Cortex™-A53 and Cortex™-M4 processor
System Memory 2GB LPDDR4 on board
Flash Memory 8GB eMMC on board
Display 1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz
Video Codec • 1080p60 VP9
• 1080p60 HEVC/H.265 decoder
• 1080p60 AVC/H.264 Baseline, Main, High decoder
• 1080p60 VP8
• 1080p60 AVC/H.264 encoder
• 1080p60 VP8
• TrustZone support
Graphics • GCNanoUltra
• Vivante GC320
Audio Interface 2x I²S, 1x SPDIF
LAN 1x GbE LAN
USB 2x USB2.0 with OTG interface
Image Capture Interface 1x MIPI-CSI2 4-lane
Serial Interface 4x UART, 2x SPI Interface
Media Interface 2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)
PCI-E 1x PCI-E (x1) Gen2
SATA N/A
GPIO 12x GPIO
I²C 4x I²C
Others Wireless WCN3980 (optional)
CAN Bus N/A
Dimensions 82mm x 50mm (3.2" x 2")
Environment Humidity: 0 % to 90 % RH at 60° C (non-condensing)
Shock: Non-operating: 1G, 15 mins (x-, y-, z-axis)
Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins
Operating Temperature -40°C ~ 85°C (-40°F ~ 185°F)
OS Support Yocto 2.5
Android 9
Other OS (by request)
Certification CE/ FCC Class-B
RM-N8MMI-Q208I Industrial Grade SMARC™ 2.0, Cortex™-A53 i.MX 8M Mini Quad 1.6GHz processor, 2GB LPDDR4, 8GB eMMC
