RISC Platform

IBR210

Low-Power 3.5-inch SBC with NXP ARM® Quad Cortex-A53/Cortex-M4 i.MX 8M Processor

  • NXP Cortex™-A53/-M4, i.MX 8M Quad processor
  • 4K HDMI, dual channel FHD LVDS
  • 3GB LPDDR4, 16GB eMMC and SD socket
  • Embedded I/O for COM, GPIO, USB 3.0, USB-OTG, Audio and Ethernet
  • M.2 E-Key (2230) and mini-PCI-E with SIM socket for wireless/4G/LTE connectivity
  • Fanless
  • Wide Temperature
  • Microsoft Azure Certified-IoT

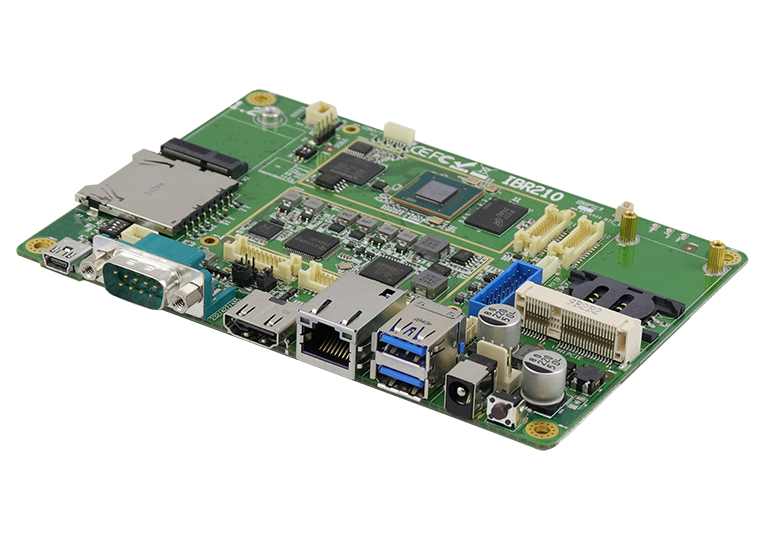

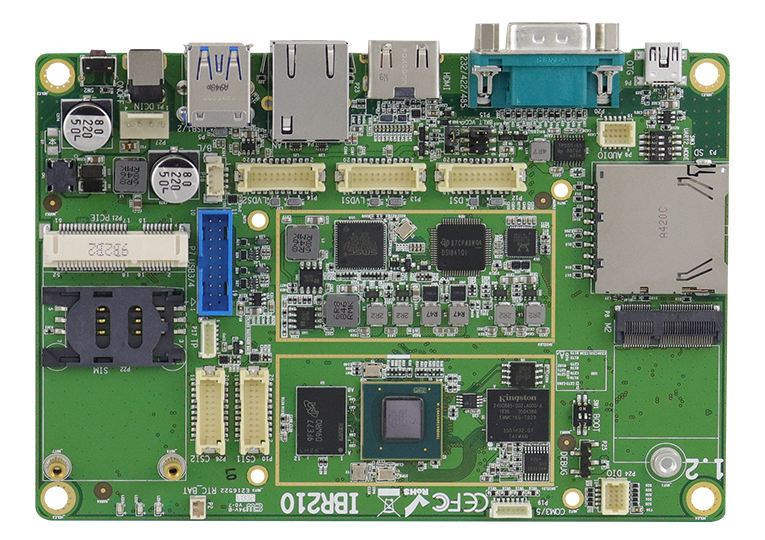

The IBR210 3.5" single board computer (SBC) features NXP's dual or quad core ARM® Cortex-A53 i.MX 8M processors in 1.3GHz and 1.5GHz CPU frequencies. The i.MX 8 application processors are built with advance media processing, allowing IBR210 to deliver 4K HDMI content with HDR and run a dual-channel FHD LVDS display. The embedded board is targeted at multiple signage displays at airports, train and bus stations, and shopping malls, as well as PIS passenger information applications.

Low-Power Multimedia IoT 3.5” SBC with NXP ARM® Cortex-A53/Cortex-M4 i.MX 8M Quad 1.3GHz Processor

The IBR210 provides industry-leading multimedia processing for a wide range of IoT applications, with flexible memory options and high-speed interfaces. Measuring 102 x 147mm, the SBC features soldered 3GB LPDDR4 system memory on board and 8GB to 64GB eMMC flash memory, and rich I/O connectivity including one GbE RJ45, two USB 3.0, a USB OTG, an HDMI, a serial port and an SD socket. Also supported are two USB 3.0 ports from internal headers, M.2 Key-E and mPCIe expansion, a power input of 12V~24VDC via a DC-in jack and a -40°C~85°C wide operating temperature range.


IBASE provides Board Support Package (BSP) for Android 9 and Yocto Linux v2.5 operating systems to help customers quickly build their Android and Linux solutions and long life time supply with the NXP solution. IBASE also offers RM-N8M Series wide-temperature SMARC 2.0 module with NXP ARM® Cortex-A53/Cortex-M4 i.MX 8M processor.

Form Factor 3.5-inch SBC
Processor NXP i.MX 8M Quad Cortex™-A53 and Cortex™-M4 processor
System Memory 3GB LPDDR4 on board
Flash Memory 16GB eMMC on board
Display 1x Dual Channel LVDS (FHD)
1x HDMI V2.0a
Video Codec • 4Kp60 HEVC/H.265 main, and main 10 decoder
• 4Kp60 VP9 decoder
• 4Kp30 AVC/H.264 decoder
• 1080p60 MPEG-2, MPEG-4p2, VC-1, VP8, RV9, AVS, MJPEG, H.263 decoder
Graphics • GC7000Lite
• OpenGL ES 1.1, 2.0, 3.0, 3.1, Open CL 1.2, and Vulkan
Edge I/O 1x RJ45 GbE LAN
2x USB 3.0 Type-A
1x USB OTG (mini-USB Type-B)
1x HDMI 2.0a
1x RS232/422/485 (D-SUB 9 male connector)
1x SD socket (UHS-I SDR-104, 104MB/s max.)
1x On/Off button
Internal I/O 1x Dual channel LVDS
1x Backlight, 3.3V/1A, 5V/1A, 12V/1A (jumper selection)
1x MIPI-DSI (2*10 pin header)
2x MIPI-CSI (2*10 pin header)
2x USB 3.0 header
1x M.2 E-Key (2230) w/ USB, SDIO, UART, PCI-E
1x Mini PCI-E w/ SIM socket
1x I²C header
1x 2-wire RS232 header (for Debug Console Port)
2x 2-wire RS232 header
1x Audio header (Line-in and Line-out)
8x GPIO (2*5 pin header 1.0mm)
3x Green LEDs (for power On/Off, wireless status, and programmable)
Expansion IO N/A
Watchdog 256 Levels, 0~128 secs
Dimensions 147mm x 102mm (5.8" x 4")
Power Input 12V~24V DC-in jack and Internal Header
Operating Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 10%~90% (non-condensing)
OS Support Yocto 2.5
Android 9
UBUNTU 18.04 evaluation
Other OS (by request)
Certification CE/FCC Class-B
IBR210-Q316I Industrial Grade3.5” SBC, i.MX 8M Quad 1.3GHz processor, 3GB LPDDR4, 16GB eMMC
