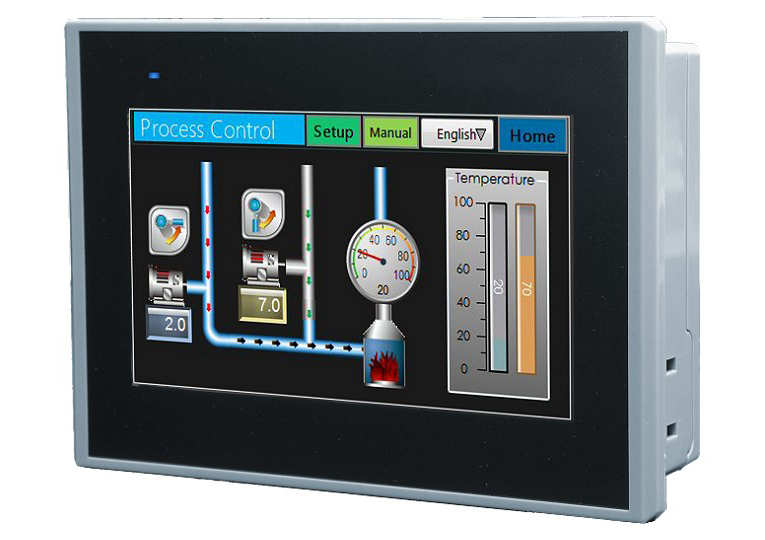

RISC Platform

IPR-P04F-N

Industrial HMI with TI ARM® Corte™ A8, Sitara™ AM3352 (1GHz) Processor

  • ARM Cortex A8 (1GHz)
  • 480 x 272 TFT, 330 cd/m², 20,000 hours
  • DC 24V+20%
  • Plastic chassis, fan-less design
  • Panel Mount, IP65 front bezel
  • Suitable for industrial application
Display type 4.3" TFT
Resolution 480 x 272
Display area 154.08mm x 85.92mm
Color depth 64K
Backlight type LED
Brightness 330 cd/m²
Backlight lifetime 20,000 hours
Viewing angle (H°/V°) 140/120
Contrast 500:1
Touch panel 4-wire resistive type
CPU ARM Cortex-A8 (1GHz)
Flash memory 4G eMMC
DRAM 512M Bytes
FRAM (non-volatile) 32K Bytes
RTC Yes
COM1 1x RS232, 1x RS422/485 or CAN bus (option)
COM2 N/A
COM3 N/A
Ethernet 1 x 10/100 Mbit
USB 1x Host, 1x Device
Memory card N/A
Power supply voltag DC 24V ±20%, isolated power
Power consumption 6W
Operation temperature 0 ~ 45°C
Storage temperature -20 ~ 60°C
Humidity 10% ~ 90% (non-condensing) @ 40°C
Waterproof (front) IP65
ESD Protection N/A
Dimension 127.7mm(W) x 89.7mm(H) x 36.7mm(D)
Cut-out 119.3mm(W) x 81.3mm(H)
Weight(Net) 0.25 Kg
IPR-P04F-N 4.3”, 480x272 pixel, TI ARM ® Cortex ™ A8, Sitara ™ AM3352 (1GHz), eMMC 4G, SDRAM 512M, COM1 (RS232/RS422/RS485), USB (1 Host/1 Device), Ethernet , 24V ± 20% DC
DATASHEETS IPR-P04F-N
