Panel PC

INOSP-192-RE

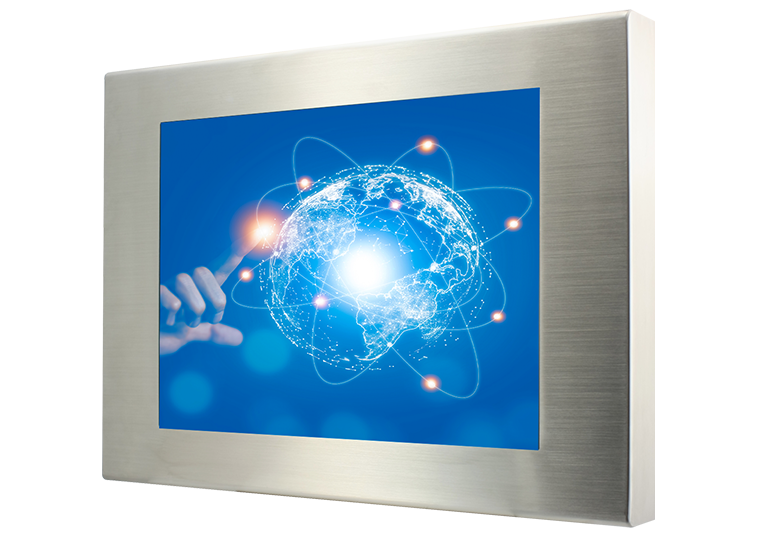

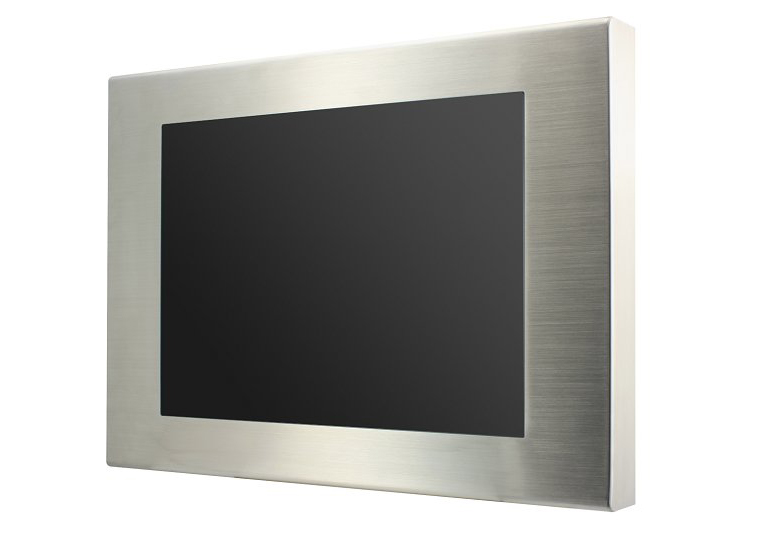

Fanless 19" Stainless Steel Panel PC with Intel® Atom® Processor E3845

  • Fanless design
  • Resistive/ Projected capacitive touch
  • Durable stainless steel housing
  • Low power consumption processor
  • Wide-range 10V~30V DC power input
  • USB 3.0 (optional)

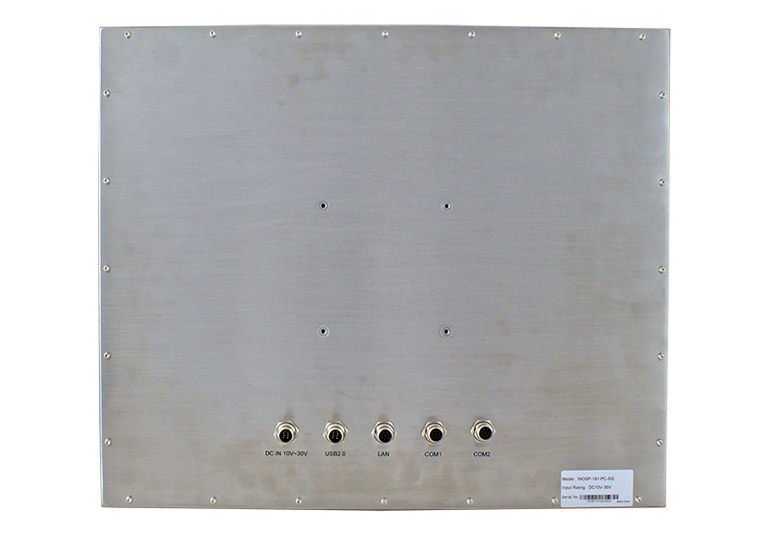

  • M12 I/O port
  • Fanless
  • F Panel IP65
Display Size 19” TFT-LCD
Max. Resolution 1280 x 1024
Luminance (cd/m2) 350
Contrast 1000 : 1
Max. Color 16.7M
View Angle (H/V) 170/160
Backlight Lifetime(hrs) 50,000
Touch Type Resistive
Touch Interface USB
Light Transmission (%) 80
Point of touch 1
USB 3.0/ 3.1 Optional (M12)
USB 2.0 1 (M12)
RS-232/422/485 Selectable in BIOS 1 (M12)
RS-232 1 (M12)
LAN 1x GbE (M12)
Second LAN (option)
Additional Graphics None
Audio None
Digital I/O None
Power Connector M12 connector
Power Button None
Dimensions (mm) 470 x 390 x 62.5
Net Weight (kgs) 17
Processor Intel® Atom® Processor E3845 1.91GHz
Memory 2x DDR3L SO-DIMM, up to 8GB, default 4GB
Thermal Design Fanless
Membrane Control None
Built-in Speaker/MIC None
Internal Expansion Bus 1x Mini PCI-E(x1) [full/half-size]
1x Mini PCI-E(x1) [half-size]
Expansion Slot None
Wireless None
HDD 1x 2.5” SATA
Removable None
Power Input Range 10V~30V DC
Chassis Material 304 stainless steel / 316 stainless steel (option)
Color (Front/Back) Silver / Silver
IP Rating IP65 / IP69K
Mounting VESA 75x75mm and 100x100mm
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Storage Humidity 10%~90% (non-condensing)
Certification CE/FCC Class-B and LVD
Supported Operating Systems Windows 10/ Windows 8 32-bit/64-bit, Windows 7 Pro for Embedded 64-bit, WES7 64-bit
INOSP-192-RE 19” Stainless Steel Panel PC with IB897-I45P, Intel® Atom® Processor E3845 1.91GHz, 4GB DDR3L SO-DIMM, 64G SSD, resistive touch

Drivers

Model Chipset Video Audio Network Others
INOSP-152-RE_INOSP-192-RE_INOSP-192-PC

Intel INF

Windows 7 & 8

Realtek ALC269

Windows 7 & 8

Intel LAN

Windows 7 & 8

Intel USB 3.0

Windows 7

Intel TXE Driver

Windows 7 & 8
