Panel PC

UPC-7210

21.5” Waterproof Panel PC with 7th Gen Intel® Core™ i3/i5/i7 Processor

  • 21.5” IPS LCD, 1920 x1080
  • Projected capacitive touch screen, supports multi touch
  • IP65 front-panel waterproof protection
  • Supports a variety of processor platforms, from entry to performance level
  • Optional wireless solution
  • Fanless
  • F Panel IP65
  • Flat Bezel

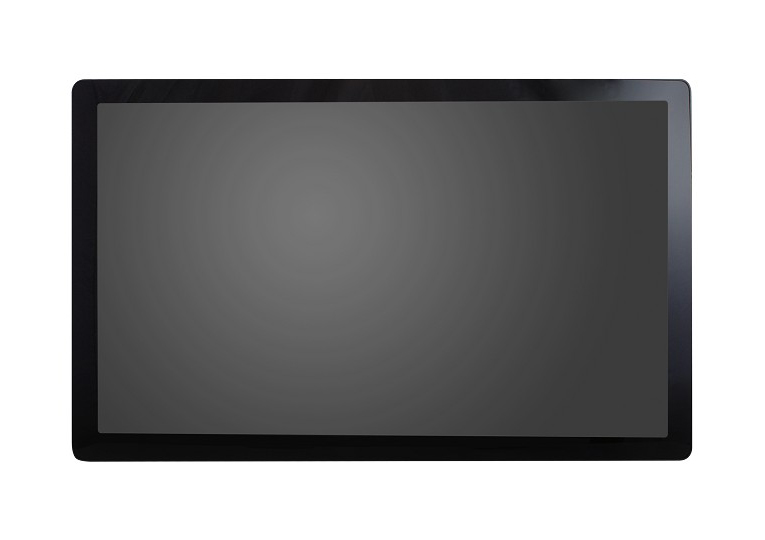

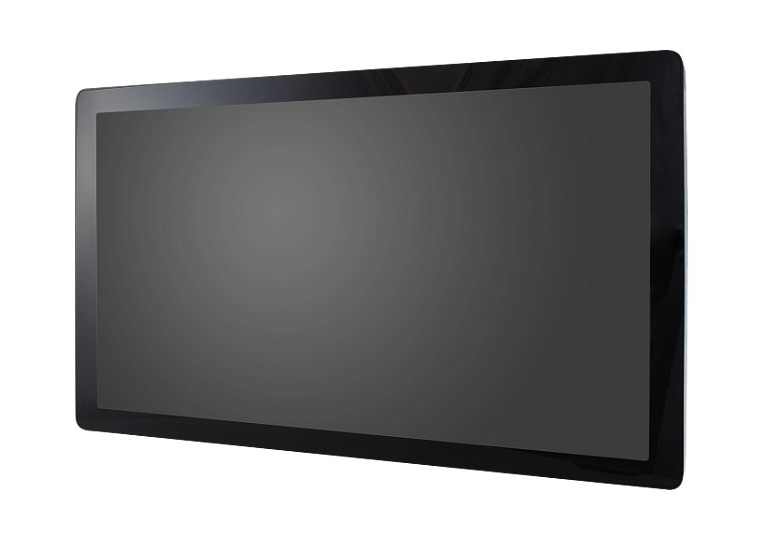

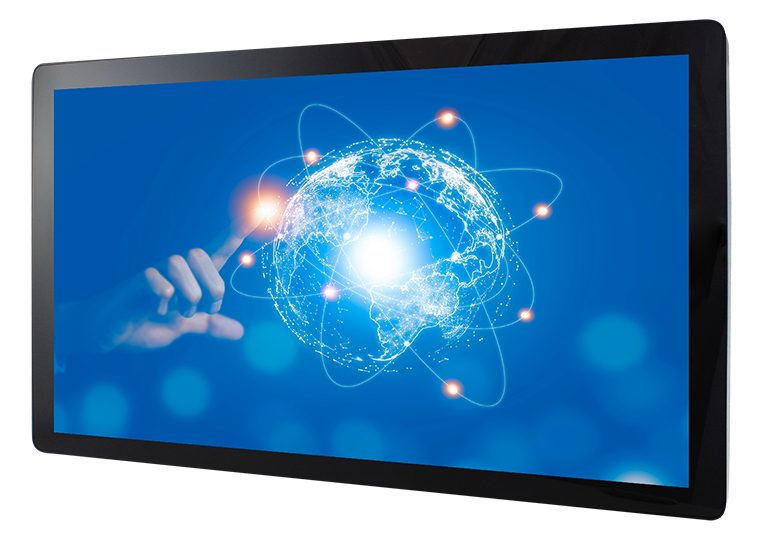

The UPC-7210 fanless 21.5-inch panel PC is created for smart retail applications. It features a full flat bezel design and a 1920x1080 IPS LCD with projected capacitive touch screen that allows multi touch and gesture touch functionalities. The unit has high reliability and sealed housing, with IP65 rated front panel for waterproof resistance, and are powered by 7th Gen Intel® Core™ Processors.

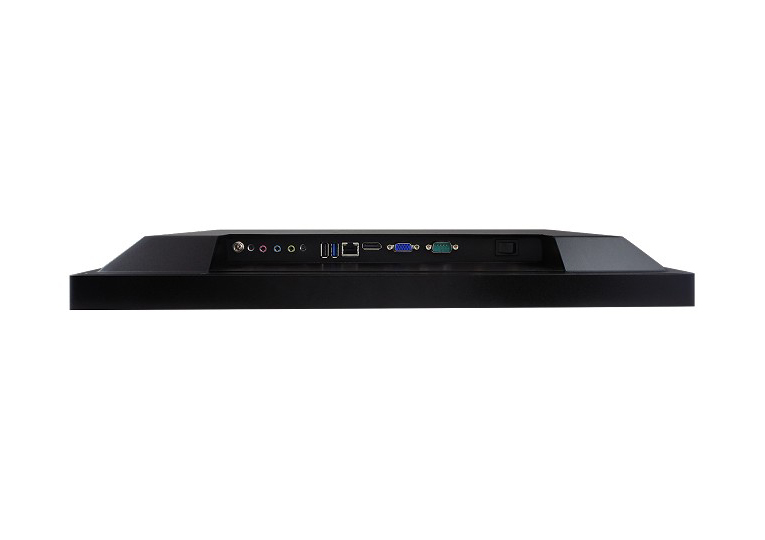

The UPC-7210 is equipped with four USB 3.0, one USB 2.0, two Gigabit Ethernet, extra HDMI and DP graphics, 24VDC input and up to 32GB of DDR4 support. Common features include 64GB SSD storage, mPCIe for mSATA, 12VDC input, optional wireless solutions, and OS support for Windows 10 and Linux Kernel 4+. With VESA mounting (100x100), the UPC-7210 is not restricted to wall mounting but can be fitted to desk mount or placed on a swivel arm.


This visually-appealing panel PC is aimed to enhance customer experiences in retail and catering environments such as convenience stores, department stores, airports, cinemas and specialty stores. The high-performance and low-power systems are designed for long-term use and have no problem operating in ambient temperatures up to 50°C.

Display Size 21.5” TFT-LCD
Max. Resolution 1920 x 1080
Luminance (cd/m2) 250
Contrast 1:1000
Max. Color 16.2M
View Angle (H/V) 178/178
Backlight Lifetime(hrs) 30000
Touch Type Projected capacitive
Touch Interface USB
Light Transmission (%) 89
Point of touch 10
USB 3.0/ 3.1 4
USB 2.0 0
RS-232/422/485 Selectable in BIOS 1
RS-232 0
LAN 2 x GbE
Additional Graphics 1x HDMI
1x DP
Audio 1x 3.5 mm phone jack for line -out
Digital I/O None
Power Connector Power jack
Power Button Rock switch
Dimensions (mm) 529 x 321 x 59
Net Weight (kgs) 9
Processor Intel® i7 7600U (2.8GHz~3.9GHz, 4MB cache) UPC-7210 -I76
Intel® i5 7300U (2.6GHz~3.5GHz, 3MB cache) UPC-7210 -I73
Intel® i3 7100U (2.4GHz, 3MB cache) UPC-7210 -I71
Memory Max. 32GB, default 4GB DDR4
Thermal Design Fanless
Membrane Control None
Built-in Speaker/MIC 2x 2W 4Ω Speakers
Internal Expansion Bus 1x miniPCI-E Full-size, mSATA supports
Expansion Slot None
Wireless Optional
HDD 1x 2.5” HDD space default 64GB SSD
Removable None
Power Input Range 12V/24VDC
Chassis Material AL 5052
Color (Front/Back) Black/Black
IP Rating Front Side IP65
Mounting VESA 100x100
Operating Temperature 0°C~50°C
Storage Temperature -20°C~70°C
Storage Humidity 10%~90% @40°C (non-condensing)
Certification CE/FCC Class-B +LVD
Supported Operating Systems Windows 10, 64bits, Linux Kernel 4+
UPC-7210 -I76 21.5” Fanless Panel PC with IB917AF-7600, 7th Gen Intel® Core™ i7 7600U, Projected capacitive touch screen, 4GB DDR4 memory, 64G SSD, 12V or 24V DC input, with 12VDC adaptor
UPC-7210 -I73 21.5” Fanless Panel PC with IB917AF-7300, 7th Gen Intel® Core™ i5 7300U, Projected capacitive touch screen, 4GB DDR4 memory, 64G SSD, 12V or 24V DC input, with 12VDC adaptor
UPC-7210 -I71 21.5” Fanless Panel PC with IB917AF-7100, 7th Gen Intel® Core™ i3 7100U, Projected capacitive touch screen, 4GB DDR4 memory, 64G SSD, 12V or 24V DC input, with 12VDC adaptor
