Panel PC

MRS-801-RE

ARM-Based i.MX6 8" Power-Over-Ethernet Panel PC

  • High-Performance ARM-based processor
  • 8" SVGA TFT LCD with resistive touch screen
  • User-defined status LED light bar
  • Compact fanless design with plastic housing
  • Supports Android 4.0X
  • RISC Based

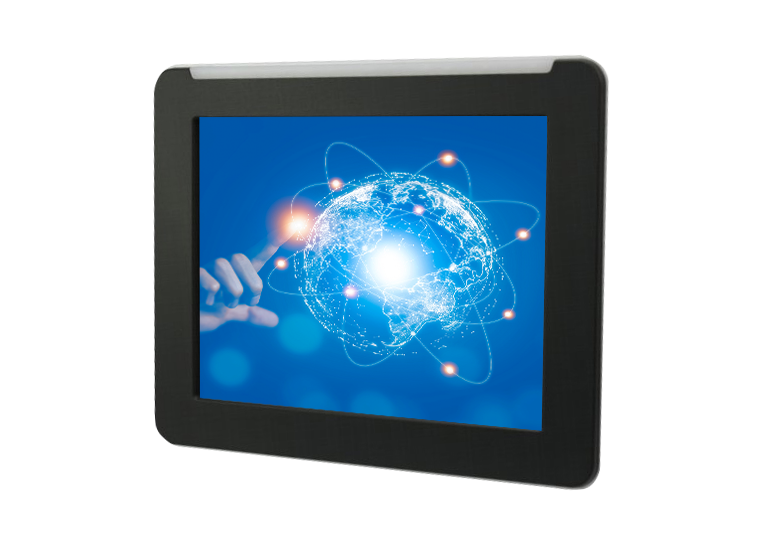

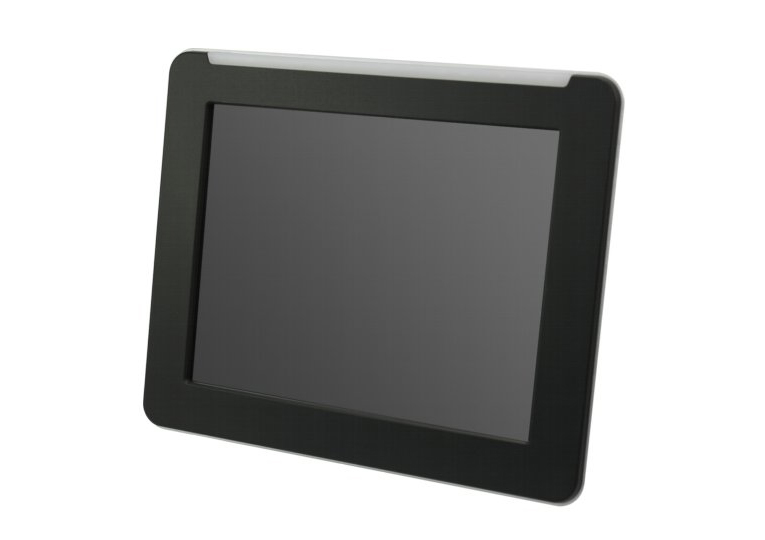

The MRS-801-RE ARM-based panel PC is comprising an all-in-one-panel PC with an 8” LCD display. It utilizes the single-core 1.0GHz Freescale i.MX6 solo in a fanless enclosure and is equipped with 1GB DDR3 memory to provide high-computing and reliable performance.


Touch screen and operating system

 The MRS-801-RE has a 5-wire resistive touch screen that has a longer lifetime compared with that of a 4-wire resistive touch screen. Its front bezel has an IP65 rating to make it dust-tight and protected from moisture. Furthermore, there is a programmable LED light bar at upper front side, which the user can control to show green or red light with applications under an Android or Linux operating system. Moreover, MRS-801-RE supports the popular Android 4.3 operating system and Linux system with Kernel 3.0 or above. Customers can contact Ibase with regard to the operating system they need.


Industrial design

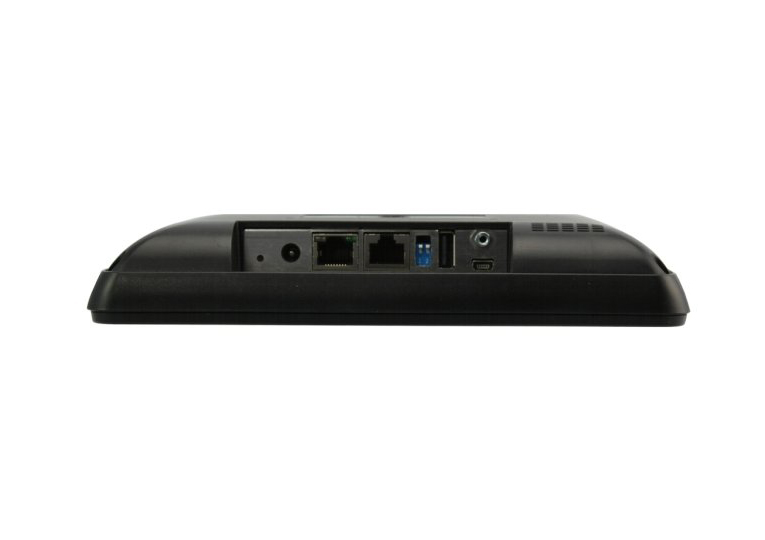

 Unlike consumer ARM-based products, MRS-801-RE supports a wide-range operating temperature, from 0°C to 50°C and can be stored under -20°C to 60°C. As for the power input, not only does it support 12VDC, it also has a PoE (power on Ethernet) feature.  Standard to the MRS-801 is a 4-wire RS-232 and RS-485 interface at the edge I/O. And it is quite simple to adjust to RS-232 or RS-485 mode via an external DIP switch. A USB 2.0, Gigabit Ethernet and an OTG USB port are available.

With the above-mentioned features, MRS-801-RE can be easily applied to manufacturing control, building automation, door-sign and other applications.

Display Size 8” TFT LCD
Max. Resolution 800 x 600
Luminance (cd/m2) 250
Contrast 500:1
Max. Color 262K
View Angle (H/V) 140/120
Backlight Lifetime(hrs) 30000
Touch Type Resistive
Touch Interface USB
Light Transmission (%) 80
Point of touch 1
USB 3.0/ 3.1 0
USB 2.0 1x USB (USB Host. A-Type)
1x USB OTG (mini AB type)
RS-232/422/485 Selectable in BIOS 1x (via RJ-45 connector)
RS-232 0
LAN 1x GbE w/ PoE
Additional Graphics None
Audio None
Digital I/O None
Power Connector Power jack
Power Button Reset button
Dimensions (mm) 211.6 x 171.2 x 33.5
Net Weight (kgs) 1.1
Processor NXP i.MX6 Cortex A9 Solo (Single-Core @ 1GHz)
Memory 1GB DDR3
Thermal Design Fanless
Membrane Control N/A
Built-in Speaker/MIC N/A
Internal Expansion Bus 1x Mini PCI-E slot (full-siz/half-size)
Expansion Slot None
Wireless Optional Wi-Fi/BT
HDD 1x 4GB eMMC on board
Removable 1x SD card slot
Power Input Range 12V DC / PoE+
Chassis Material Plastic
Color (Front/Back) Black / Black
IP Rating IP65 front bezel
Mounting VESA 75x75 mm
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Storage Humidity 10%~90% (non-condensing)
Certification CE / FCC Class B
Supported Operating Systems Android 4.3
MRS-801-RE RISC 8” Panel PC with resistive touch, I.MX6 Cortex A9 CPU, 1GB DDR3 onboard, supports Android, w/ 60W power adaptor
