Network Appliance

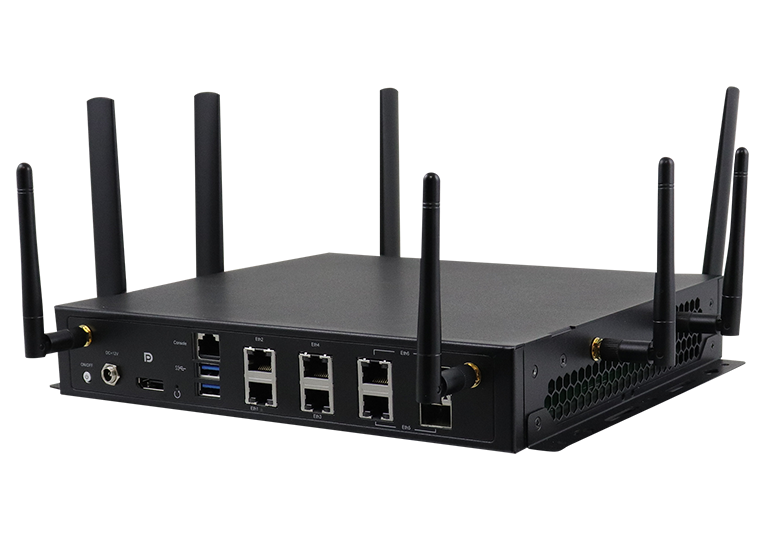

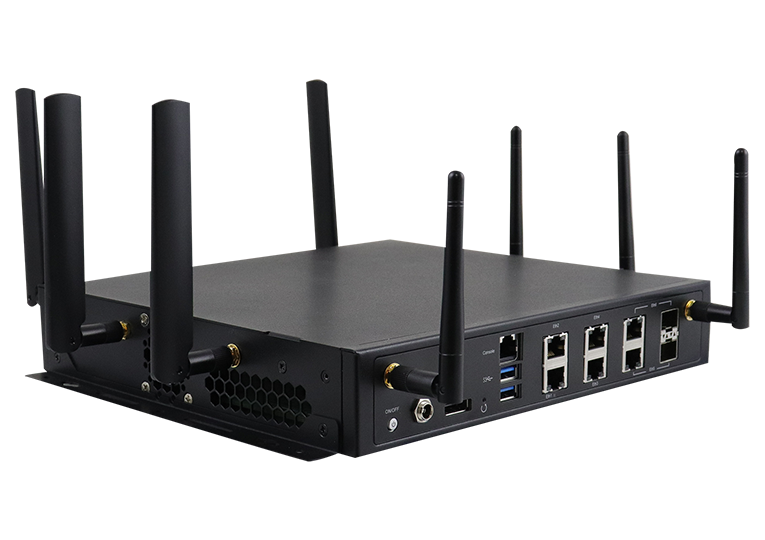

INA1600

Desktop uCPE/SD-WAN Appliance with AMD Ryzen™ Embedded V1605B/R1505G/R2000 & up to 6x GbE Ports

  • AMD Ryzen™ Embedded V1605B/R1505G/R2000
  • 2x DDR4 SO-DIMMs; Max. 32GB (ECC/non-ECC)
  • 4x GbE RJ45
  • 2x GbE RJ45 or SFP combo ports (for INA1600V only)
  • 1x Mini PCI-E slot
  • 2x M.2 slot
  • Supports WiFi/WiFi 6, LTE/5G, with up to 8 antennas
  • NEW
  • 5G
CPU INA1600V: AMD Ryzen™ Embedded V1605B
INA1600R: AMD Ryzen™ Embedded R1505G
Chipset N/A
Memory 2x DDR4 SO-DIMMs
Up to 3200MHz, Max. 32GB (ECC/non-ECC)
Display 1x DisplayPort
Ethernet INA1600V:
4x Intel® I211-AT GbE
1x Intel® i350-AM2 (2x GbE RJ45 or SFP combo ports)
INA1600R: 4x Intel® I211-AT GbE
Bypass 1x segment, LAN 1/2
Expansion 1x Mini PCI-E slot
1x M.2 slot (B-key 3042, PCI-E(x1) & USB 3.0 signal)
2x Micro SIM for M.2 or Mini PCI-E 4G/LTE module
1x M.2 slot (B/Mkey 3080, PCI-E(x2) & USB 3.0 & SATA)
IPMI N/A
Storage 1x 2.5" SATA drive bay
TPM TPM 2.0
I/O 3x LED (Status/HDD/Power)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 3.0
1x DisplayPort
Power Supply Full range 84W adaptor / 12V
Dimensions 250(W) x 231(D) x 44(H) mm
9.84" (W) x 9.09" (D) x 1.73" (H)
Weight 5.3 kg (11.68 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC
INA1600V Desktop Appliance, AMD Ryzen™ Embedded V1605B, 2x DDR4 SO-DIMMs,4x GbE RJ45 w/ 1 Pair of Bypass,2x GbE RJ45 or SFP combo ports, 84W Adaptor,DisplayPort, Barebone without RAM/HDD/Drive Bay Kit
INA1600R Desktop Appliance, AMD Ryzen™ Embedded R1505G,2x DDR4 SO-DIMMs, 4x GbE RJ45 w/ 1 pair of Bypass,84W Adaptor, DisplayPort, Barebone without RAM/HDD/Drive Bay Kit
