Network Appliance

FWA8800

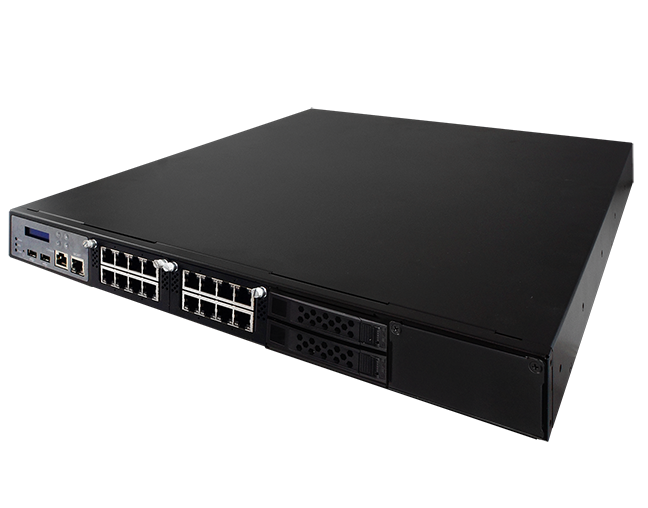

Enterprise 1U Network Appliance with AMD EPYC™ Embedded 3000 Series & up to 16 GbE Ports

  • AMD EPYC™ Embedded 3000 Series processor
  • 4x DDR4 DIMMs; Max. 64GB UDIMM (ECC or non-ECC) or 128GB RDIMM
  • 2x NIC module slots, Max. 16 GbE Ports
  • Optional 2x swappable 2.5" drive bay
  • Optional IPMI 2.0 module
  • 1x M.2 slot

The FWA880 is the world’s first network appliance based on the AMD EPYC™ Embedded 3000 Series processors. The high-performance FWA8800 1U rackmount appliance houses the IBASE MBN806 motherboard that is powered by a 1.5GHz (Max. Boost 3.1GHz), eight-core EPYC Embedded 3201 SoC, supporting up to 64GB UDIMM or 128GB RDIMM DDR memory with a frequency of 2667MHz in ECC or non ECC version. With the FWA8800 integrated with the AMD EPYC™ Embedded 3000 Series, network vendors can benefit significant boost in processor performance, flexible system configuration and reliable system operation.

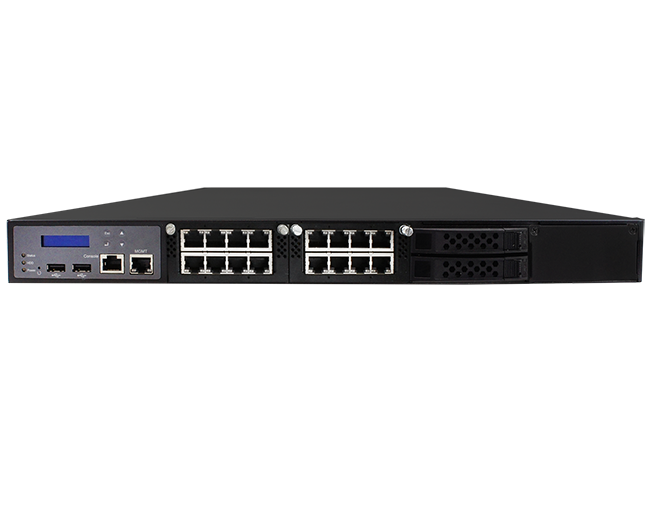

The FWA8800 is optimized for throughput performance and high-density deployments in applications such as network security, VPN/SDN/NFV/SD-WAN, and data management and analytics. The highly scalable FWA8800 utilizes the Intel® I210-AT Ethernet controller and two NIC modules to accommodate two IBN cards for up to 16 Gigabit Ethernet ports. Customers may opt to have four NIC modules in the system for a maximum of 32 GbE ports. Expansion and connectivity available come in the form of a PCIe(x8) slot for standard PCIe cards, 2x SATA III ports, 2x USB 2.0 ports and an M.2 slot with PCIe(x4) and SATA signals. Alongside the Ethernet ports is an LCM with 4-key keypad. A VGA output can be added through an optional IPMI module.

CPU AMD EPYC™ Embedded 3000 series processor
Chipset N/A
Memory 4x DDR4 DIMMs up to 2666MHz; Max. 64GB UDIMM (ECC or non-ECC) or 128GB RDIMM
Display 1x VGA
1x LCM 2x16 character with 4 keypads
Ethernet On board: 1x Intel® I210-AT GbE
NIC module slots: 2x IBN cards, Max. 16 GbE
Bypass Depending on IBN modules SKU
Expansion 1x PCI-E x8 slot on rear panel
IPMI N/A
Storage 2x 2.5" or 1x 3.5" SATA drive bay
1x M.2 slot (M-key 2280, PCI-E x4 & SATA signal)
TPM TPM 2.0
I/O 1x LCM
3x LED (Power/ HDD/ Status)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 2.0
1x MGMT (Shared with IPMI NC-SI port)
Power Supply Full range 250W ATX power supply or 300W 1+1 Redundant power supply
Dimensions 438 mm (W) x 500 mm (D) x 44 mm (H)
17.24" (W) x 19.68" (D) x 1.73" (H)
Weight 12kg (26.4 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC

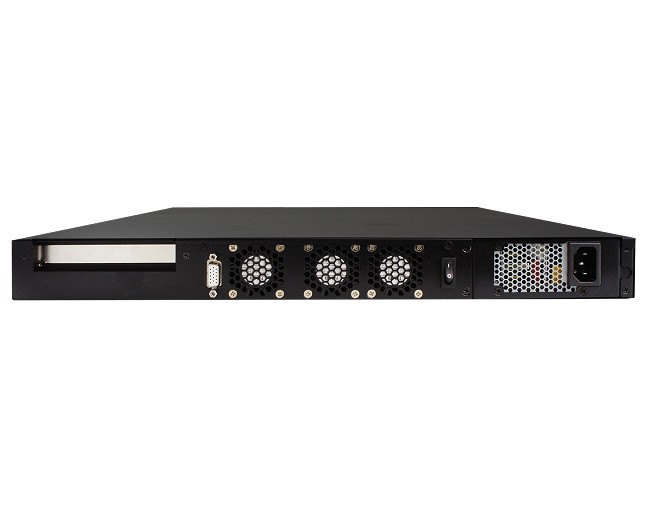

FWA8800-E8 1U Rackmount Appliance, MBN806 AMD EPYC™ Embedded 3201 8C/8T SoC, 4x DDR4 DIMMs, Max. 16 GbE Ports, 250W PSU, CPU cooler, 1x PCI-E x8 slot, Barebone without RAM/HDD/Drive Bay Kit/IBN Card*
* For a complete system, IBN modules & some components must be ordered.

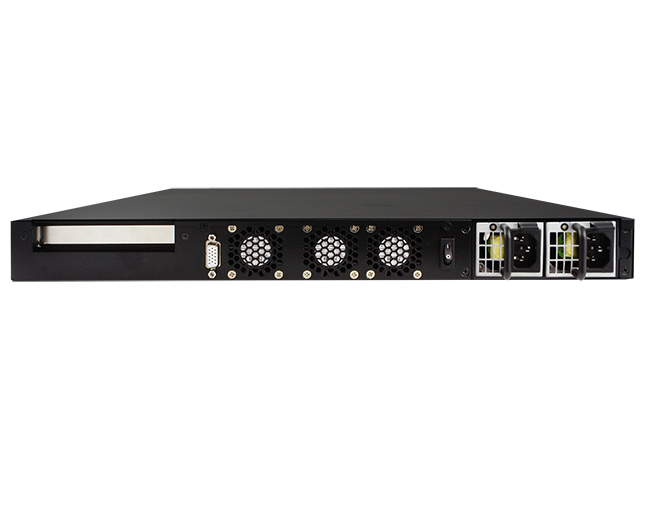

FWA8800-E8R 1U Rackmount Appliance, MBN806 AMD EPYC™ Embedded 3201 8C/8T SoC, 4x DDR4 DIMMs, Max. 17 GbE Ports, 300W RPSU, CPU cooler, 1x PCI-E x8 slot, Barebone without RAM/HDD/Drive Bay Kit/IBN Card*
* For a complete system, IBN modules & some components must be ordered.
