Network Appliance

FWA6706R

Entry 1U Network Appliance with Intel® Celeron® Processor N3350 & 6 GbE Ports

  • Intel® Celeron® Processor N3350, Dual-Core 1.1GHz
  • 2x DDR3L SO-DIMMs; Max. 16GB (non-ECC)
  • 6x PCI-E GbE ports; 1x advanced LAN Bypass pair
  • 1x Mini PCI-E slot
  • 1x CF slot

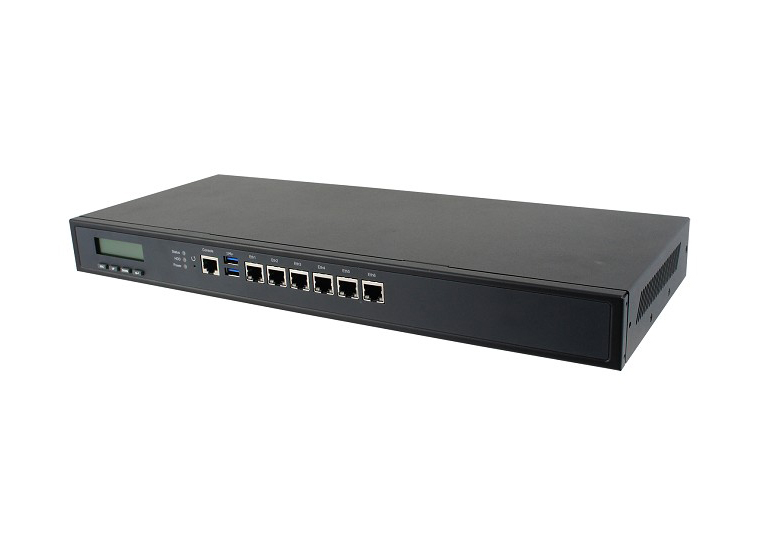

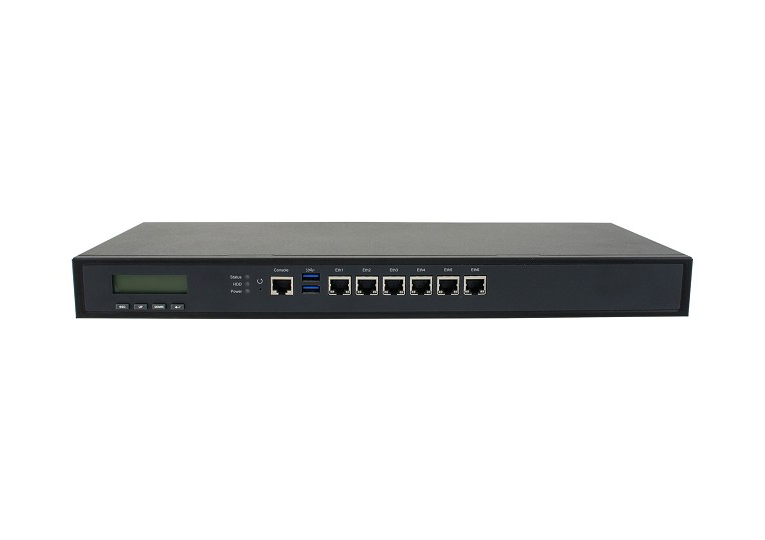

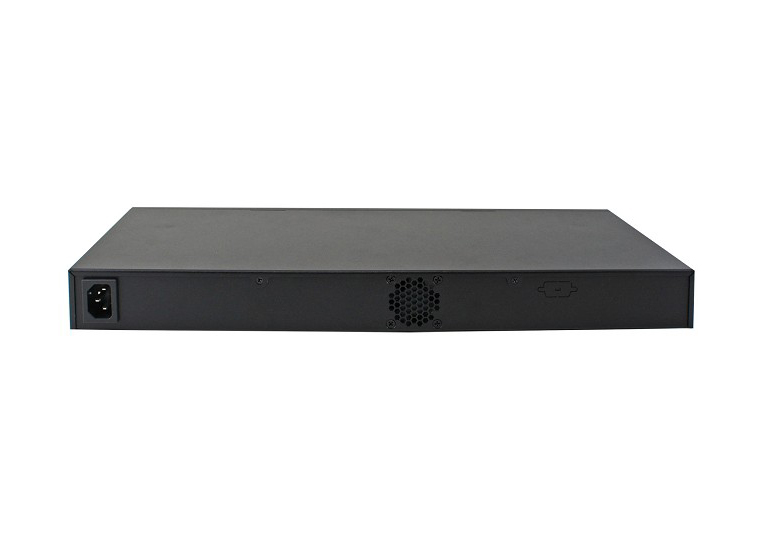

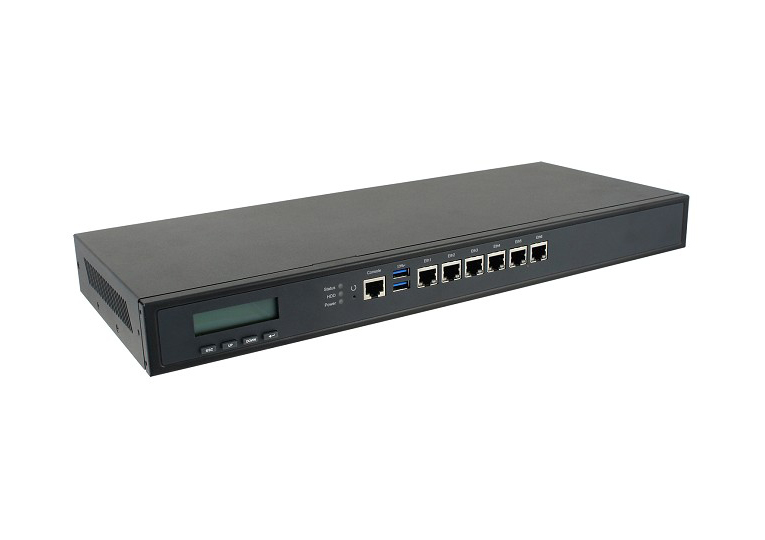

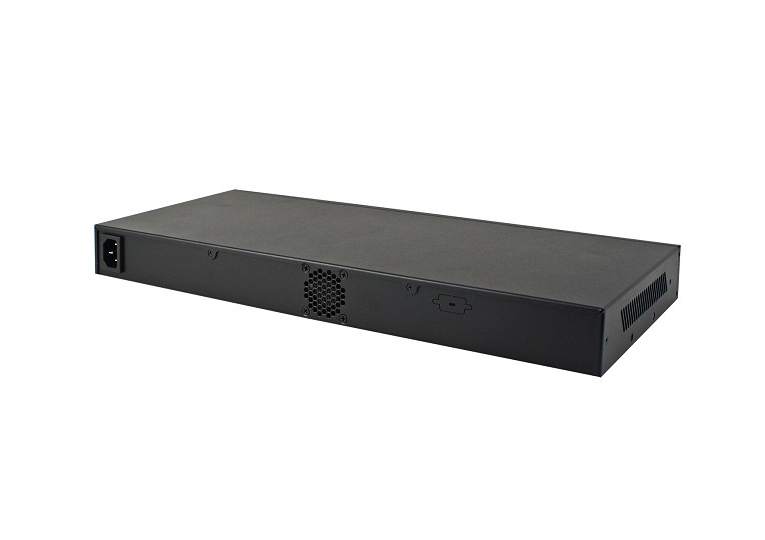

The FWA6706R is an entry-level network appliance in a 1U-rackmount form factor, with a smart fan solution. It ensures rapid and stable deployment in network environments for small to medium-sized enterprises. Both models support 6x GbE ports and a pair of advanced LAN bypass function that allows for uninterrupted operation of a serial network and prevents node failure on the network in the case of power failure. Measuring 438(W) x 180(D) x 44mm(H), the FWA6706R is built with a full-range 65W open-frame power supply and a programmable LCM display.

FWA6706R
CPU Intel® Celeron® Processor N3350, Dual-Core 1.1GHz
Chipset N/A
Memory 2x DDR3L SO-DIMMs up to 1866MHz, Max. 16GB (Non-ECC)
Display 1x VGA via pin-header
1x LCM
Ethernet 6x Intel® I211-AT GbE
Bypass 1x segment, LAN 5/6
Expansion 1x Mini PCI-E slot (PCI-E & USB signal)
IPMI N/A
Storage 1x 2.5" SATA drive bay
1x CF slot
TPM TPM 1.2
I/O 1x LCM
3x LED (Power / HDD / Status)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 3.0
Power Supply Full range 65W open frame
Dimensions 438 mm (W) x 180 mm (D) x 44 mm (H)
17.24" (W) x 7.09" (D) x 1.73" (H)
Weight 3 kg (6.62 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC
FWA6706R 1U Rackmount Appliance, MBN501 Intel® N3350 Dual-Core 1.1GHz, 2x DDR3L SO-DIMMs, Max. 6 GbE Ports, 65W Open Frame, CPU Cooler, Barecone without RAM/HDD
DATASHEETS FWA6706R
CATALOGS Network Appliances (Vol.23.12)
MANUALS FWA6706R

Drivers

Model Chipset Video Audio Network Others
FWA6706R / FWA6706D

Intel(R) Chipset Software Installation Utility

Windows 10

Intel(R) Apollolake Graphics Driver

Windows 10

Intel(R) I21X Gigabit LAN

Windows 10

Intel(R) TXE Drivers

Windows 10

Intel(R) Serial IO Drviers

Windows 10
