Network Appliance

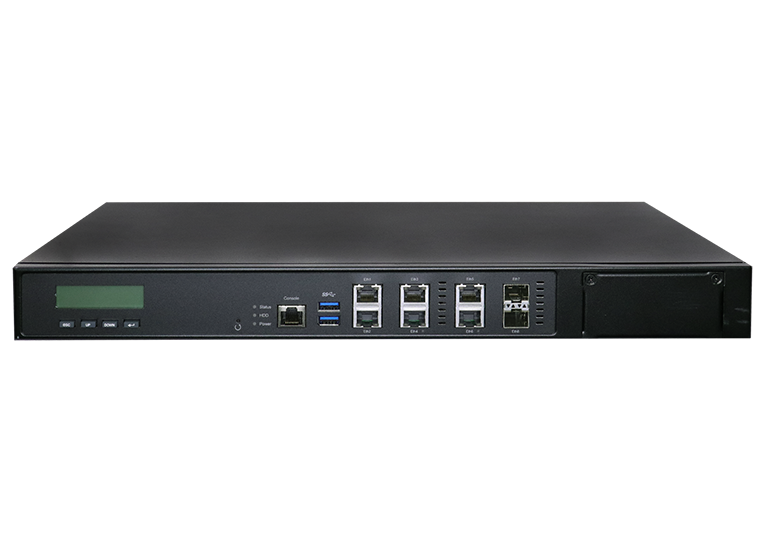

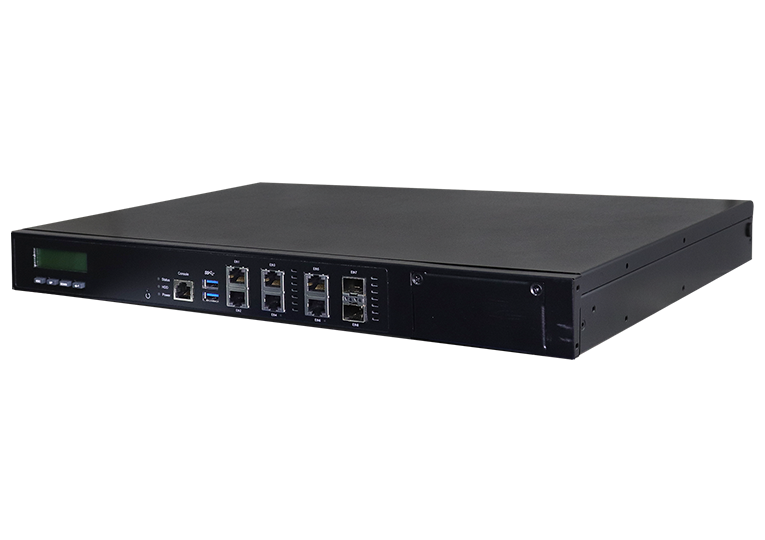

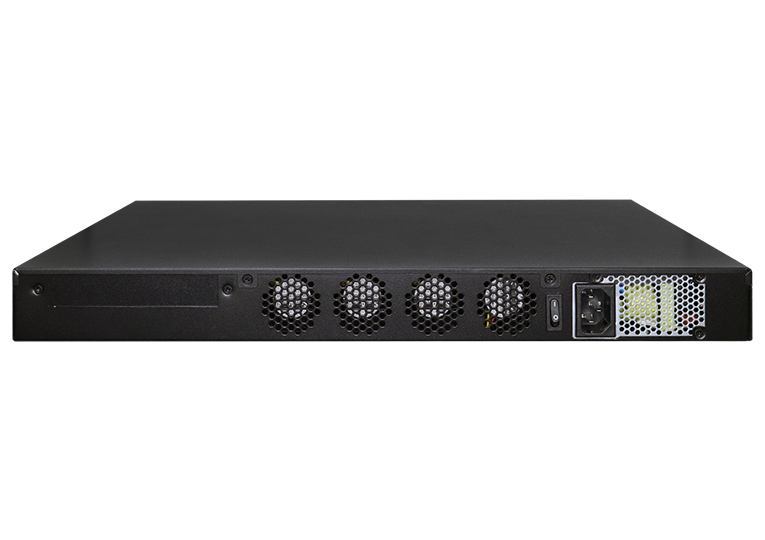

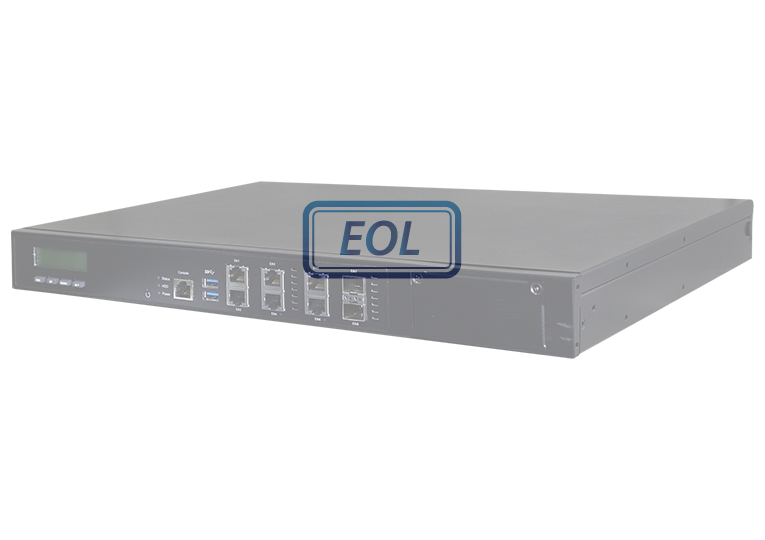

INA3604

Enterprise 1U Network Appliance with Intel® Xeon® E-2300 Processors & up to 16 GbE Ports

  • Intel® Xeon® E-2300 Processors with C252 PCH
  • 2x DDR4 UDIMM / RDIMM , Max. 64GB ( ECC )
  • 6x RJ45 GbE with 2 pairs bypass on board
  • 2x Gbe SFP ports on board
  • Optional NIC slot
  • 1x PCI-E x8 expansion slot
  • 500W AC single power supply
CPU LGA1200 Socket for Intel® Xeon® E-2300 Processors
Chipset Intel® C252 PCH chipset
Memory 2x DDR4 UDIMMs
Max. 64GB
Display 1x LCM
Ethernet 6x Gbe RJ45 Ports (Intel i226V) with 2 pairs bypass
2x Gbe SFP port (Intel i210IS)
Bypass 2-Segments, LAN3/4 & 5/6
Expansion 1x PCI-E(x8) slot (8-lane) for INA3604
IPMI N/A
Storage 1x SATA DOM
1x internal 2.5” SATA SSD/HDD
TPM TPM 2.0
I/O 1x LCM
3x LED (Power/ HDD/ Status)
1x Reset button
1x RJ45 console
2x USB3.2
Power Supply Full range 500-watt single power supply
Dimensions 438 (W) x 384.2 (D) x 44 (H) mm
17.24” (W) x15.13” (D) x 1.73” (H)
Weight 7.5 kg (16.53 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10~ 95%
Certification CE/FCC
INA3604 INA3604 1U Rackmount Appliance, MBN808 Intel® RKL-E, C252 PCH, 2x DDR4 DIMMs, Max. 16 LAN Ports, 500W PSU, CPU cooler, 1x PCI-E(x8) slot, 1x LCM, Barebone without CPU/RAM/HDD/IBN Card
DATASHEETS INA3604
