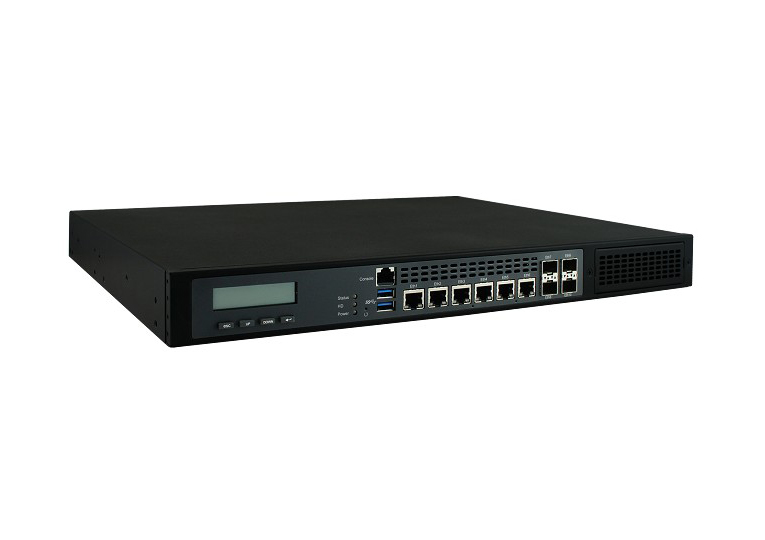

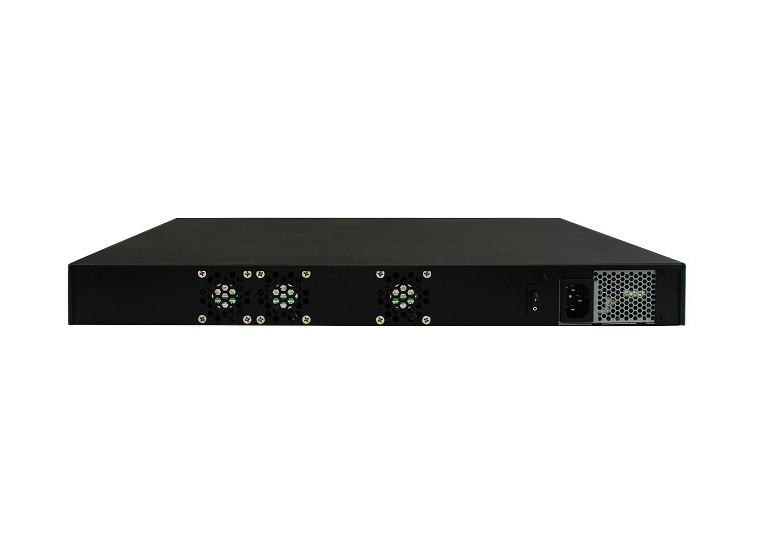

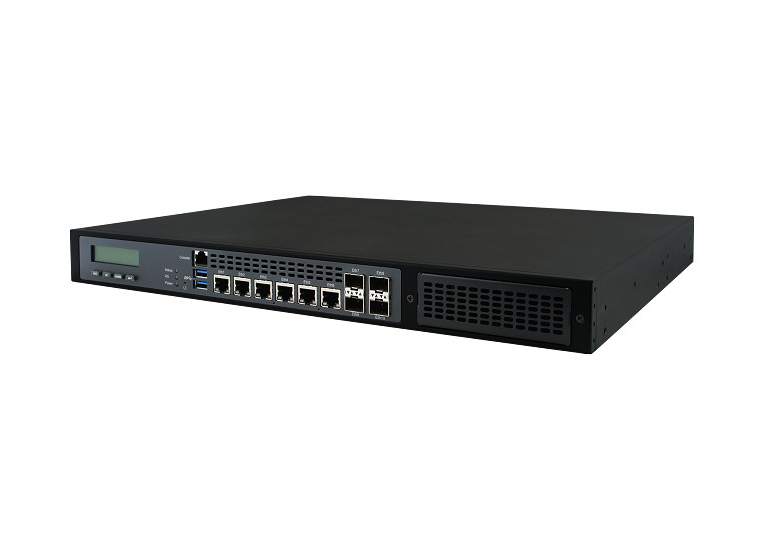

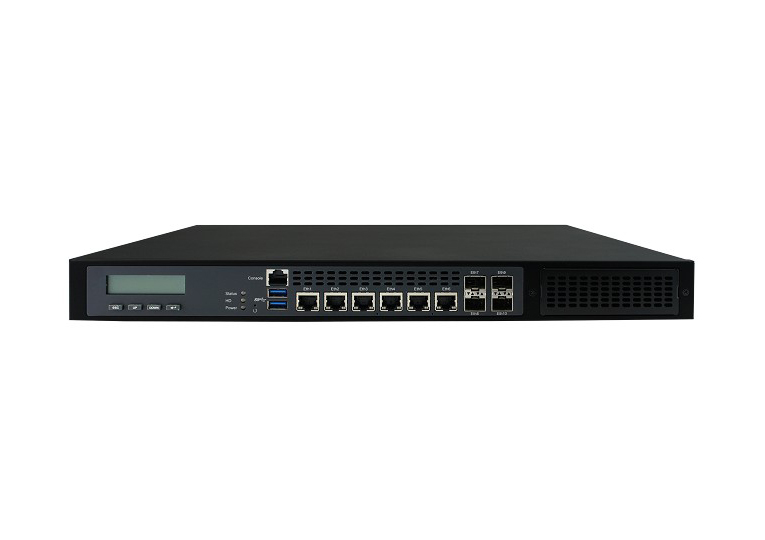

Network Appliance

FWA8506

Enterprise 1U Network Appliance with Intel® Atom® Processor C3000 Series & 6x GbE & 4x 10GbE Ports

  • Intel® Atom® Processor C3758
  • 2x DDR4 DIMMs; Max. 32GB (UDIMM ECC / non-ECC) or 64GB (RDIMM)
  • 6x PCI-E GbE RJ45 ports; 2x Advanced LAN Bypass pairs
  • 4x 10GbE SFP+ ports
  • 1x PCI-E slot, 1x CF slot
CPU Intel® Atom® Processor C3758 (8 Cores, 2.2GHz)
Chipset N/A
Memory 2x DDR4 DIMMs up to 2400MHz,Max. 64GB RDIMM, Max. 32GB UDIMM (ECC or non-ECC)
Display 1x LCM
Ethernet 6x Intel® I211-AT GbE
1x Inphi CS4223 for 4x 10GbE
Bypass 2x segment, LAN 3/4 & 5/6
Expansion 1x PCI-E x8 slot (4-lane)
IPMI N/A
Storage 2x 2.5" SATA drive bay
1x CF slot
TPM TPM 1.2
I/O 3x LED (Power / HDD / Status)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 3.0
Power Supply Full range 250W ATX power supply
Dimensions 438 mm (W) x 340 mm (D) x 44 mm (H)
17.24" (W) x 13.38" (D) x 1.73" (H)
Weight 6.50 kg
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5 ~ 90%
Certification CE/FCC
FWA8506 1U Rackmount Appliance, MBN802 Intel® Atom® Processor C3758, 2x DDR4 DIMMs, 6 GbE RJ45, 4 10GbE SFP+, 250W PSU, CPU cooler, Barebone without RAM/HDD/Drive Bay Kit
*Must Order Component BOM
DATASHEETS FWA8506
CATALOGS 2022 Networking Appliances Catalog
MANUALS FWA8506

Drivers

Model Chipset Video Audio Network Others
FWA8506

Intel Atom C3758

Windows 10

Intel LAN

Windows 10
