Network Appliance

FWA6706D

Compact & Slim Fanless Network Appliance with Intel® Celeron® Processor N3350 & 6 GbE Ports

  • Intel® Celeron® Processor N3350, Dual-Core 1.1GHz
  • 2x DDR3L SO-DIMMs; Max. 16 GB (non-ECC)
  • 6x PCI-E GbE ports; 1x advanced LAN Bypass pair
  • 1x Mini PCI-E slot
  • 1x CF slot
  • Fanless

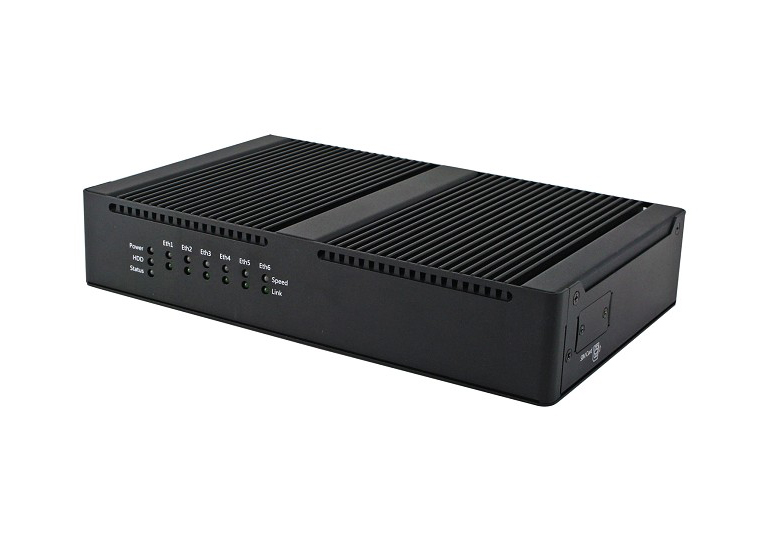

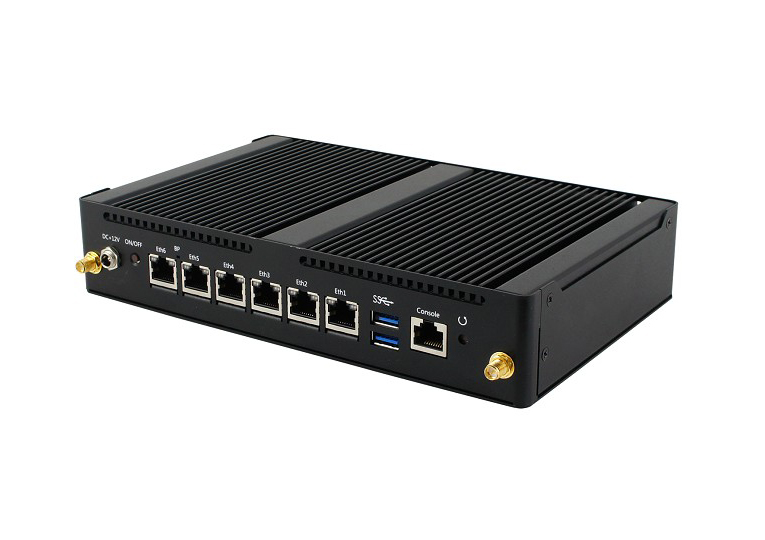

The FWA6706D is a compact yet full-featured network appliance designed with high performance and low power consumption. It has a fanless cooling chassis with a small footprint for stable operation and suitable in applications where heat generation, noise levels and space constraints are concerns including private network, content filtering, network security gateway, and firewall. This innovative product combines the advantages of a dual-core processor, high-speed DDR3, Gigabit Ethernet, SATA III and USB 3.0 and other rich interface in a size smaller than a B5-size compartment. This model comes with a 40W power adaptor and dimensions of 227(W) x 142(D) x 44mm(H).

FWA6706D Desktop Network Appliance
CPU Intel® Celeron® Processor N3350, Dual-Core 1.1GHz
Chipset N/A
Memory 2x DDR3L SO-DIMMs up to 1866MHz, Max. 16GB (Non-ECC)
Display 1x VGA via pin-header (by project)

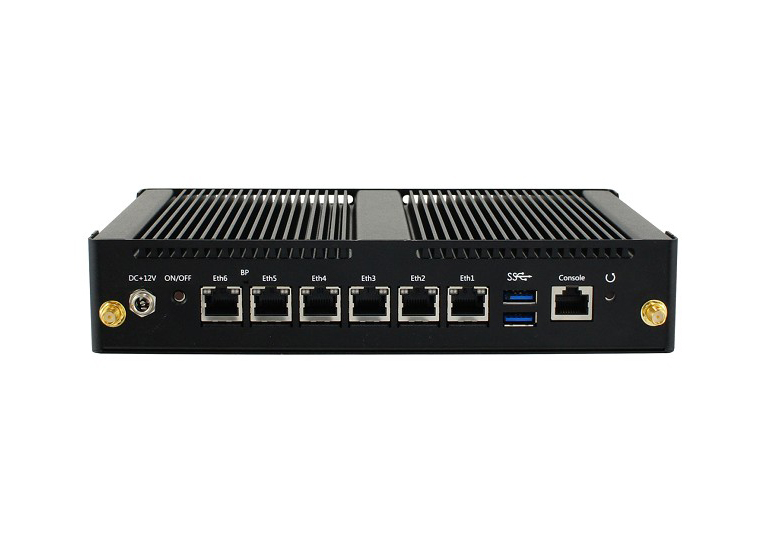

Ethernet 6x Intel® I211-AT GbE
Bypass 1x segment, LAN5/6
Expansion 1x Mini PCI-E (PCI-E & USB signal)
IPMI N/A
Storage 1x 2.5" SATA drive bay
1x CF slot
TPM TPM 1.2

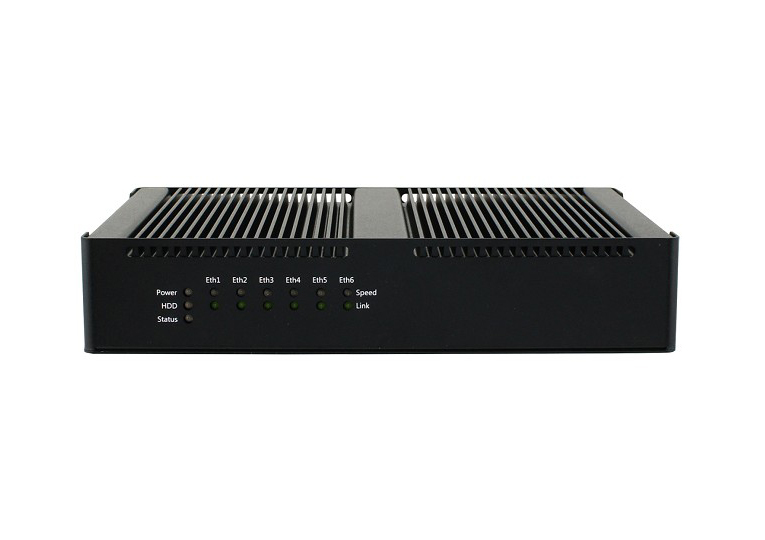

I/O 3x LED (Power / HDD / Status)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 3.0
Power Supply Full range 40W power adaptor / 12V
Dimensions 227 mm (W) x 142 mm (D) x 44 mm (H)
8.94" (W) x 5.59" (D) x 1.73" (H)
Weight 2 kg (4.41 lbs)
Operating Temperature SSD: 0°C ~ 40°C (32°F ~ 104°F)
HDD: 0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature -20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC
FWA6706D Desktop Appliance, Intel® Celeron® Processor N3350, 2x DDR3L SO-DIMMs, 6 GbE Ports, 40W Adaptor, 2.5” HDD Bracket, Barebone without RAM/HDD
