Intelligent Transportation

MPPC1501PC

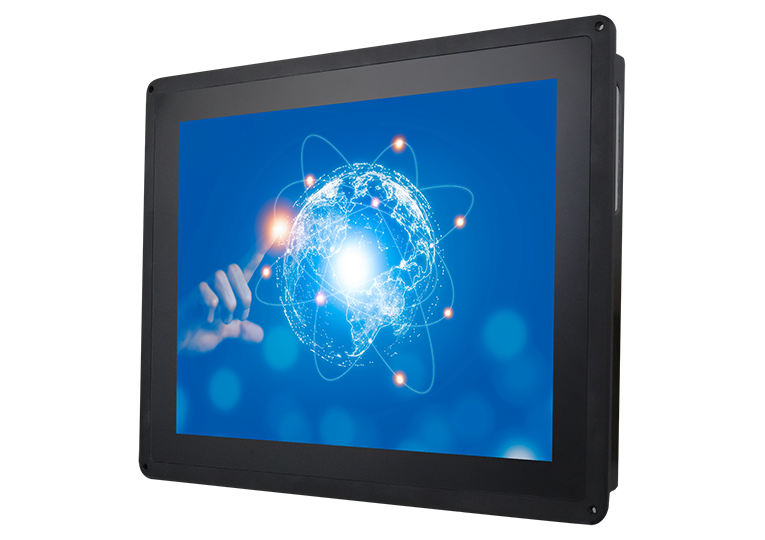

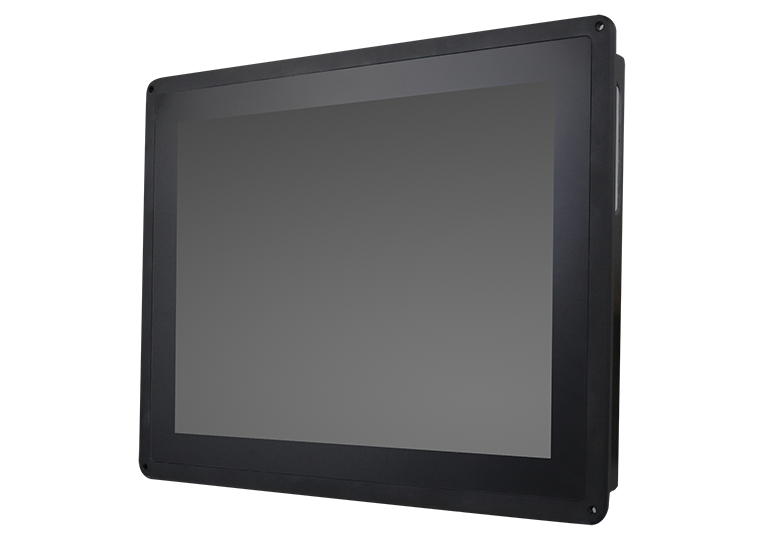

EN50155 Certified Fanless 15” Railway Panel PC with Intel® Atom® x7-E3950 processor

  • Intel® Atom® x7-E3950 Processor
  • EN50155 (2017) & EN45545-2 certified
  • Fully IP65 waterproof protection
  • Supports ultra-long-life LCD panel, M12 connectors

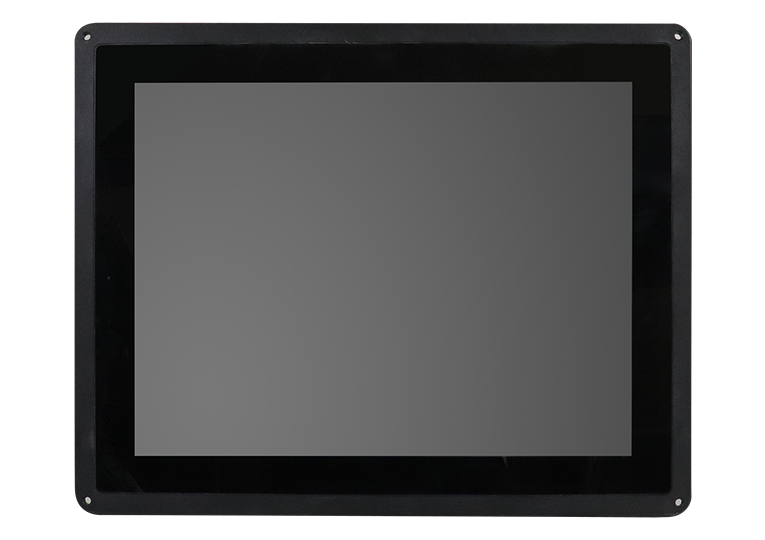

  • Flat bezel design, projected capacitive 15" touch screen
  • Optional wireless communication
  • Supports 24V DC or 72/110V DC power input
  • Fanless
  • Wide Temperature
  • F Panel IP65
  • EN50155
  • EN45545
CPU Type Intel® Atom® x7-E3950 1.6GHz, up to 2.0GHz
Memory Max DDR3L 8GB, Default 4GB
Display Size 15”
Max. Resolution 1024x768
Luminance (cd/m2) 500
Contrast 1800:1
Max. Color 16.7M
View Angle (H°/V°) 178/178
Backlight Lifetime(hrs) 70,000
Touch Type Projected capacitive
Touch Interface USB
Light Transmission (%) 89
Point of touch 10

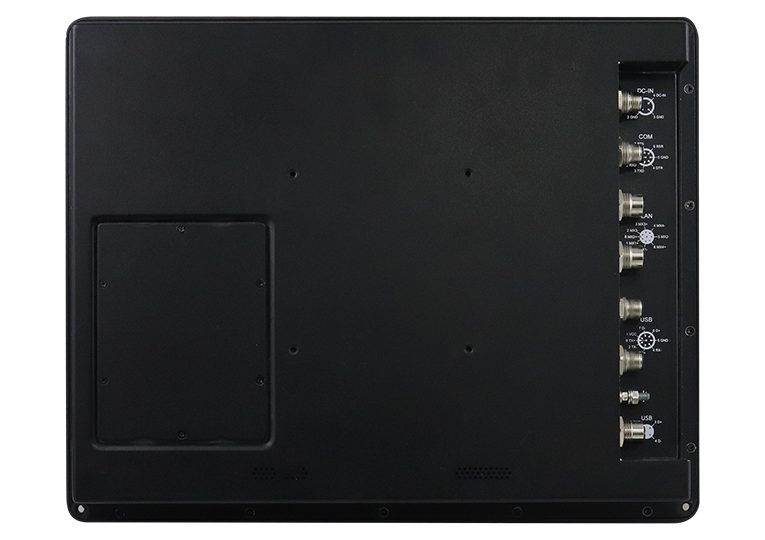

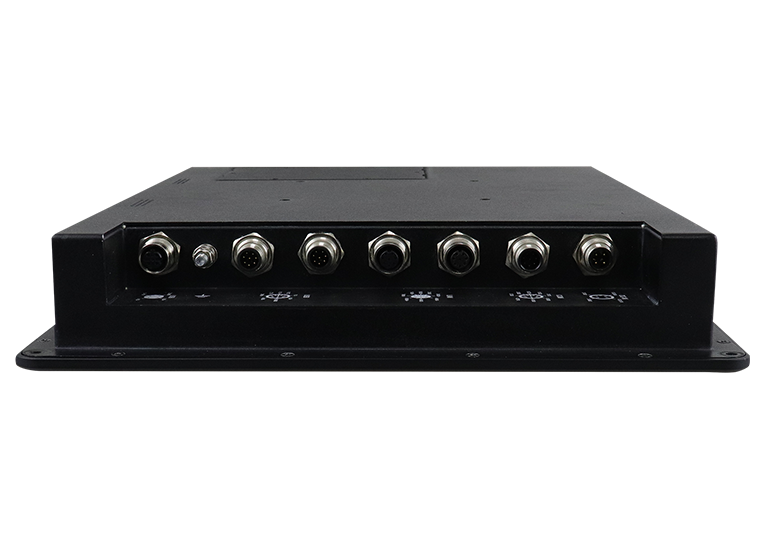

I/O Interface 2x M12 A-code 8P GbE
2x M12 A-code 8P USB 3.0
1x M12 D-code 4P USB 2.0
1x M12 A-code 8P for RS-232/422/485
1x M12 A-code 4P DC-input
Power Button Membrane key
Power Input Range DC24V or DC 72V/110V
Membrane Control Brightness up/down, volume up/down, power on/off
Audio 2x speaker, optional
Internal Expansion 1x miniPCI-E Full sized
1x miniPCI-E Half sized
Wireless Optional, Via miniPCI-E device
Storage 1x 2.5” HDD space, default 128G SSD
Thermal Design Fanless
Construction Aluminums
Chassis Color (Front/ Back) Black/Black
IP Rating IP65
Mounting VESA 100x100/Rack mount
Dimensions 382.1(W) x 304.8(D) x 54.4(H)mm
15.04”(W) x 12”(D) x 2.14”(H
Net Weight 6.36 kgs
Operating Temperature -30°C ~70°C (-22°F ~ 158°F) with SSD, not including add-on cards
Storage Temperature -40°C ~ 85°C (-40°F ~185°F)
Storage Humidity 10%~90% @40°C (non-condensing)
Certified EN50155:2017, EN45545-2
CE/FCC class-A
Operating Systems Windows 10 64bit/ Linux Kernel 4.X
MPPC1501PC 15” EN50155 Certified Panel PC with IB818-I50, Intel® Atom® x7-E3950 Processor, 4GB DDR3L memory, 128G SSD Storage, M12 connectors, DC 24V power input, no adaptor
MPPC1501PCH 15” EN50155 Certified Panel PC with IB818-I50, Intel® Atom® x7-E3950 Processor, 4GB DDR3L memory, 128G SSD Storage, M12 connectors, DC 72/110V power input, no adaptor
