Intelligent Transportation

MPT-8000R

EN50155/EN45545 Certified 10th Gen Intel® Core™ Processor Railway Computer System with M12 Connection and Dual WWAN

  • EN50155 (2021) / EN45545-2 certified
  • AI solution for Transportation
  • Supports 10th Gen Intel® Core™ Desktop processors
  • Up to 10x GbE ports (8x with PoE capability)
  • Optional 10G LAN
  • Supports Intel® Movidus Vision Acceleration M.2 modules
  • Supports Wi-Fi 6 CNVi, dual WWAN channels, RAID 0/1/5
  • 1x USB Type-C with graphics output for quick setting and diagnostics
  • PoE
  • Wide Temperature
  • Wide-range power input
  • IP40
  • EN50155
  • EN45545
System Mainboard MBT-8001RW
CPU Type 10th Gen Intel® Core™ Desktop processors
Processor Speed 4.5GHz
Memory 2x DDR4-2666 SO-DIMM, 2x 8GB (default)
Maximum size supported: 128GB

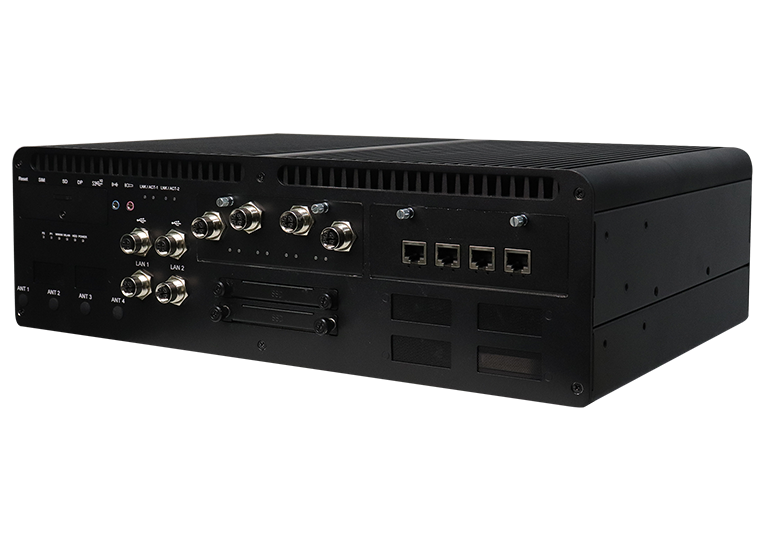

Front panel I/O 2x Accessible 2.5" device bay (SSD/HDD)
2x M12 X-code 8-pin for GbE LAN, isolated
1x M12 4-pin A-code for USB 2.0, isolated
1x M12 4-pin A-code for USB 1.1, isolated
1x 3.5mm pink audio connector for MIC-Input
1x 3.5mm blue audio connector for Line in
4x SMA Antenna holes with cap
2x PCI-Ex4 card slots for IDT8102/IDT 7204 (With cover when empty)
　- IDT8102: 2x 10G LAN card
　- IDT7204: 4x 1G PoE card
2x External accessible SIM socket
1x Micro SD card socket
1x Recessed Access Tach-switch for System Reset
1x USB type-C with graphics (No PD function)
1x USB3.2 Gen.2 type-A
Indicators: Four light-pipe for four status LED
　- 1x 0402 SMT green LED for power status
　- 1x 0402 SMT white LED for storage activity status
　- 1x 0402 SMT blue LED for WLAN activity status
　- 1x 0402 SMT amber LED for WWAN activity
　- 2x 0402 SMT green LED, programmable

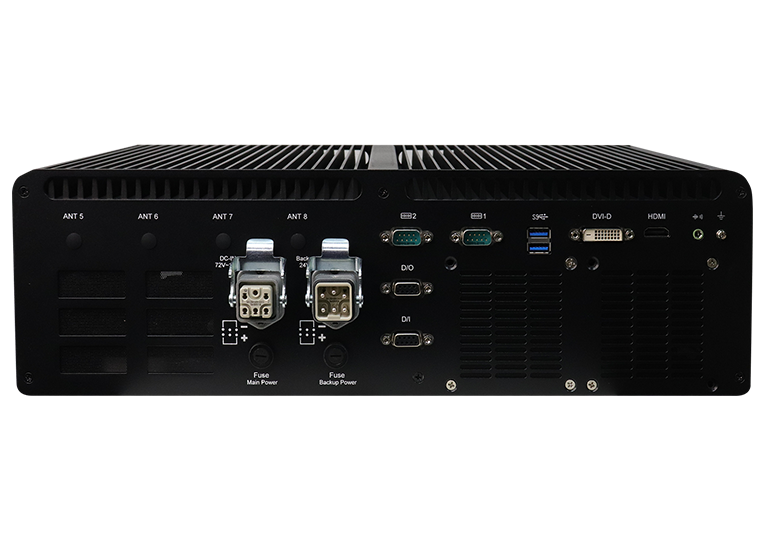

Rear Panel External I/O 1x Main power input, Staubli connector
2x Removable with screw lock FUSE holder
1x Backup power source, 24VDC only
1x DVI-D output
1x HDMI output
1x USB3.2 Gen.1 type-A
1x 3.5mm green audio connector for Line-out
1x Male DSUB9 for RS-485, isolated
1x Male DSUB9 connector for RS-232/485, isolated
1x Female DSUB9 for 8x DO and ground by cable, isolated
1x Female DSUB9 for 8x DI and ground by cable, isolated
1x M4 with washer screw hole for grounding connection
4x SMA Antenna holes with cap
Storage 2x 2,5" Removable device bay for SSD devices
2x M.2 M-key SSD devices
RAID 0/1/5 supported, Max. 4x SATA devices
Expansion slots 1x mPCI-E full/half-size socket
1x 3042/52 M.2 B-Key socket for WWAN (supports SIM1)
　- This M.2 socket comes with USB2.0/3.0/PCI-Ex1 interface only
1x 3042/52 M.2 B-Key socket for WWAN (supports SIM2)
　- This M.2 socket comes with USB2.0/PCI-Ex1 interface
1x 2242/80 M.2 M-key socket for SSD/VPU/WLAN card
1x 2242/80 M.2 M-key socket for SSD/VPU/WLAN card (NVMe support)
1x 2230 M.2 E-Key socket for WLAN (CNVi support)
Power Supply Main: 72V/110VDC
Second: 24V DC only, once the main power loses, switch to
second power automatically
Construction Metal
Chassis Color Black
Mounting 19” Rack mount
Dimensions 482 (W) x 308 (D) x 132 (H) mm
18.97” (W) x 12.13” (D) x 5.2” (H)
Operating Temperature -10°C~60°C (14°F~140°F)
Storage Temperature -40°C ~ 85°C (-40°F~185°F)
Relative Humidity 10 ~ 95% @ 45°C, (non-condensing)
Vibration EN61373
Shock EN61373
Certified EN50155: 2021, EN45545-2
CE/FCC class-A
MPT-8000RH MPT-8000R with MBT-8001R, 10th Gen Intel® Core Xeon W-1250TE with W480E PCH, w/ 2x 8GB DDR4-3200, 2x SSD bay, No PSU, No storage (RoHS2) 72/110V DC-input
DATASHEETS MPT-8000RH
CATALOGS Intelligent Transportation Solutions (Vol.23.05)
