Intelligent Transportation

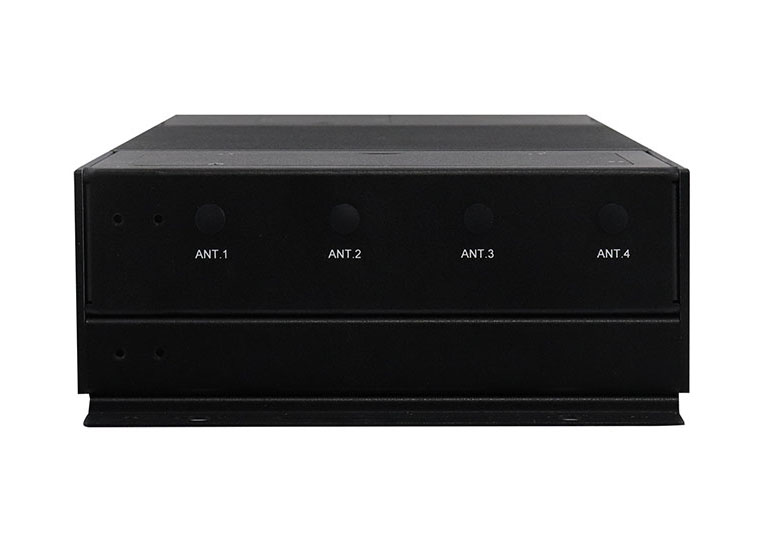

MPT-1000R

EN50155/EN45545 Certified Railway Computer System with Intel® Atom® x7-E3950 Processor, M12 Connection and Dual WWAN

  • EN50155 certification
  • Fanless and ruggedized design
  • Robust M12 connection for dual GbE, USB
  • Onboard isolated CANbus
  • SIM socket supports Dual WWAN
  • Add on card slots reset function
  • Quick accessible RTC battery
  • Fanless
  • Wide Temperature
  • Wide-range power input
  • IP40
  • EN50155
  • EN45545
  • 2021 Taiwan Excellence

The EN50155-certified MPT-1000R intelligent railway computer was developed for rolling stock applications, with features that meet harsh outdoor environment requirements. The shock-resistant system is powered by an Intel® Atom® x7 processor, operating in extended temperatures between -40°C and 70°C and with 9V-36VDC power input. It features a unique one-click recovery of peripheral expansion card and automatic voltage protection functions and supports robust M12 waterproof connectors that ensures fault-free data transmission in rail vehicle monitoring and railway trackside control applications.

System Mainboard MBT-1001R
CPU Type Intel® Atom® x7-E3950 Processor
Processor Speed 1.6GHz , up to 2.0GHz
Memory 1x DDR3L SO-DIMM socket (horizontal type) with ECC support, default 4GB ECC
Construction Matel
Chassis Color Black

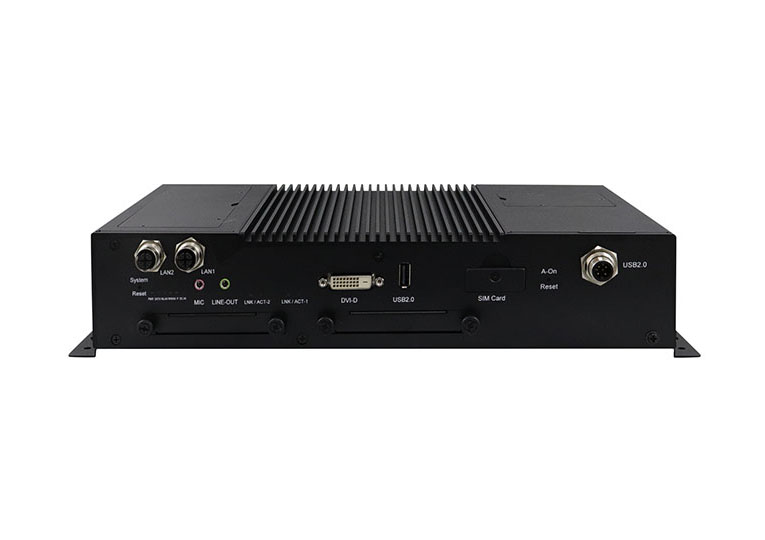

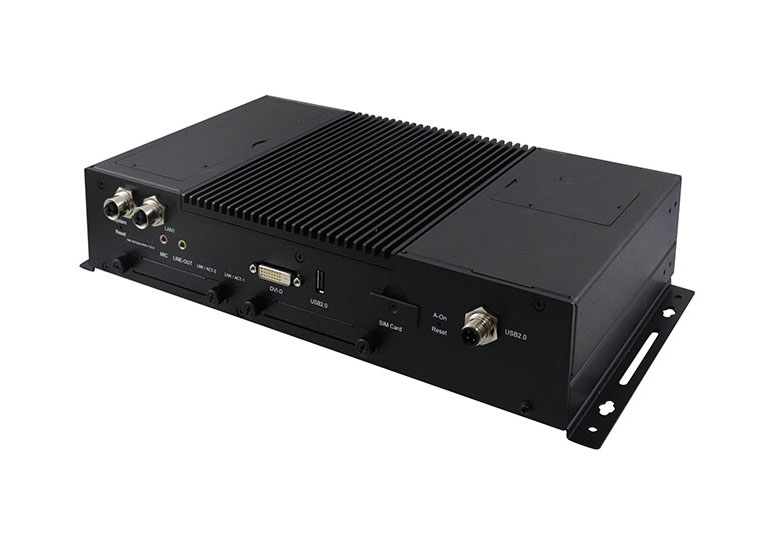

Front panel I/O 1x power reset button
1x DVI-I
2x M12 X-code GbE LAN, isolated
1x USB 2.0 type-A, isolated
1x M12 A-code USB 2.0 isolated
2x audio jack for Line-in/out
5x LED indications, one is programmable
1x SIM card slot for dual micro SIM card
1x expansion slots reset button

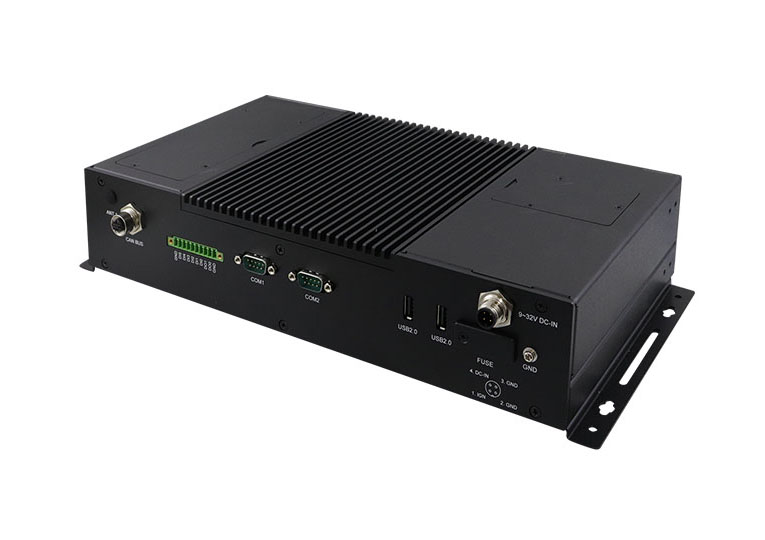

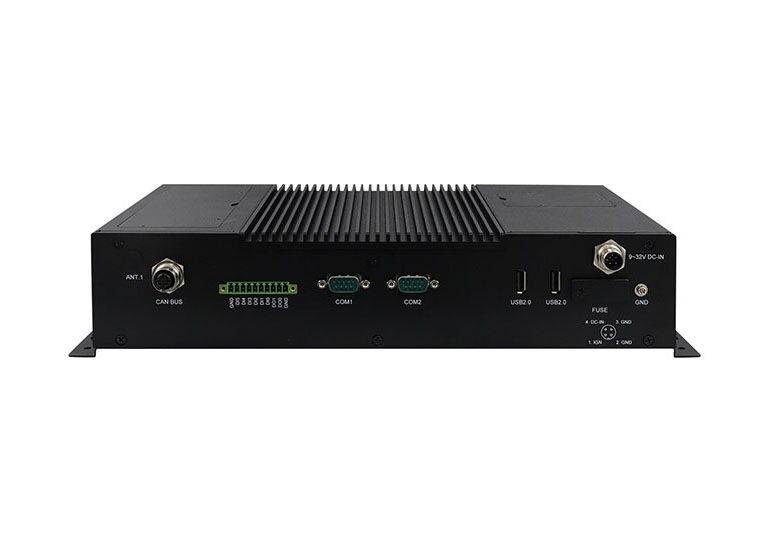

Rear Panel External I/O 1x 10-pin terminal block connector for
 - 2x insulated DO
  • Output type: Darlington transistor
  • Sink current: 500 mA for one channel @100% duty
  - Source current: 500 mA for one channel @100% duty cycle
  - Supply voltage: 5V~35V DC
  - Isolation voltage: 2500 VRMS
 - 6x insulated DI
  • Maximum input range: 24V, non-polarity
  • Digital logic levels: 0V~24V, non-polarity
  • Input high voltage: 5V~24V
  • Input low voltage: 0V~1.5V
  • Input resistance: 1.2k @ 0.5W Isolation voltage: 2500 VRMS
- 1x DSUB9 for RS232/485, isolated
- 1x DSUB9 for RS485, isolated
1x M12 4-pin D-code for 2 master CANbus, isolated
2x USB 2.0 type-A, isolated
1x M12 3-pin A-code for power input
1x blade fuse
Storage 2x 2.5” device bay for SSD/HDD
1x mSATA via miniPCI-E slot (shared with one 2.5” device)
Expansion slots 1x miniPCI-E full/Half-size, supports mSATA
1x miniPCI-E full/Half-size, supports second SIM card shared with M.2 slot
1x M.2 B-key 30x42 with USB 2.0 and USB 3.0 signal only, supports 2x SIM cards
Power Supply 9V~32VDC, 1.5KV galvanic isolation protection
Mounting Side mounting, rack mounting with optional bracket
Dimensions 340 (W) x 183.4 (D) x 67.6 (H) mm
13.3” (W) x 7.22” (D) x 2.66” (H)
Operating Temperature -40°C ~70°C, with SSD, not including add-on cards
Storage Temperature -40°C ~ 85°C (-40°F~185°F)
Relative Humidity 10 ~ 95% @ 45°C, (non-condensing)
Vibration Function: 1m/S2, 5Hz~150Hz (EN 61373)
Lifetime: 7.9m/S2, 5Hz~150Hz (EN 61373)
Shock 50 m/S2, 30 msec (EN61373)
Certified EN50155: 2017 CE (EN62368/ EN55032/ EN55025)/ FCC Class-A
EN45545-2
MPT-1000RM Intel® E3950 processor, 4G DDR3L ECC RAM, 2x M12 GbE LAN, 24VDC(-25%~+30%), No OS, adaptor and storage
