ASB210-953

Slim System with IBASE IB953 3.5-inch Single Board Computer

  • Slim System with IBASE IB953 3.5’’ Single Board Computer (TDP-up to 28W)
  • Onboard 11th Gen Intel® Core™ U-Series Processor
  • Supports 3x M.2 sockets (B-Key/E-Key and M-Key)
  • 12V (-10%) ~ 24V (+10%) DC-in power input
  • 2x DDR4-3200 SO-DIMM, Max. 64GB
  • 3x USB 3.1, 1x USB 2.0, 2x Intel® GbE, 1x COM
  • External GPIO, 2x DisplayPort, TPM (2.0)
  • Optional VESA mount bracket
  • NEW
  • 5G

The ASB210-953 is a 5G-ready compact box PC housing IBASE's IB953 3.5-inch SBC powered by 11th Gen Intel® Core™ i7-1185G7E, i5-1145G7E and i3-1115G4E processors (formerly Tiger Lake) with fan support and up to 28W TDP.


ASB210-953  5G-ready compact box PC

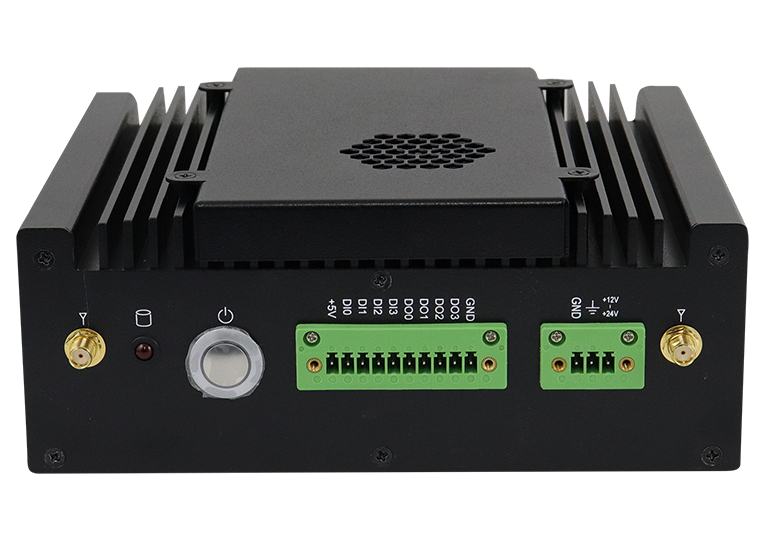

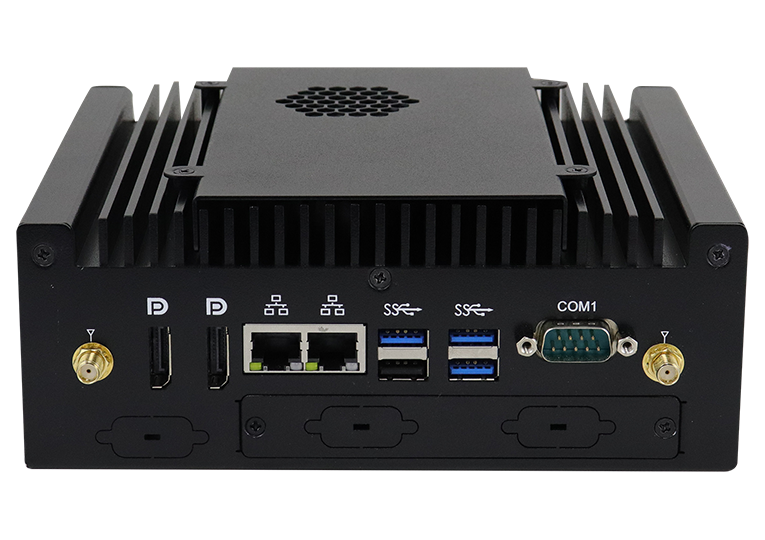

Aimed at smart applications in warehouse logistics management, factory automation and the automotive industry, the ASB210-953 supports up to 64GB in two SO-DIMM slots and 12V~24V wide-range DC power input. Useful I/O ports on the front side include 3x USB 3.1, 1x USB 2.0, 2x DisplayPort, 1x COM, and 2x GbE ports. The rear panel is equipped with digital I/O, power button, HDD LED, DC-in terminal block and two antenna holes that can be used with the optional WiFi accessory kit.

Measuring 180x150x72mm (WxDxH), the ASB210-953 comes with flexible expansion support with high-speed 5G connectivity and other M.2 modules as well as dual storage for a 2280 NVMe SSD and a 2.5-inch HDD. It supports Trusted Platform Module (TPM 2.0) security and are compatible with Windows 10 and Linux Ubuntu operating systems.

System Mainboard IB953AF-i7/ IB953AF-i5/ IB953EF-i3
CPU Type Intel® Core™ i7-1185G7E Processor
Intel® Core™ i5-1145G7E Processor
Intel® Core™ i3-1115G4E Processor
System Speed up to 4.4GHz
Memory 2x DDR4-3200 SO-DIMM, Max.64GB
Front Panel External I/O 3x USB 3.1
1x USB 2.0
2x DisplayPort
1x DB9 for COM#1 (RS232/422/485)
2x Gigabit LAN
Rear Panel External I/O 1x Power button
1x Digital I/O (4-in/4-out)
2x Antenna holes
1x HDD LED
1x 3-pin DC-in terminal block for 12V (-10%) ~ 24V (+10%)
Expansion Slots 2x M.2 sockets (B-Key/ E-Key)
Storage 1x M.2 M-key 2280, 1x 2.5’’ HDD or SSD
Construction Aluminum & steel
1x Systemfan
Chassis Color Black
Mounting Desktop or wall mount (wall mount kit included)
Optional VESA mount kit
Dimensions 180mm (W) x 150mm (D) x 72mm (H)
7.08" (W) x 5.9" (D) x 2.83" (H)
Weight 1.5kg
Operating Temperature 0°C~45°C (32°F~113°F) *with airflow 0.9m/s
Storage Temperature -20°C ~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 3Grms / 5~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE/LVD/FCC Class-B
ASB210-953-i7M Chassis with IB953AF-i7, Intel® i7-1185G7E CPU (TDP-up to 28W), w/ system fan, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB210-953-i5M Chassis with IB953AF-i5, Intel® i5-1145G7E CPU (TDP-up to 28W), w/ system fan, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB210-953-i3M Chassis with IB953EF-i3, Intel® i3-1115G4E CPU (TDP-up to 28W), w/ system fan, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
90W power adaptor (optional) 90W (24V@3.75A) power adaptor, bare wire type compatible with IEC62368-1/EN62368-1 [PN: A005PS090W0100700P]
Optional Accessories VESA mount kit [PN: SC2ASB2----0A1200R] WiFi antenna kit [PN: A024MDWiFi0042400P (Intel® 9260) + SC2WiFi----A10M00R (WiFi Kit)]
DATASHEETS ASB210-953
MANUALS ASB200-953 / ASB210-953
