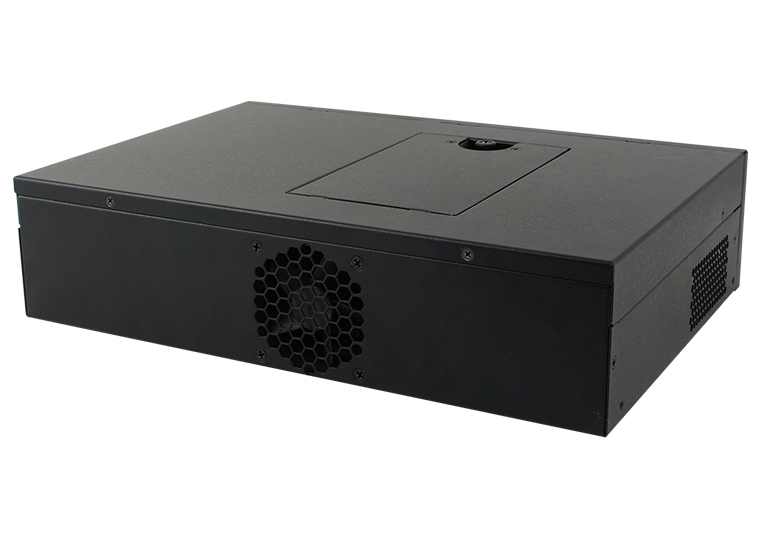

CMI211 System Family

Expandable Type System for IBASE Mini-ITX Motherboard (MI999/MI989/MI992/MI991/MI990)

  • 10th/7th/6th Gen Intel® Core™i7/i5/i3/ Pentium®/Celeron® processors (MI999/992/991/990)
  • AMD Ryzen™ Embedded V2000 Series (MI989)
  • 1x DVI, 1x HDMI, 1x DisplayPort (MI999/992/991/990)
  • 4x DisplayPort 1.4 (MI989)
  • 2x 10/100/1000Base-T LAN
  • Expansion PCI-E(x16) slot
  • Supports 1x 2.5" SATA HDD drive bay and mSATA drive
  • NEW
  • IEC 62368-1 EN 62368-1
System Mainboard CMI211-999: MI999AF/ MI999EF

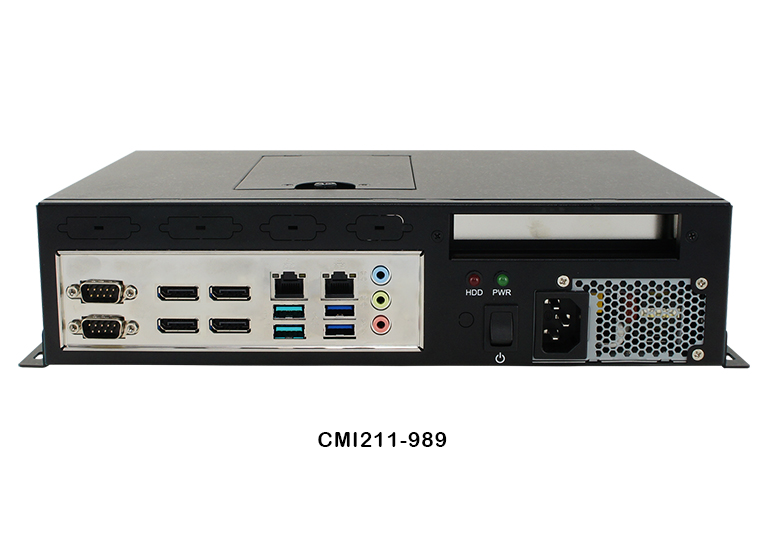

CMI211-989: MI989F
CMI211-992VF-7820: MI992VF
CMI211-991: MI991AF/MI991VF
CMI211-990: MI990VF/MI990EF
CPU Type CMI211-999: 10th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® desktop processors
CMI211-989: AMD Ryzen™ Embedded V2000 series
CMI211-992VF-7820: 7th Gen Intel® Core™ i7-7820EQ Processors
CMI211-991: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® desktop processors
CMI211-990: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® mobile processors
PCH CMI211-999:
MI999AF: Intel® W480E
MI999EF: Intel® H420E
CMI211-989: AMD integrated SoC
CMI211-992VF-7820: Intel® CM238
CMI211-991:
MI991AF: Intel® Q170
MI991EF: Intel® H110
CMI211-990:
MI990VF: Intel® CM236
MI990EF: Intel® HM170
System Speed CMI211-999: Up to 4.7 GHz
CMI211-989: Up to 4.15 GHz
CMI211-992VF-7820: Up to 3.7 GHz
CMI211-991: Up to 4.0 GHz
CMI211-990:Up to 3.7 GHz
Memory CMI211-999: 2x DDR4-3200 SO-DIMM
CMI211-989: 2x DDR4-3200 SO-DIMM
CMI211-992VF-7820: 2x DDR4 -2400 SO-DIMM
CMI211-991: 2x DDR4-2133 SO-DIMM
CMI211-990: 2x DDR4-2133 SO-DIMM
Front-side Panel I/O CMI211-999/CMI211-989: 2x USB 2.0 ports and 2x Antenna hole
CMI211-992VF-7820/CMI211-991/CMI211-990: 2x USB 2.0 ports

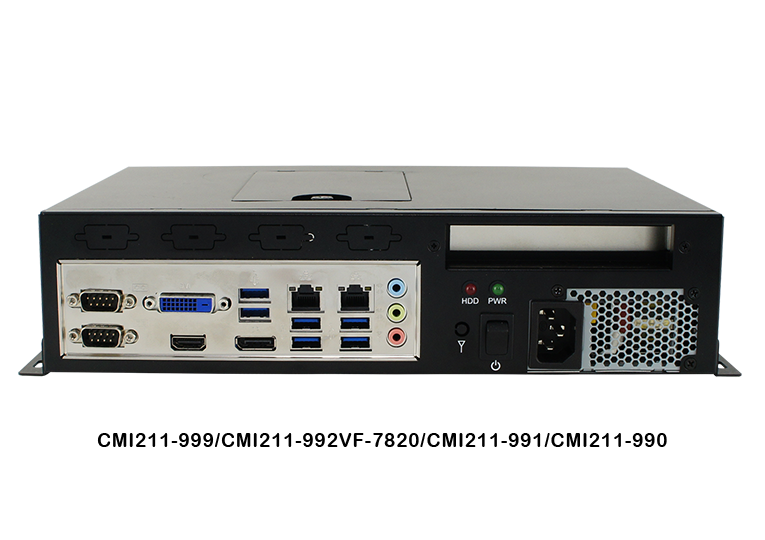

Rear-side Panel I/O CMI211-999/CMI211-989: 1x AC-inlet, 1x Power button/1x Power LED, 1x HDD LED
CMI211-992VF-7820/CMI211-991/CMI211-990: 1x AC-inlet, 1x Power button/1x Power LED, 1x HDD LED/1x Antenna hole/Based on different motherboard I/O ports
Storage Interface CMI211-999: 1x M.2 (MI999AF only)
CMI211-989: 1x M.2
CMI211-992VF-7820: 1x mSATA
CMI211-991: 1x mSATA
CMI211-990: 1x mSATA
Expansion Slots PCI-E Expansion: 1x PCI-E (x16) expansion slot
Add-on card Max. Size: 111mm(W) x 168mm(D) x 18mm(H)
Power Supply Industrial 250W ATX power supply
Input voltage: 100V ~ 240V
Input frequency: 47Hz ~ 63Hz
Compatible with IEC62368-1/EN62368-1
Construction SECC
Chassis Color Black
Mounting Type Wall mount & Desktop
Dimensions 300m (W) x 205mm (D) x 72mm (H)
11.81" (W) x 8.07" (D) x 2.83" (H)
Weight CMI211-999: TBD
CMI211-989: TBD
CMI211-992VF-7820: 2.91kg
CMI211-991: 3.1kg
CMI211-990: 2.8kg
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5% ~ 90% @45C (Non-condensing)
Vibration Non-Operating: 1.0 grms / 5~500Hz / random
Operating: 0.25 grms / 5~500Hz / random
Certification CMI211-999: CE / LVD / FCC Class-B (Pre-scan only)
CMI211-989: CE / LVD / FCC Class-B
CMI211-992VF-7820: CE / LVD / FCC Class-B
CMI211-991: CE / LVD / FCC Class-B
CMI211-990: CE / LVD / FCC Class-B
CMI211-999AFM Chassis with MI999AFE-W (W480E) + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-999EFM Chassis with MI999EFE-H (H420E) + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-989-2748 Chassis with MI989F-2748 (AMD V2748) + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-989-2718 Chassis with MI989F-2718 (AMD V2718) + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-992VF-7820M Chassis with MI992VF-7820 + IP119 riser card, w/o CPU, HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-991AFM Chassis with MI991AF + IP119 riser card, w/o CPU, HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-991EFM Chassis with MI991EF + IP119 riser card, w/o CPU, HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-990-6820M Chassis with MI990VF-6820E + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-990-6440M Chassis with MI990VF-6440E + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)
CMI211-990-6100M Chassis with MI990EF-6100E + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2)

Drivers

Model Chipset Video Audio Network Others
CMI211-989

AMD V2000 series APU on board Chipset Driver

Windows10

AMD Graphics

Windows10

Realtek High Definition Audio

Windows10

Intel I211-AT LAN Driver

Windows10
CMI212-991/ CMI203-991/ CMI211-991

Intel Skylake Chipset Driver

Windows 7 & 8 & 10

Intel kabylake Chipset Driver

Windows 10

Intel HD Graphics Skylake Driver

Windows 7 & 8 (32bit)

Intel HD Graphics kabylake Driver

Windows 10

Realtek High Definition Audio Driver

Windows 7 & 10

Intel LAN Driver

Windows 7 (32bit)

Intel iAMT

Windows 7 & 8 & 10

Intel USB 3.0 Driver

Windows 7
CMI211-985

Intel Chipset Driver

Windows 7 & 8

Intel Core i3/i5/i7 Graphics Driver

Windows 7 & 8 (32-bit)

Realtek High Definition Audio Driver

Windows 7 & 8

Intel LAN Driver

Windows 7 & 8 (32-bit)

Intel AMT

Windows 7 & 8

Intel USB 3.0 Driver

Windows 7
CMI203-981/CMI211-981

Intel Chipset Driver

Windows 7 & 8

Intel Core i3/i5/i7 Graphics Driver

Windows 7 & 8

Realtek High Definition Audio Driver

Windows 7 & 8

Intel LAN Driver

Windows 7 & 8

Intel iAMT Driver

Windows 7 & 8

Intel USB 3.0 Driver

Windows 7
CMI211-980

Intel 4th Generation Chipset Driver

Windows 7 & 8

Intel Core i3/i5/i7 Graphics Driver

Windows 7 & 8

Realtek High Definition Audio Driver

Windows 7 & 8

Intel LAN Driver

Windows 7 & 8

Intel iAMT 9.0

Windows 7 & 8

Intel USB 3.0

Windows 7
