Intelligent System


9th/8th Gen Intel® Core™ i7/i5/i3 High Performance Industrial AI Computer with NVIDIA PCI-E Graphics GPU Card Support

  • 9th/8th Gen Intel® Core™ processors TDP 65W
  • 2x DDR4 SO-DIMM, dual channel, Max. 32GB
  • 3x GigE ports, 6x USB 3.0
  • 1x M.2 2280 M Key
  • Modular design: Main system or Main system + SUMIT module (4-ports PoE+ SUMIT module) or Main system + SUMIT module + Expansion slots support PCI-E high performance graphics card
  • Operating temperature range: -10°C to 50°C
  • NEW
  • AI Solution
  • PoE

The MAF800 industrial-grade embedded system series is suitable for use in machine vision and factory automation facilities to automate shop floor processes and defect inspection based on deep learning with automated optical inspection (AOI) or vision-guided robotics (VGR).

The MAF800 base model has a compact and fanless design with a high performance 8th Gen. Intel® Core™ i7-8700 processor and extensive connectivity with three GigE LAN ports and six USB 3.0 ports for easy integration in multi-camera machine vision applications including locating and aligning parts for assembly with greater speed and accuracy than manual positioning.

Three other configurations of the modular MAF800 series include MAF800-E, MAF800-2E and MAF800-L2E, which are built with a SUMIT module that comprises four PoE ports and a serial port module. The MAF800-2E and MAF800-L2E, however, offer an additional I/O expansion compartment with a PCIe slot for I/O control cards, a PCIe(x16) slot to fit a graphics card for extra computing power needed to perform AI tasks in real time, and an M.2 / mPCIe slot for M.2 AI / WiFi / Profibus cards. The MAF800 features a 9V~36V wide-range DC input, and a second power input connector for the optional adaptor supporting a graphics card or a PoE card.

The MAF800 series has an operating temperature range from -10°C up to 50°C, two SATA 3.0, a DVI-D and a VGA display interface, and 16GB DDR4 system memory. It runs on both Windows 10 and Linux Ubuntu operating systems.

System Mainboard MBA800
CPU Type 9th/8th Gen Intel® Core™ processors TDP<=65W
System Speed Up to 4.6 GHz
Memory 2x DDR4-2133/2400 SO-DIMM 4GB, Max. 32GB
AI Accelerator NVIDIA GeForce GTX 1080 8GD5X / GeForce GTX 1060 6GD5 / GeForce GTX 1050-LN 4GD5
LAN 1x Intel® I219LM
2x Intel® I211AT
Optional 4-port PoE + Module: 4x Intel® I210IT

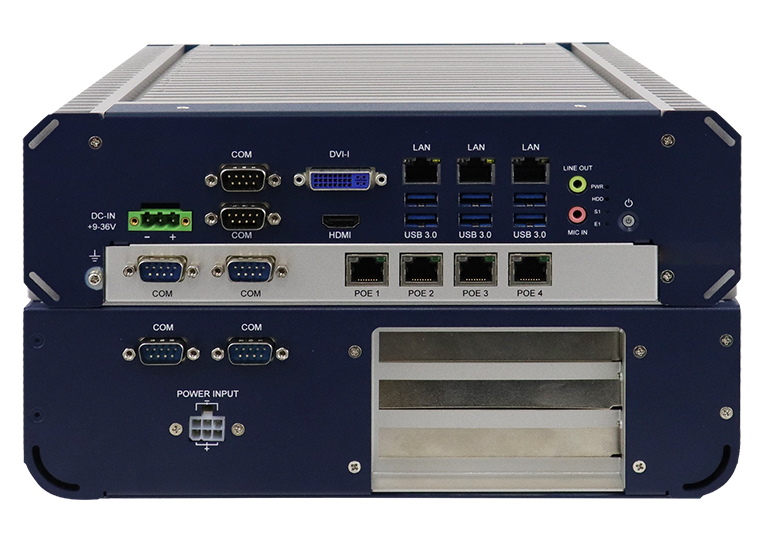

Front Panel External I/O 1x HDMI, 1x 1x DVI-I
6x USB 3.0, 3x RJ45 for Gigabit LAN
2x RS-232/422/485COM Ports, 2x RS-232 COM Ports
1x Audio connectors for Line out
Power / HDD LED, 1x power button, 1x DC-In Power Connector for system power
Rear Panel External I/O N/A
Expansion Slot 1x miniPCI-E socket (full-size)
1x M.2 2280 M key, supports NVMe
1x SUMIT port (optional 4-port PoE + Module)
MAF800-2E / MAF800-L2E: 1x PCI-E x16 ,1x PCI-E x4 or 2x PCI-E x16 + 1x PCI-E x4 (Supports 1x PCI-Ex16 + 1x PCI-E x4 signal or 2x PCI-E x8 + 1x PCI-E x4)
Storage 2x 2.5" SSD + 1x mSATA socket
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement 1x 9V~36V DC input (for system power input)
1x 12V DC input (for additional Power)
Power Supply 240W power adaptor (optional)
Construction Aluminum & steel
Chassis Color Sliver + navy blue
Mounting N/A
Weight MAF800-E: 5.4 kg
MAF800-2E: 9 kg
MAF800-L2E: 10 kg
Dimensions MAF800-E : 262mm(W) x 80mm(D) x 284 mm(H)
10.3" (W) x 3.15" (D) x 11.1" (H)
MAF800-2E : 262mm(W) x 160mm(D) x 284 mm(H)
10.3" (W) x 6.3" (D) x 11.1" (H)
MAF800-L2E : 363mm(W) x 160mm(D) x 284 mm(H)
14.3" (W) x 6.33" (D) x 11.1" (H)
Operating Temperature -10 ~ 50 °C (14 ~ 140 °F) with airflow
-10 ~ 45 °C (14 ~ 122 °F) without airflow
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 0.25 Grms / 5 ~ 500 Hz
Non-operating: 1 Grms / 5 ~ 500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE, FCC class B, UL & CCC
Operating System Windows10 / Linux
MAF800-E Box PC Controller, Fanless Design, w/ Intel® Core™ I5-8500, 2x 4GB DDR4 SO-DIMM, 1x 2.5" 128GB MLC industrial-grade SSD, 4-ports PoE+module, w/o Power adaptor
MAF800-2E Box PC Controller, w/ Intel® Core™ I5-8500, 4GB x 2 DDR4 SO-DIMM, 1x 2.5” 128GB MLC industrial-grade SSD, 4-ports PoE module, 1x PCI-E x16 slot, 1x PCI-E x4 slot (Supports211mm x 129mm x 41mm GUP card), w/o Power adaptor
MAF800-L2E Box PC Controller (Long chest), w/ Intel® Core™ I7-8700,4GB x 2 DDR4 SO-DIMM, 1x2.5” 128GB MLC industrial-grade SSD, 4-ports PoE module, 1x PCI-E x16 slot, 1x PCI-E x4 slot (Support 265mm x 114mm x 40mm GPU card), w/o Power adaptor


Model Chipset Video Audio Network Others

Intel(R) Chipset Software Installation Utility

Windows 10

Intel(R) HD Graphics

Windows 10

Realtek High Definition Audio

Windows 10

Intel(R) PRO LAN Network

Windows 10

Intel(R) ME 12.X

Windows 10
