Intelligent System

CMI203-992-AI

Intel® Xeon® E3 Processor Industrial AI Computer with 1x PCI-E (x16) slot

  • Onboard Intel® Xeon® Processor E3-1505M v6
  • 2x DDR4 SO-DIMM, Max 32GB, ECC
  • Intel® processor integrated graphics, supports DVI-D, HDMI 1.4, DisplayPort and 24-bit Dual channel LVDS
  • 2x Intel® Gigabit LAN
  • 2 x PCI-E (x8) based on PCI-E (x16) connectors for Nvidia GPU card options
  • 1x Mini PCI-E, 1x mSATA, 1x M.2
  • Watchdog timer, Digital I/O, iAMT 11.6, TPM 2.0, vPro, iSMART
  • AI Solution
  • iSMART

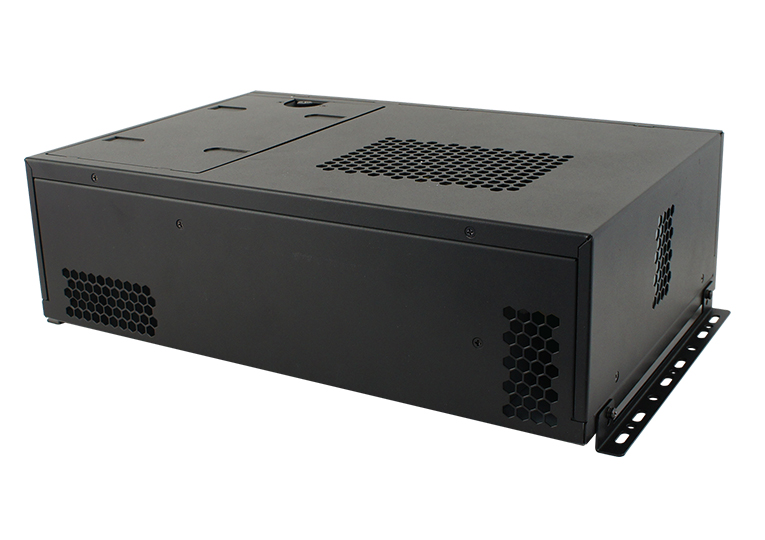

CMI203-992-AI Embedded System

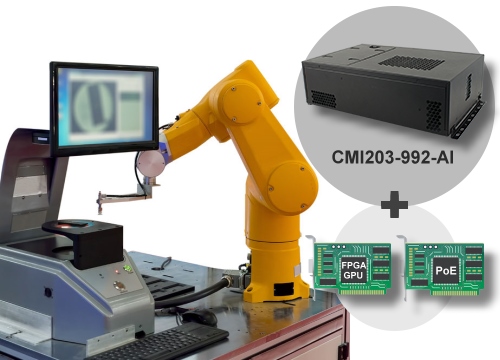

Designed for automation control applications, the Intel® Xeon® Processor E3-1505M v6-based CMI203-992-AI(CMI203-MI992VF-X3G) embedded system offers powerful computing and supports 2x PCI-E (x16) slots with (x8) signal, which can be combined with PoE card as a machine vision solution. It can train machines to classify items based on quality and can be expanded with a GPU or FPGA card to enhance AI calculation in deep learning to discover different quality levels and reduce the possibility of misjudgment. Applications would include those in smart factory, smart city or other fields that require real-time analysis and judgment.

System Mainboard MI992VF-X3G
CPU Type Intel® Xeon® Processor E3-1505M v6
System Speed N/A
Memory 2x DDR4 SO-DIMM, Max 32GB (support ECC by CPU SKUs)
AI Accelerator Intel® Xeon® Processor integrated
LAN 1x Intel® I219LM Gigabit LAN PHY
1x Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
Front Panel External I/O N/A

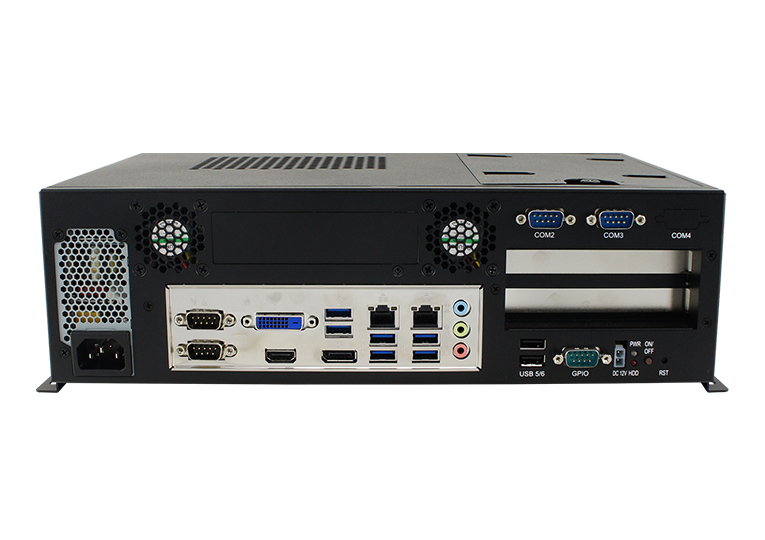

Rear Panel External I/O 1x HDMI, 1x DVI-D and 1x DP
6x USB 3.0, 2x USB 2.0
1x GPIO port(4-in / 4-out)
2x RJ45 for Gigabit LAN
2x COM port for RS232/422/485(COM#1 & COM#2)
4x COM port for RS232 only (COM#3~COM#6)
3x Microjack audio connectors for Mic in, Line-in and Line-out
1x Power LED, 1x HDD LED, 1x power button,
1x reset button
1x DC-jack for power output
Expansion Slot 1x PCI-E (x16) slot with (x8) signal
Add-on card Max. Size:111mm(W) x 170mm(D) x 100mm(H)
Storage 1x 2.5" HDD holder
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement Input Voltage: 100V~240V
Input Frequency: 47Hz~63Hz
Power Supply FSP 250W power adaptor
Construction SGCC
Chassis Color Black
Mounting Wall mount & Dekstop
Weight 8kgs (5.95 Ibs)
Dimensions 345mm (W) x 225mm (D) x 100mm (H)
13.58" (W) x 8.86" (D) x 3.94" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90% @45C (Non-condensing)
Vibration Non-Operating : 1.0 grms / 5~500Hz / random
Operating : 0.25 grms / 5~500Hz / random
Shock N/A
Certification CE / LVD / FCC Class B (Pre-scan only)
Operating System Win10 (64-bit)
Linux Fedora (64-bit) & Ubuntu(64-bit)
CMI203-MI992VFX3G Industrial AI Computer with MI992VF-X3G w/ Intel® Xeon® Processor E3-1505M v6 and 32GB DDR4 Memory + IP118 riser card, 250W Power adaptor, 2.5” HDD holder, 1x PCI-E (x16) expansion slots with PCI-E (x8) signal w/o HDD, memory (RoHS)
