Intelligent System
AMI232-AI
9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP) Expandable Industrial AI Computer
- High-performance Intel® 9th/8th Gen Core™ processors
- Intel® OpenVINO validated
- Supports three independent display outputs
- 4x RJ45 Gigabit Ethernet port (2x Supports 802.3at PoE+)
- 2x Flexible PCI-E / PCI expansion slot
- 3x M.2 (B-Key/E-Key/M-Key)
- Over/Under/Reverse voltage protection
The AMI232-AI is an embedded vision system powered by Intel OpenVINO-based iVINO AI recognition software. By integrating artificial intelligence (AI) with automated optical inspection (AOI), AMI232-AI is able to expand its inspection capabilities through machine learning which facilitates increased yield, improves fabrication operations and processes, and reduces manual operations. Compared with traditional AOI inspection, it has higher efficiency and greater accuracy.
The fanless system features real-time vision I/O control, camera communication interfaces and support of Intel® OpenVINO™ toolkit. Other features include:
- High-performance Intel® Core™ i7-8700 processors
- Supports three independent display outputs
- 4x RJ45 Gigabit Ethernet port (2x Supports 802.3at PoE+)
- 2x Flexible PCI-E / PCI expansion slot
- 3x M.2 (B-Key/E-Key/M-Key)
- Over/Under/Reverse voltage protection
System Mainboard | MB230AF with Intel® Q370 PCH |
CPU Type | 9th/8th Gen Intel® Core™ i7/i5/i3 desktop processors |
System Speed | Up to 4.00 GHz |
Memory | 2x DDR4-2666/2400 SO-DIMM, Max. 32GB |
AI Accelerator | N/A |
LAN | N/A |

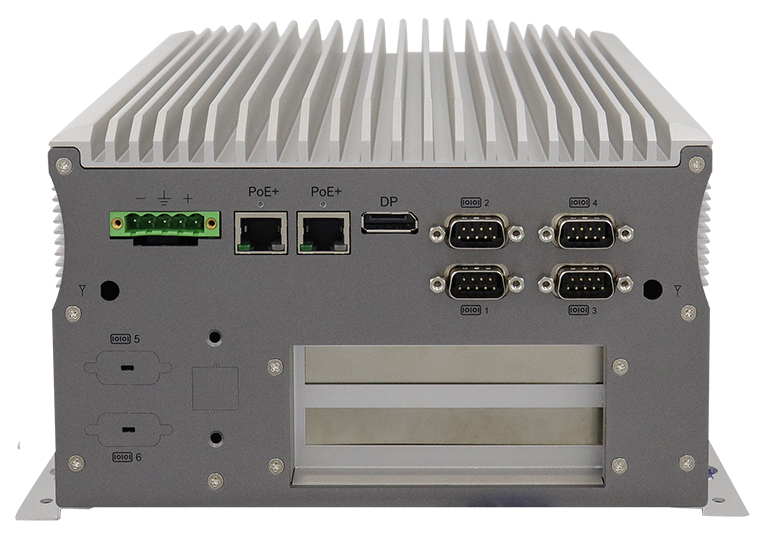

Front Panel External I/O | 1x RS232/422/485 port for COM#1~COM#2 3x RS232 ports for COM#3~COM#4 2x RS232 ports for COM#5~6 from optional IP214/5 1x DisplayPort (1.2) 2x RJ45 Gigabit Ethernet port (Supports 802.3at PoE+) 1x 5-pins DC-in terminal block type for 12V (±10%) or 18V (-10%)~24V (+10%) 2x Antenna holes 1x expansion slot |

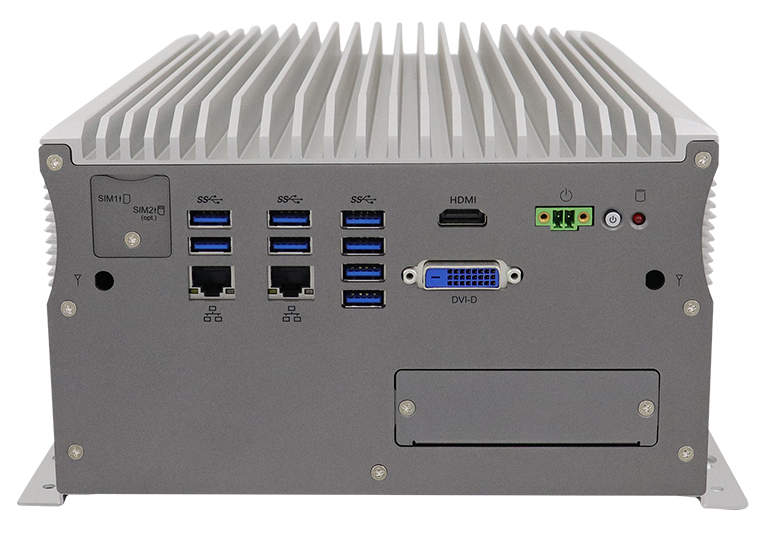

Rear Panel External I/O | 1x DVI-D + HDMI(1.4) 4x USB3.1 ports 2x Antenna holes 2x RJ45 Gigabit Ethernet port + Dual USB3.1 stack ports 1x Red HDD LED 1x power button with Green LED indicator 1x 2-pin terminal block 2x SIM Card |
Expansion Slot | 2x Flexible PCI-E / PCI expansion slot 1x M.2 (B-Key supports USB2.0 for 4G/LTE) 1x M.2 (E-Key supports PCI-E + USB2.0 for CNVi) |
Storage | 2x 2.5'' HDD/SSD 1x M.2 (M-Key supports PCI-E(4x) + SATA for NVMe SSD) |
Auto Control and Monitoring | N/A |
Power Requirement | N/A |
Power Supply | N/A |
Construction | Aluminum & steel |
Chassis Color | Silver & Gray |
Mounting | Desktop & wall mount |
Weight | 4.9 kg |
Dimensions | 210mm(W) x 285mm(D) x 129mm(H) 8.27" (W) x 11.22" (D) x 5.08" (H) |
Operating Temperature | -20°C to 70°C (-4°F~158°F) (for 35W CPU) |
Storage Temperature | -20°C~80°C (-4°F~176°F) |
Relative Humidity | 5~90% @60°C, (non-condensing) |
Vibration | Operating : 3Grms / 5~500Hz |
Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
Certification | CE / FCC Class A/ LVD |
Operating System | N/A |
