Intelligent System


9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP) Expandable Industrial AI Computer

  • High-performance Intel® 9th/8th Gen Core™ processors
  • Intel® OpenVINO validated
  • Supports three independent display outputs
  • 4x RJ45 Gigabit Ethernet port (2x Supports 802.3at PoE+)
  • Flexible PCI-E / PCI expansion slot
  • 3x M.2 (B-Key/E-Key/M-Key)
  • Over/Under/Reverse voltage protection
  • 15 years life time
  • iSMART
  • Fanless
  • IEC 62368-1 EN 62368-1
  • IP40

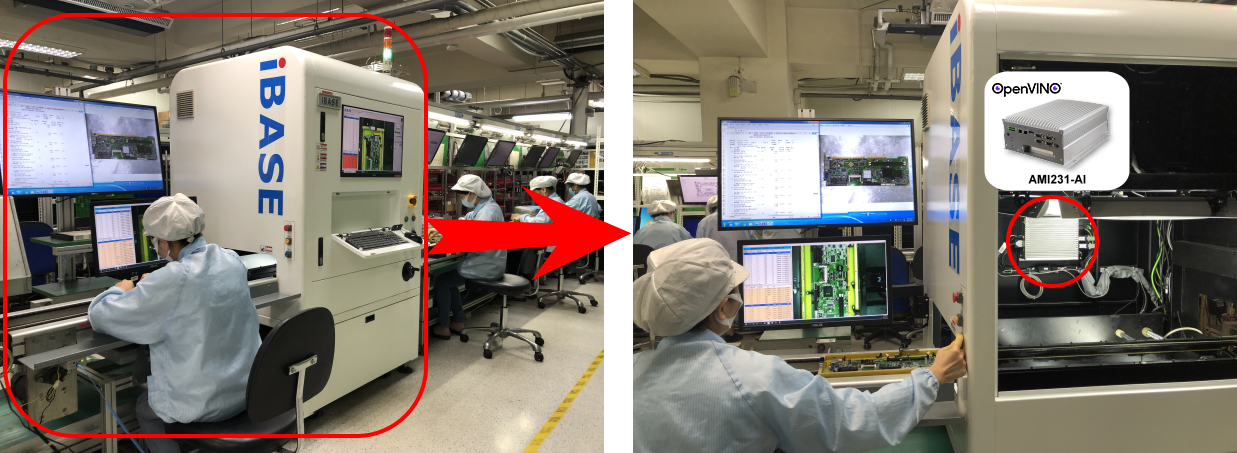

The AMI231-AI is an embedded vision system powered by Intel OpenVINO-based iVINO AI recognition software. By integrating artificial intelligence (AI) with automated optical inspection (AOI), AMI231-AI is able to expand its inspection capabilities through machine learning which facilitates increased yield, improves fabrication operations and processes, and reduces manual operations. Compared with traditional AOI inspection, it has higher efficiency and greater accuracy.

The fanless system features real-time vision I/O control, camera communication interfaces and support of Intel® OpenVINO™ toolkit. Other features include:

  • High-performance Intel® Core™ i7-8700 processors
  • Supports three independent display outputs
  • 4x RJ45 Gigabit Ethernet port (2x Supports 802.3at PoE+)
  • Flexible PCI-E / PCI expansion slot
  • 3x M.2 (B-Key/E-Key/M-Key)
  • Over/Under/Reverse voltage protection

System Mainboard MB230AF with Intel® Q370 PCH
CPU Type 9th/8th Gen Intel® Core™ i7/i5/i3 desktop processors
System Speed Up to 4.00 GHz
Memory 2x DDR4-2666/2400 SO-DIMM, Max. 32GB
AI Accelerator N/A

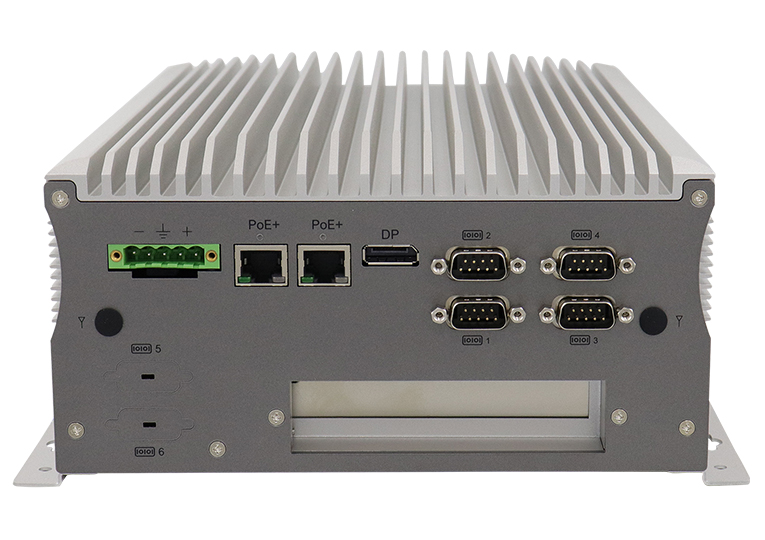

Front Panel External I/O 1x RS232/422/485 port for COM#1~COM#2
3x RS232 ports for COM#3~COM#4
2x RS232 ports for COM#5~6 from optional IP214/5
1x DisplayPort (1.2)
2x RJ45 Gigabit Ethernet port (Supports 802.3at PoE+)
1x 5-pins DC-in terminal block type for 12V (±10%) or 18V (-10%)~24V (+10%)
2x Antenna holes
1x expansion slot

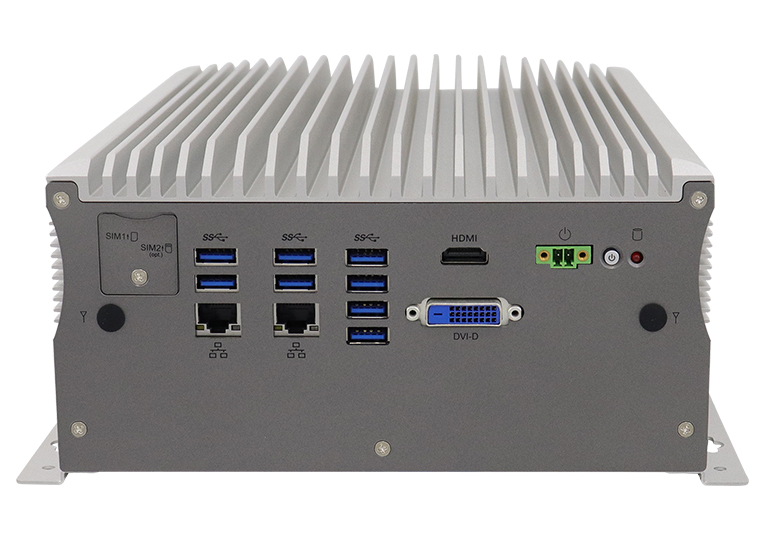

Rear Panel External I/O 1x DVI-D + HDMI(1.4)
4x USB3.1 ports
2x Antenna holes
2x RJ45 Gigabit Ethernet port + Dual USB3.1 stack ports
1x Red HDD LED
1x power button with Green LED indicator
1x 2-pin terminal block
2x SIM Card
Expansion Slot 1x Flexible PCI-E / PCI expansion slot
1x M.2 (B-Key supports USB2.0 for 4G/LTE)
1x M.2 (E-Key supports PCI-E + USB2.0 for CNVi)
Storage 2x 2.5" HDD/SSD
1x M.2 (M-Key supports PCI-E(4x) + SATA for NVMe SSD)
Auto Control and Monitoring N/A
Power Requirement N/A
Power Supply N/A
Construction Aluminum & steel
Chassis Color Silver & Gray
Mounting Desktop & wall mount
Weight 4.5 kg
Dimensions 210mm (W) x 285mm (D) x 109mm (H)
8.27" (W) x 11.22" (D) x 4.29" (H)
Operating Temperature -20°C to 70°C (-4°F~158°F) (for 35W CPU)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5~90% @60°C, (non-condensing)
Vibration Operating : 3Grms / 5~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE / FCC Class A/ LVD
Operating System N/A
