Intelligent System

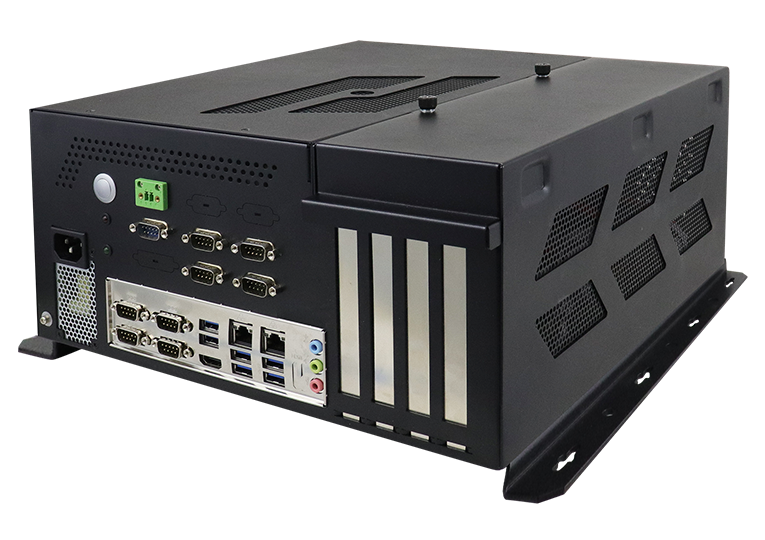

CMB106/CMB107 Series
High Performance Expandable Industrial Computer Based on MicroATX Solutions
- Supports 9th/8th/7th/6th Gen Intel® Core DT processors (TDP 65W) with specified M/B
- Supports discrete GPU cards via reserved expansion slots
- Multiple expansion slots :
- CMB106M (C236 platform): 1x PCI-E(x16), 1x PCI-E(x8), 1x PCI-E(x4)
- CMB107M (H310 platform): 1x PCI-E(x16), 2x PCI-E(x1), 1x PCI
- 500W 1U Flex ATX power supply [Default]
- 2-pin remote boot extension design
- Supports multi-display interfaces [HDMI, DP, CRT] and GbE ports, USB 3.0 ports
- Four 2.5" storage bays (supports RAID 0/1)
- MiniPCI-E and M.2 M-Key (2280)
- TPM, DIO, iAMT, iSMART [Optional]
The CMB100 Series is an industrial-grade AI embedded system designed for today's artificial intelligence and Internet of Things (IoT) applications. Supporting up to Intel® 9th generation Core™ processors and two NVIDIA GeForce RTX 30 series graphics cards, the CMB100 Series delivers the high performance and responsiveness required to process data in real time at massive scale in deep learning operations.
The 2022 Taiwan Excellence awarded CMB100 Series comes in two Intel® chipset variants (C236/H310) for optimized flexibility and different performance requirements. All systems have four high-capacity storage drive-bays and RAID 0/1 support for added total reliability. An extensive set of interfaces provides peripheral connectivity for image capture and data transmission in AI applications. The Intel C236-based CMB106M features six USB 3.0, four USB 2.0, four serial ports, COM, four DDR4 slots, and four expansion slots for graphics cards.
Security and hardware monitoring features come as standard, including TPM 2.0 for data integrity, iAMT 12.0 for remote system management and optional iSMART technology for power on/off scheduling, power resume, lower temperature guardian and intelligent OS recovery. The built-in IEC 62368-1 certified 500W ATX power supply can be upgraded to an 850W PSU. The CMB100 Series supports Windows 10 64-bit, Linux Ubuntu 18.0.4, and Windows 7 64-bit (C236 variant only) operating systems.
| System Mainboard | H310/C236 MicroATX motherboards |
| CPU Type | CMB106M: 7th/6th Gen Intel® Core™ DT processors (TDP 65W) CMB107M: 9th/8th Gen Intel® Core™ DT processors (TDP 65W) |
| System Speed | CMB106M: Up to 4.20 GHz (C236 supports ECC by CPU SKUs) CMB107M: Up to 4.90 GHz |
| Memory | CMB106M: 4x DDR4 UIMM, Max. 64GB CMB107M: 2x DDR4 UIMM, Max. 32GB |

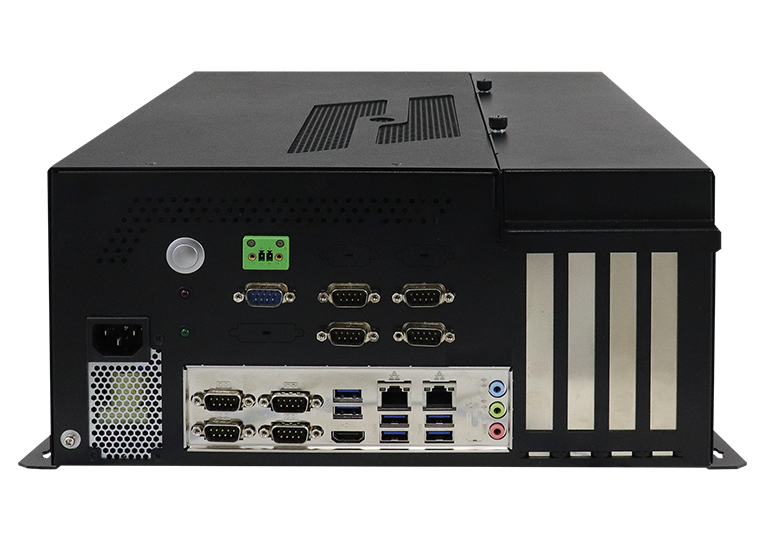

| Front Panel External I/O | 2-pin remote boot extension design Detachable side cover for GFX Card 4x Slots Power button CMB106M: Multi-HDMI 6x USB3.0 ports, 4x USB2.0 (expandable) 2x RJ45 Gigabit Ethernet port 2x RS232/422/485, 2x RS232 CMB107M: DVI-D+D-SUB 2x USB3.2 ports, 4x USB2.0 ports, 2x USB3.2 (expandable) and 2x USB2.0 (expandable) 1x RJ45 Gigabit Ethernet port 1x RS232, 1xRS232 (expandable) |
| Rear Panel External I/O | Pluggable cooling-fan |
| Expansion Slots | CMB106M: 1x PCI-E(x16), 1x PCI-E(x8), 1x PCI-E(x4) CMB107M: 1x PCI-E(x16), 2x PCI-E(x1), 1x PCI |
| Storage | CMB106M: 4x 2.5” SATA (supports RAID 0/1)+Mini PCI-E CMB107M: 4x 2.5” SATA (supports RAID 0/1)+M.2 M-Key (2280) storage |
| Construction | SECC |
| Chassis Color | Black |
| Mounting | Desktop & wall mount |
| Dimensions | 325mm(W) x 350mm(D) x 156mm(H) |
| Weight | Depends on the configuration of power supply and motherboard related components |
| Operating Temperature | 0°C~45°C (32°F~113°F) (for 65W CPU) @60°C, non-condensing |
| Storage Temperature | -20°C~80°C (-4°F~176°F), @60°C, non-condensing |
| Relative Humidity | 10~95%, non-condensing@60 degree-C |
| Vibration | With SSD: 1Grms, IEC 60068-2-64, random, 5Hz~500Hz |
| Shock | With SSD: Operating 20G, IEC 60068-2-27, half-sine, 11 ms duration With SSD Non-Operating 40G, IEC 60068-2-27, half-sine, 11 ms duration With SSD |
| Certification | CE FCC ClassA / LVD |
| CMB106M | (CMB), Chassis with MicroATX 7th/6th motherboard w/o CPU, memory, storage, support Gen Intel® i7/i5/i3 / Pentium® / Celeron® QC/DC processors, up to 4.2GHz |
| CMB107M | (CMB), Chassis with MicroATX 9th/8th motherboard w/o CPU, memory, storage, support Gen Intel® i7/i5/i3 / Pentium® / Celeron® QC/DC processors, up to 4.9GHz |
| DATASHEETS | CMB106/CMB107 Series |
