Intelligent System

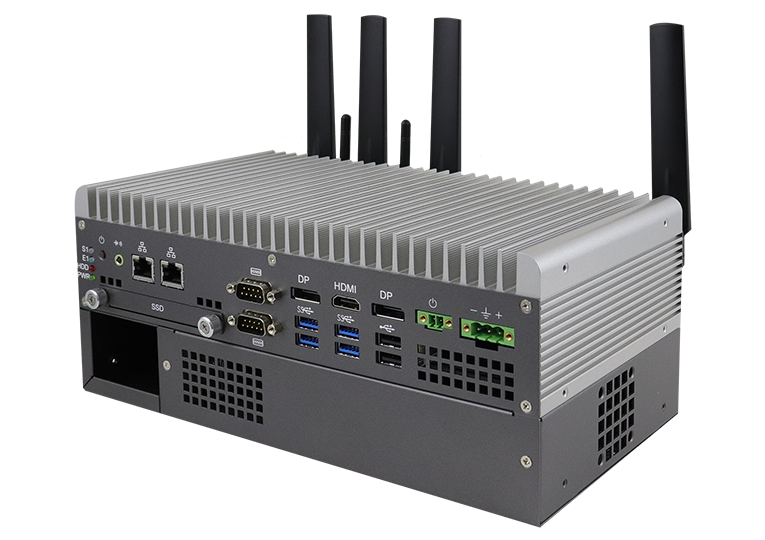

Compact Expandable Fanless System with 10th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

  • Compact fanless system with for IBASE MB310 customized board
  • 10th Gen Intel® Core™ i7/i5/i3 Processors (35W TDP)
  • Front removable drive bay for HDD/SSD
  • 1x PCI-E (x8) + 1x PCI-E (x4) expansion slot
  • Over/Under/Reverse voltage protection
  • Supports DIN-rail mount & wall mount
  • TPM 2.0
  • 15 years life time
  • iSMART
  • Fanless
  • IEC 62368-1 EN 62368-1
System Mainboard MB310 with Intel® Q470E PCH
CPU Type 10th Gen Intel® Core™ i7/i5/i3 desktop Processors (35W TDP)
System Speed Up to 4.5GHz
Memory 2x DDR4-2933/2666 SO-DIMM, Max. 64GB
Front Panel External I/O 6x Antenna hole for WLAN/4G/5G module
Rear Panel External I/O 1x HDMI connector
2x DisplayPort connector
1x Audio jack for Line-out
4x USB 3.0 ports
2x USB 2.0 ports (1x software programmable)
1x Red HDD LED, 1x green power LED,
2x Error LED by programming
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2
2x RJ45 2.5G Ethernet port
1x 3-pin DC-in terminal block for 24V(±10%)
1x 2-pin terminal block connector for remote access
1x Power button
Expansion Slots 1x M.2 2042 E-key (USB2.0 & PCI-E)
1x M.2 3052 B-key (USB2.0 & 3.0)
1x PCI-E (x8) slot
1x PCI-E (x4) slot
Storage 1x 2.5'' HDD/SSD (external-accessible)
1x M.2 2280 M-key (SATA & PCI-E)
Construction Aluminum & steel
Chassis Color Silver & Gray
Mounting Desktop or wall mounting (wall mount kit included)
Side mounting
DIN-rail mounting (optional)
Dimensions 275mm (W) x 150mm (D) x 117mm (H)
10.83” (W) x 5.91” (D) x 4.61” (H)
Weight 3.5kg
Operating Temperature -10°C to 60°C (14°F~140°F) *with air flow
-10°C to 50°C (14°F to 122°F) without air flow
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration Non-Operating: 1.0 grms / 5~500Hz / random operation
Operatiing:0.25 grms / 5~500Hz / random operation
Shock Operating: 20 g / 11 ms
Non-operating: 40 g / 11 ms
Certification CE / LVD / FCC Class B (TBD)
AMS312M Fanless System with MB310, w/o CPU/ memory/ storage/ Power adaptor Supporting vPro & iAMT 11.0, desktop or wall mounting brackets (RoHS2), 1x PCI-E (x8) + 1x PCI-E (x4) expansion slots, w/o power adaptor
180W power adaptor (optional) 180W (24V @7.5A) power adaptor, bare wire type
Compatible with IEC62368-1/EN62368-1
Optional Accessories WiFi/BT antenna kit
LTE/5G antenna kit
GPS antenna kit
