Intelligent System

AMS302

Compact Expandable Fanless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

  • Compact fanless system with for IBASE MB300 customized board
  • 7th/6th Gen Intel® Core™ i7/i5/i3 Processors (35W TDP)
  • 2MB MRAM module (optional)
  • Front removable drive bay for HDD/SSD (supports RAID 0/1)
  • 1x PCI-E (x8) + 1x PCI-E (x4) expansion slot
  • Over/Under/Reverse voltage protection
  • Supports DIN-rail mount & wall mount
  • iSMART, iAMT (11.6)
  • 15 years life time
  • iSMART
  • Fanless
  • IEC 62368-1 EN 62368-1

The AMS300 is a compact, yet expandable fanless system designed for industrial control and measurement processes in smart factory automation applications. It is powered by 7th/6th Gen Intel® Core™ i7/i5/i3 processors and comes integrated with 8GB memory as well as 64GB of industrial-grade SSD storage. An optional 2MB MRAM expansion module is available to store data even without power. The AMS300 is built with two module compartments for PCI-E/PCI cards and Fieldbus modules, giving flexibility to customers to configure the various I/O required. The unit also features high vibration and shock resistance, crucial for deployment in harsh conditions and all interfaces are situated to one side for easy assembly and expansion.


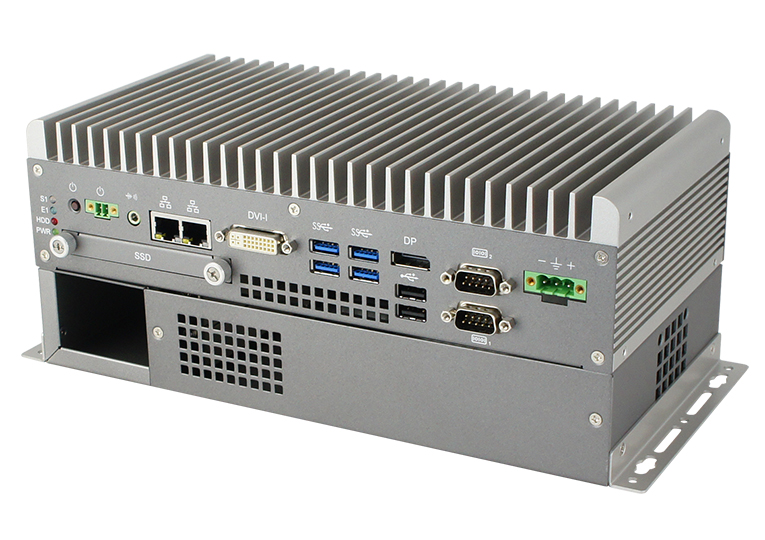

AMS302 Compact Expandable Fanless System

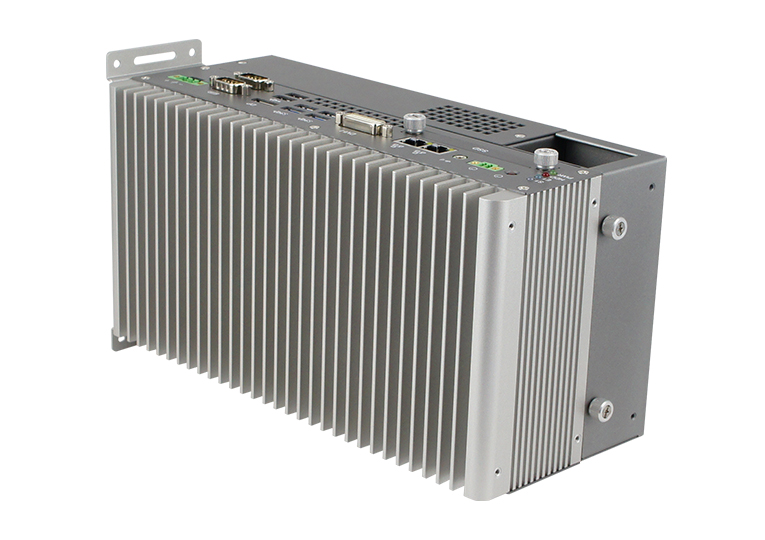

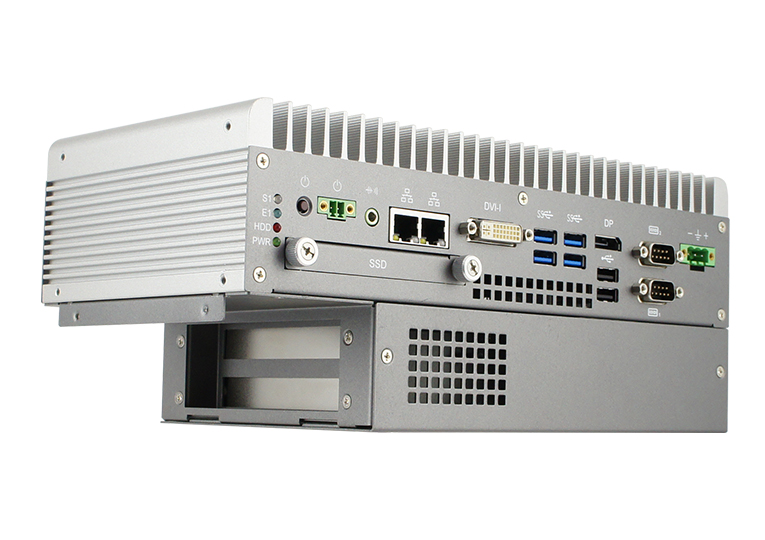

Built with a passive finned heat sink, the rugged AMS300 boasts superb thermal performance while reliably operating at a temperature range of -10°C to 60°C. The system is highly flexible with wall, side and DIN-rail mounting options to securely fit space-constrained and industrial environments. Advanced features include iAMT (11.6) for remote management and repair of systems and IBASE’s owned iSMART technology that enables energy-efficient systems with various power-saving functions. The AMS300 also offers extensive I/O connectivity including a drive bay with RAID 0/1 support, a 24V DC terminal block, 4x USB 3.0 which can be used as machine vision camera interface, 2x USB 2.0, 2x COM, 2x Gigabit Ethernet and video outputs for DVI-I and DisplayPort interface.

To meet customer specific requirements, the AMS301, an AMS300 variant model, houses an extension module with an IP301 card with 3x mPCIe slots that can be installed with optional PROFINET and PROFIBUS Fieldbus modules. The AMS302 has an IP302 expansion card with interface for USB, COM, PCI-E(x8) and PCI-E(x4) devices.

System Mainboard MB300 with Intel® Q170 PCH
CPU Type 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)
System Speed Up to 3.4GHz
Memory 2x DDR4-2133 SO-DIMM, Max. 32GB

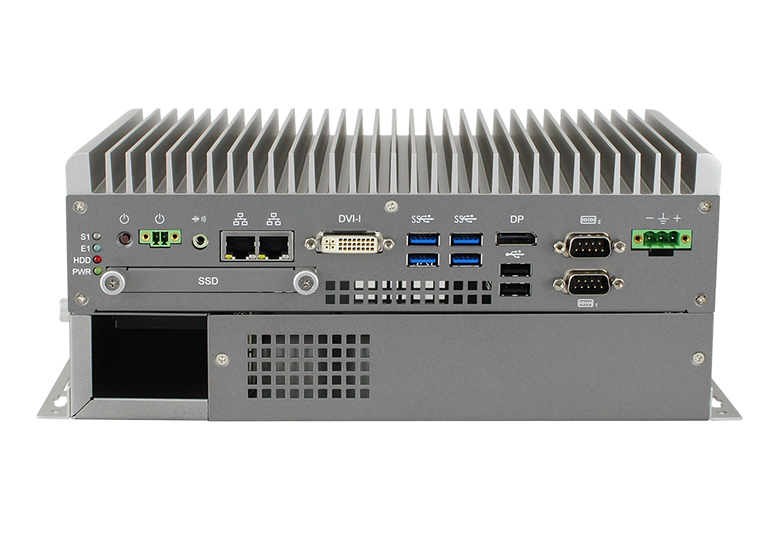

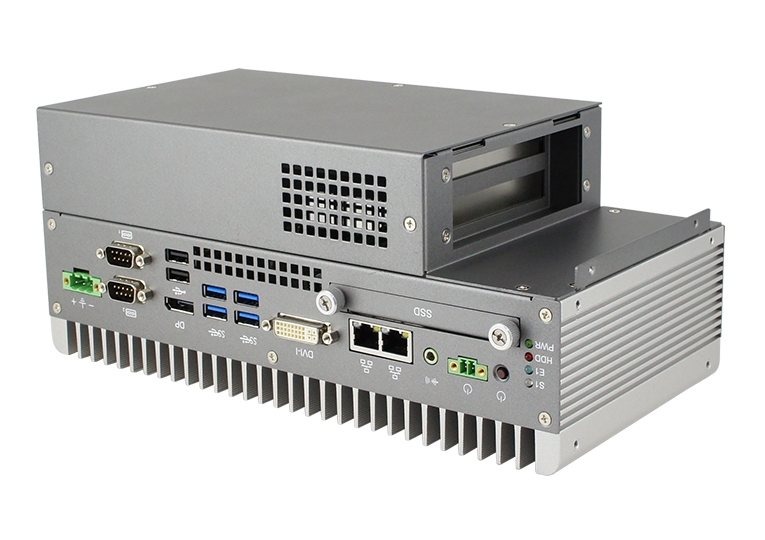

Front Panel External I/O 2x Antenna hole for WLAN module
Rear Panel External I/O 1x DVI-I + 1x DisplayPort connector
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x green power LED
2x Error LED by programming
1x Power button
1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block for 24V (±10%)
Expansion Slots 1x Mini PCI-E sockets (full-size)
1x PCI-E (x8) slot
1x PCI-E (x4) slot
Storage 2x 2.5" HDD/SSD (1x internal & 1x external-accessible) + 1x mSATA socket

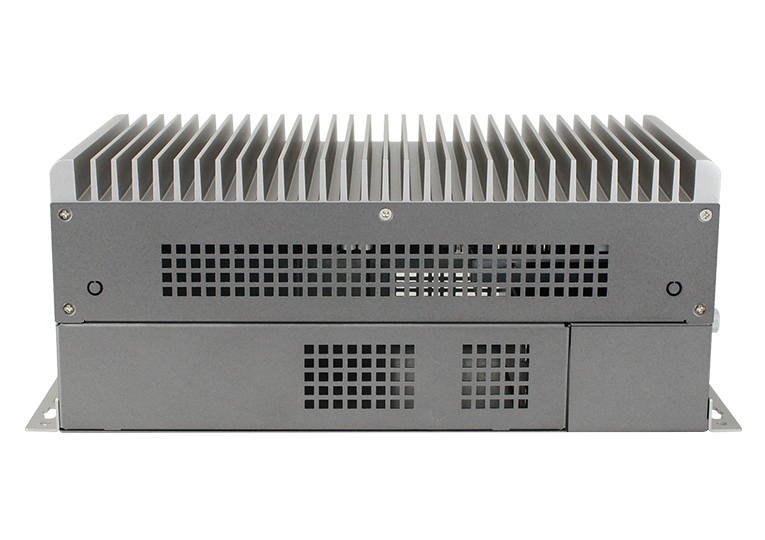

Construction Aluminum & steel
Chassis Color Silver & Gray
Mounting Desktop or wall mounting (wall mount kit included)
Side mounting

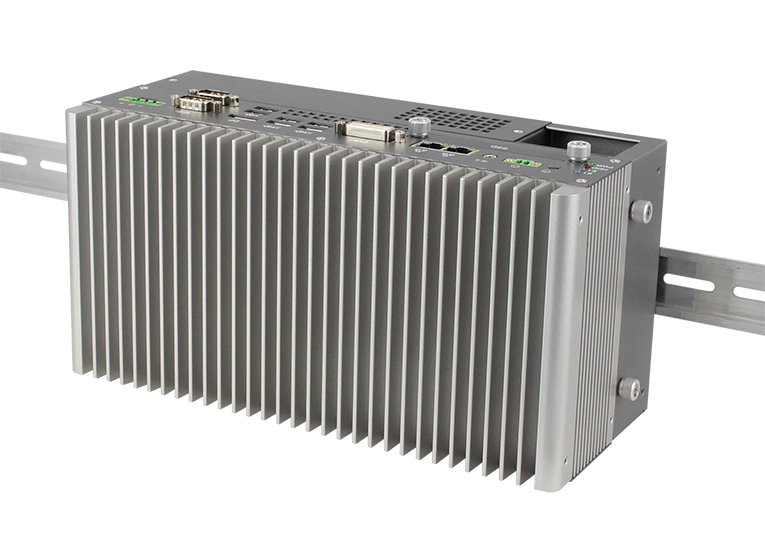

DIN-rail mounting (optional)
Dimensions 275mm (W) x 140mm (D) x 117mm (H)
10.83" (W) x 5.51" (D) x 4.61" (H)
Weight 3.3kg
Operating Temperature -10°C to 60°C (14°F~140°F) *with air flow
-10°C to 50°C (14°F to 122°F) without air flow
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration Non-Operating: 1.0 grms / 5~500Hz / random operation
Operatiing:0.25 grms / 5~500Hz / random operation
Shock Operating: 20 g / 11 ms
Non-operating: 40 g / 11 ms
Certification CE / LVD / FCC Class-B
AMS302 Fanless System with MB300, w/ Intel® Core™ i7/i5/i3 desktop Processor, 2x COM, 2x 4GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, 1x PCI-E (x8) + 1x PCI-E (x4) expansion slots, w/o power adaptor
180W power adaptor (optional) 180W (24V @7.5A) power adaptor, bare wire type
Compatible with IEC62368-1/EN62368-1
2nd storage ACC Kit (optional) Storage ACC Kit including screws and cable (SC2AMS300--A10100R)
Optional Accessories WiFi/BT antenna kit
4G/LTE antenna kit (Must have M2MU2-S)
GPS antenna kit (Must have M2MU2-S)

Drivers

Model Chipset Video Audio Network Others
AMS302

Intel(R) Chipset Software Installation Utility

Windows 7

Intel(R) HD Graphics

Windows 7 (32 bit)

Realtek High Definition Audio

Windows 7

Intel(R) PRO LAN Network

Windows 7 (32 bit)

Intel(R) ME 11.x

Windows 7

Intel(R) USB 3.0

Windows 7
