AMS210

Automatic Control System with 9th/8th Gen Intel® Core™ Processor

  • 9th/8th Gen Intel® Core™ Processor (35W TDP)
  • 2x DDR4 SO-DIMM, Max. 32GB
  • 4x Gigabit LAN
  • 512k SRAM on board
  • 2x expansion slots
  • 3x DisplayPort outputs
  • 2.5" drive bays (supports RAID 0/1)
  • 15 years life time
  • IEC 62368-1 EN 62368-1

The AMS210 is a high-performance embedded box PC designed for factory automation, machine vision, digital signage and a wide range of industrial IoT applications. It can be outfitted with 9th/8th Gen Intel® Core™ processors, up to 32GB of DDR4 memory and two 2.5" disk drives with RAID 0/1.


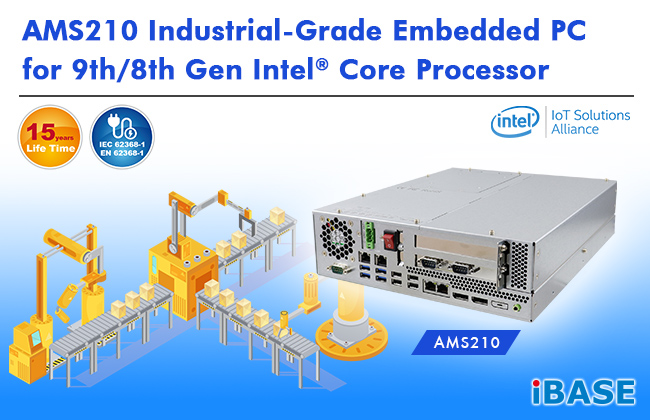

AMS210 Automatic Control System

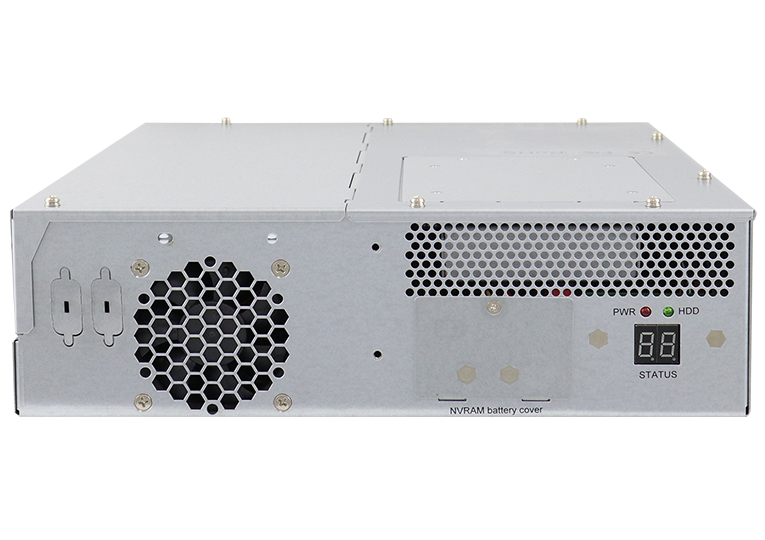

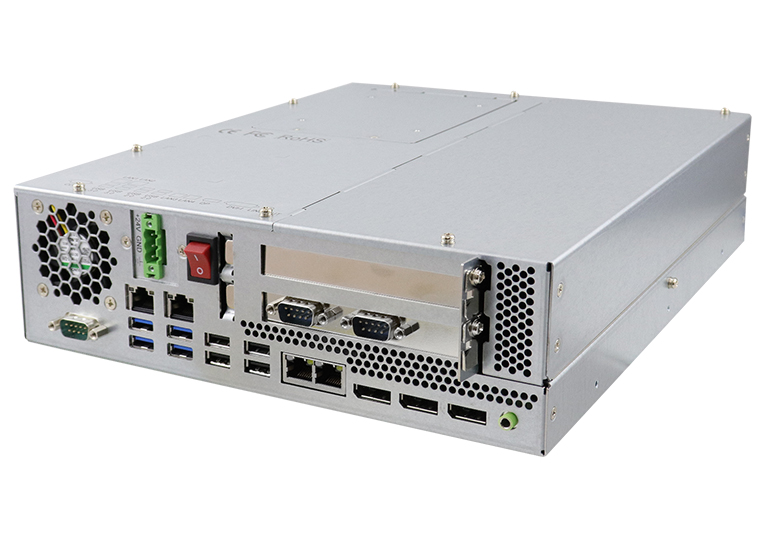

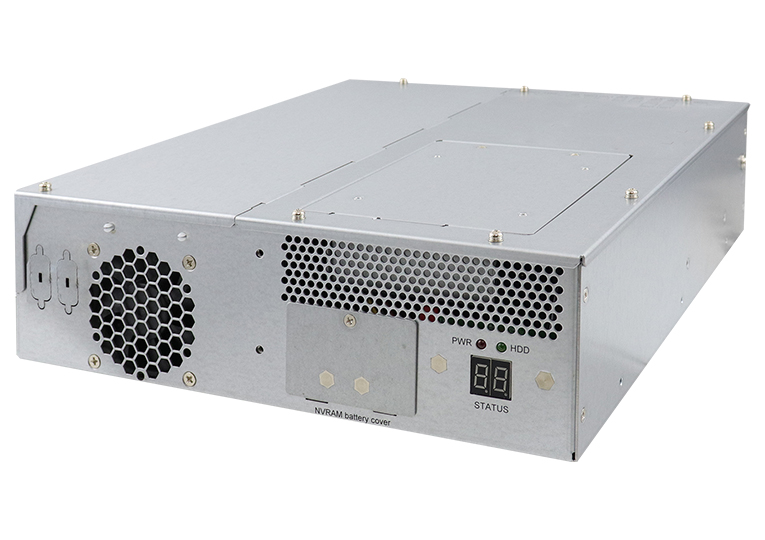

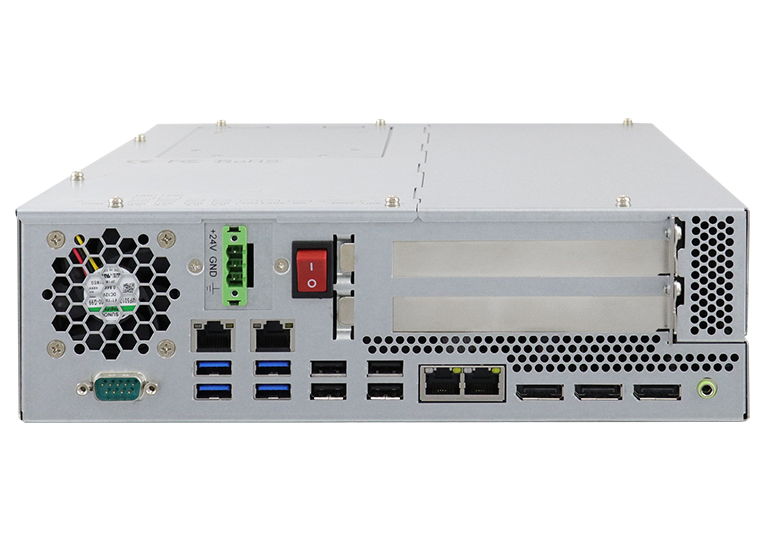

The AMS210 has a straightforward design with front I/O accessibility, including four USB 3.1, four USB 2.0, three DisplayPorts, and a serial port to connect to a diverse set of peripheral devices, as well as four Gigabit LAN ports to handle high bandwidth data processing requirements. Two flexible expansion slots supporting a combination of PCI-E(x16), PCI-E(x4) and PCI interface are also conveniently located at the front for easy access. To achieve operational reliability in harsh industrial environments, it features an operating temperature range from 0°C to 55°C and vibration endurance of up to 3 Grms (with SSD).


Measuring 297.4(W) x 266.2(D) x 78.5(H) mm, the AMS210 is available in barebone or can be equipped with an Intel® Core™ i7-9700TE processor, 8GB RAM, and a 500GB SATA drive. It also supports an optional 24V power adaptor and two additional serial ports.

System Mainboard Customized board
CPU Type 9th/8th Gen Intel® Core™ Processor
System Speed Up to 4.0GHz
Memory 2x 4GB DDR4-2666/2400 SO-DIMM
Front Panel External I/O 2x RS232 (Optional COM port cable)
Rear Panel External I/O 1x RS232/RS422/RS485
1x RS232 (Optional COM port cable kit)
1x Power On/Off switch
3x DisplayPort (1x DP via pin-header)
4x USB 2.0
4x RJ45 (Gigabit Ethernet)
4x USB 3.1
1x Line-Out
1x DC input (3-pin Phoenix connector with lock)
Expansion Slots ABP-IP701: 1x PCI-E(x16) + 1x PCI-E(x4)
ABP-IP702: 1x PCI + 1x PCI-E(x16)
ABP-IP703: 2x PCI
Storage 2x 2.5" SATA HDD or SSD (Optional 2nd drive bay bracket)
Construction SGCC
Chassis Color Sliver
Mounting Desktop or wall mount
Dimensions 297.4mm(W) x 266.2mm(D) x 78.5mm(H)
11.71" (W) x 10.48" (D) x 3.09" (H)
Weight 5.9kg
Operating Temperature 0°C~55°C (32°F~131°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10~95%, non-condensing@60 degree C
Vibration Operating: 3Grms / 5~500Hz
Shock Operating: 20 g / 11 ms
Non-operating: 40 g / 11 ms
Certification CE/FCC Class-B/ LVDS (Prescan only)
AMS210 Box PC Controller with Intel® Core™ i7-9700TE Processor CPU with 8GB DDR4 SO-DIMM, 2.5” 500GB SATA HDD/SSD and 1x PCI + 1x PCI-E(x16) expansion slots
AMS210M Box PC Controller MB211 w/o CPU / memory/ HDD / riser card / power adaptor, desktop stand & mounting brackets (RoHS2)
270W power adaptor Kit (optional) 270W (24V@11.25A) power kit compatible with IEC62368-1/EN62368-1
