Embedded Computing

MI999

10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® with Intel® W480E/Q470E/H420E PCH Mini-ITX Motherboard

  • 10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® processors, up to 4.8GHz
  • 2x DDR4 SO-DIMM, Max. 64GB, ECC compatible
  • Intel® Processor integrated graphics, supports DVI-D, HDMI, DisplayPort and 24-bit dual channel LVDS or eDP
  • Dual Intel® Gigabit LAN
  • 6x USB3.2, 4x USB2.0, 4x COM, 4x SATA III
  • 1x PCI-E (x16), 2x M.2 (E-key, M-Key)
  • Watchdog timer, Digital I/O, iAMT (14), TPM (2.0)
  • 15 years life time
  • Microsoft Azure Certified-IoT

The MI999 is an industrial grade Mini-ITX motherboard based on Intel's latest Q470E, H420E, and W480E chipsets. The board is designed to accommodate 10th Gen Intel® Core™ processors (codename Comet Lake-S) in LGA 1200 package with a Thermal Design Power (TDP) of up to 80W. Supporting up to 64GB system RAM and 2666/2933 MHz memory speeds, the new MI999 enables smooth, responsive performance for faster multitasking and productivity to fit the needs of demanding applications such as AIoT industrial automation, intelligent transportation, machine vision, and modern smart factories.

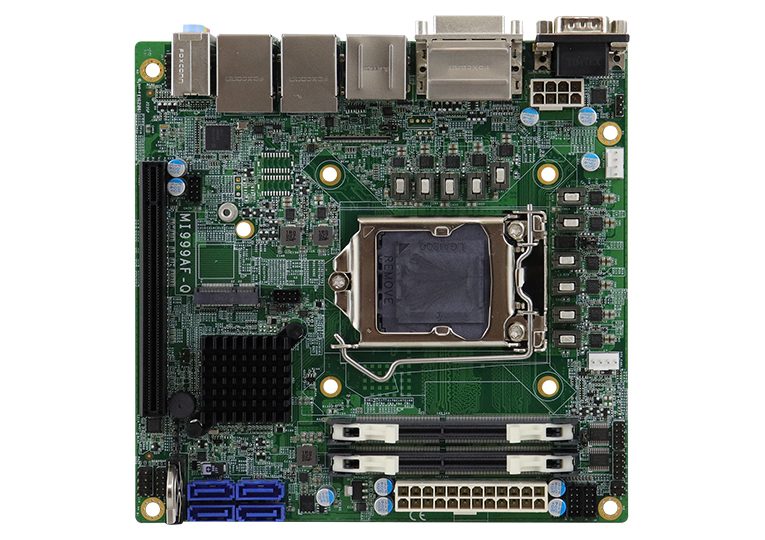

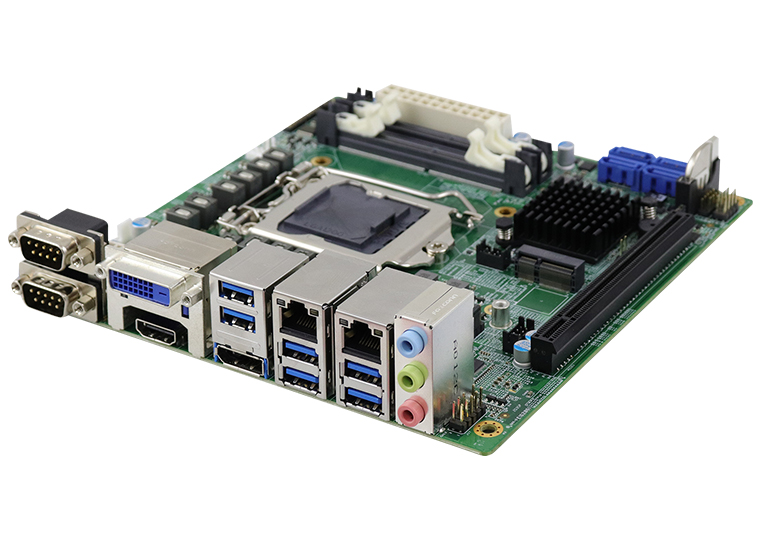

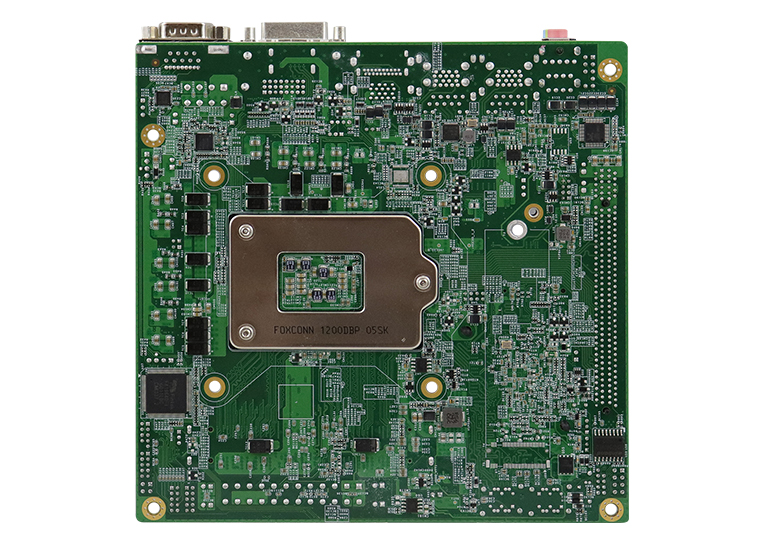

MI999 Mini-ITX Motherboard

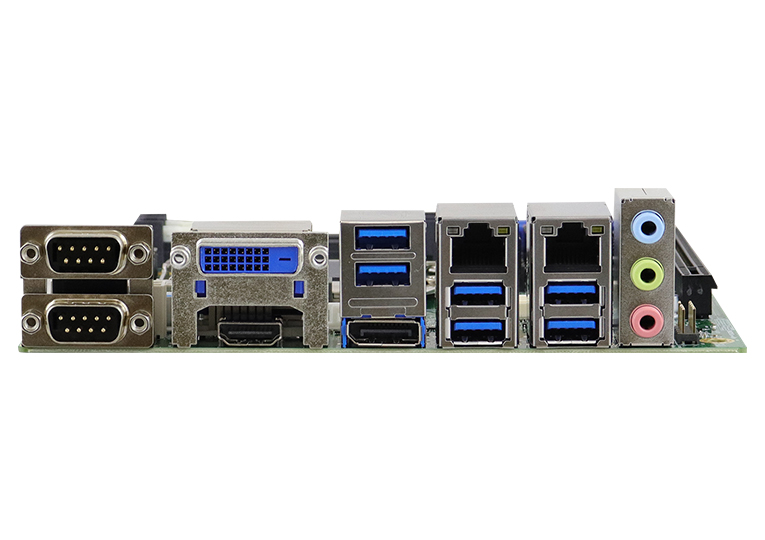

Built to provide high performance and stability to satisfy the requirements in various environments, the IBASE MI999 offers a comprehensive set of I/O for fast data transfers and versatile peripheral connections. These include two Gigabit LAN, six USB 3.2 (Gen1), four USB 2.0, four COM, and four SATA III ports. Expansion and storage are available with one PCIe(x16) and two M.2 slots (E-Key, CNVi and M-Key, NVMe).

Four independent 4K displays can be projected with the Intel® processor integrated graphics via DVI-D, HDMI, DisplayPort and eDP or 24-bit LVDS interface for multi-screen scenarios. The MI999 series is divided into two groups, one with LVDS and the other with eDP support. In addition, the motherboard features iAMT (14) and TPM (2.0) technologies for remote management and computer platform integrity functions. Operating systems supported are Win10 (64-bit), Linux Ubuntu (64-bit) and Windows Server 2019 (MI999AF(E)-W only).

CPU Socket LGA1200
CPU 10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® processors, up to 4.8GHz
PCH MI999AF-W: W480E
MI999AF-Q: Q470E
MI999EF-H: H420E
Memory 2x DDR4 SO-DIMM socket, Max 64GB (supports ECC by CPU SKU)
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x M.2 (M2280) NVMe
Expansion Slots 1x PCI-E (X16)
Mini Type Slots 1x M.2(E-Key@2230), supports CNVi
1x M.2(M-Key@2280), supports NVMe (for MI999AF-W/ MI999AF-Q Series only)
Graphics Controller Intel® UHD Graphics 630
Video Output Supports, DVI-D, HDMI (1.4b), DisplayPort (1.2), and eDP or 24-bit Dual channel LVDS
Ethernet 1st LAN
MI999AF-W/ MI999AF-Q: Intel® I219LM
MI999EF-H: Intel® I219V
2nd LAN
MI999AF-W: Intel® I210AT
MI999AF-Q/ MI999EF-H: Intel® I211AT or I210AT
I/O Chip Fintek F81964D-I
Serial Port MI999AF-W/ MI999AF-Q: COM1~ COM2 (RS232/422/485)
MI999EF-H: COM1~ COM2 (RS232) COM3~ COM4: RS232
USB 2.0 4x USB 2.0 onboard
USB 3.X 6x USB 3.2 (Gen1, 5Gbps)
Serial ATA 4x SATA III
Audio built-in HD audio + Realtek ALC888S codec
TPM 2.0
Others Digital I/O (4-in/4-out), RAID, iAMT (14) or Eup/ErP
Dimensions (L X W) 170mm x 170mm
Power Consumption Intel® Core™ i5-10500E, 3.00GHz, with 2x 4GB DDR4 2133
+12V: 6.08A
+5V: 1.19A
+5Vsb: 0.11A
+3.3V: 0.90A
Operating Temperature 0°C ~ 60°C (32°F~140°F)
Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 95% (non-condensing @60°C)
MI999AF-W LGA1200 W480E Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, LVDS, Dual Gigabit LAN, RAID, iAMT(14), TPM(2.0)
MI999AFE-W LGA1200 W480E Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, eDP, Dual Gigabit LAN, RAID, iAMT(14), TPM(2.0)
MI999AF-Q LGA1200 Q470E Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, LVDS, Dual Gigabit LAN, RAID, iAMT(14), TPM(2.0)
MI999AFE-Q LGA1200 Q470E Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, eDP, Dual Gigabit LAN, RAID, iAMT(14), TPM(2.0)
MI999EF-H LGA1200 H420E Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, LVDS, Dual Gigabit LAN, EuP/ErP, TPM(2.0)
MI999EFE-H LGA1200 H420E Mini-ITX motherboard w/ DVI-D, HDMI, DisplayPort, eDP, Dual Gigabit LAN, EuP/ErP, TPM(2.0)
