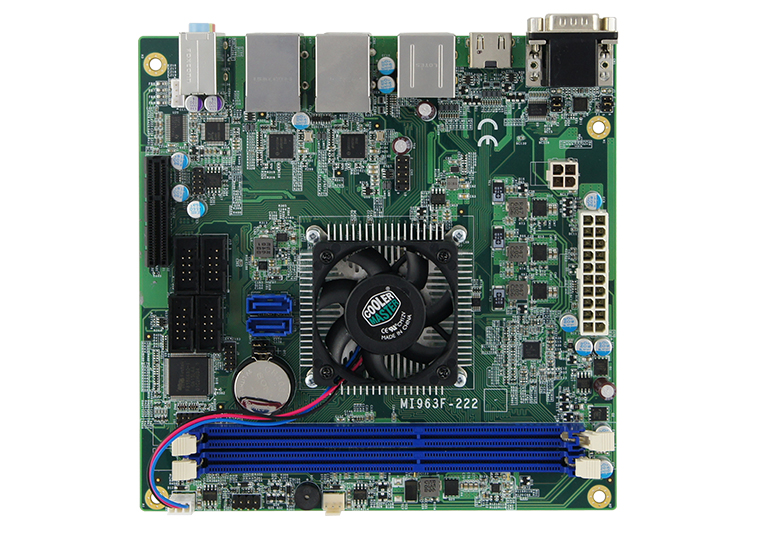

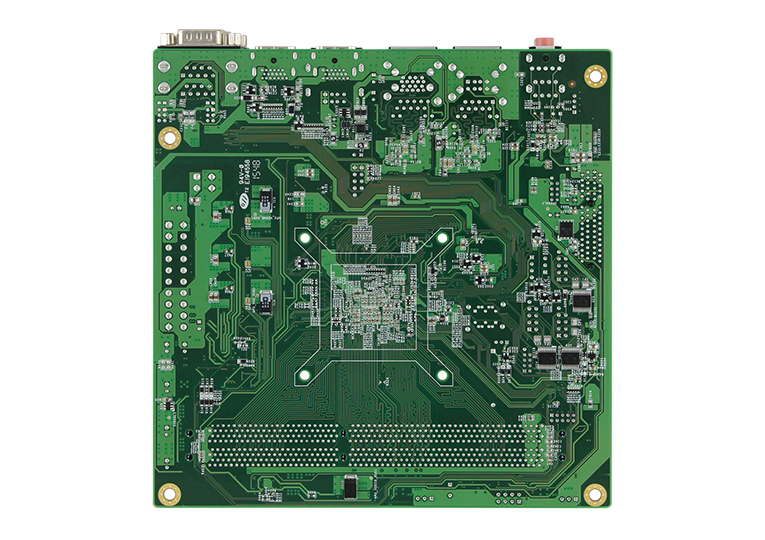

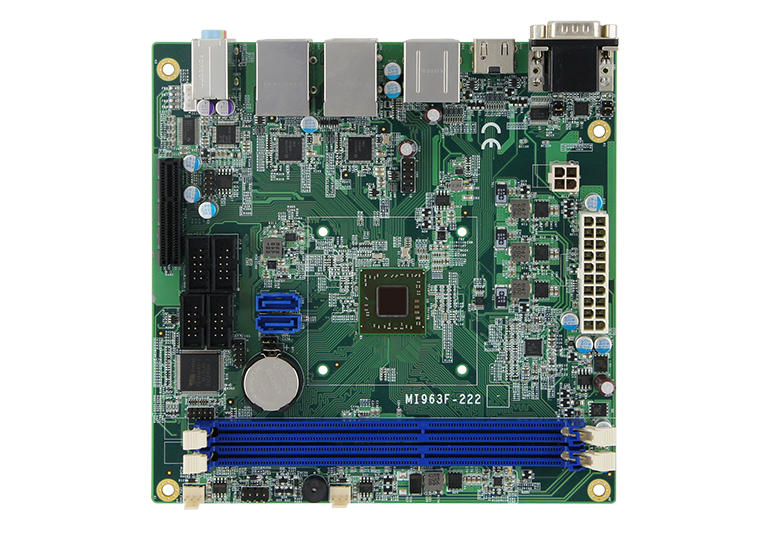

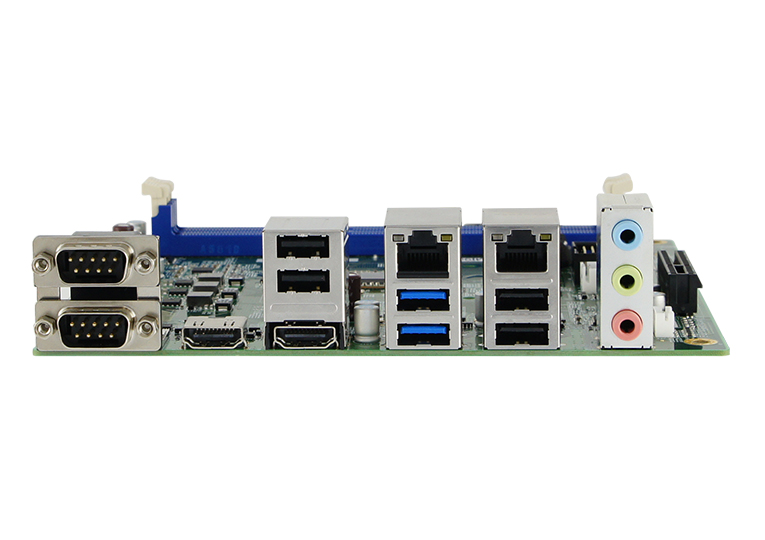

AMD Embedded G-Series Mini-ITX Motherboard

  • Onboard AMD Embedded G-Series GX-424CC SoC, 2.4GHz
  • 2x DDR3 DIMM, Max. 8GB
  • Supports 2x HDMI
  • 2x Intel® PCI-E Gigabit LAN
  • Watchdog timer, Digital I/O
  • 6x USB 2.0, 2x USB 3.0, 6x COM, 2x SATA III
  • 1x PCI-E(x8) [(x4) Link]
CPU Socket APU on board
CPU AMD Embedded G-Series GX-424CC SoC (2.4GHz)
PCH Integrated
Memory 2x DDR3 DIMM, Max. 8GB (ECC compatible )
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 1x PCI-E (x8)[(x4) Link]
1x PCI-E (x1)
Mini Type Slots N/A
Graphics Controller AMD Embedded G-Series SoC built-in GPU (AMD Radeon™ HD8000 series)
Video Output Supports 2x HDMI
Ethernet 2x Intel® I211AT or I210AT Gigabit LAN
I/O Chip Fintek F81846AD-I
Serial Port 5x RS232, 1x RS232/422/485 (jumper-less selection)
USB 2.0 4x USB 2.0 on board
2x USB 2.0 via pin-header
USB 3.X 2x USB 3.0 on board
Serial ATA 2x SATA III
Audio AMD Embedded G-Series SoC built-in HD audio + Realtek ALC888S codec
Others Digital I/O (4-in/4-out), ATX power connector
Dimensions (L X W) 170mm x 170mm (6.7" x 6.7")
Power Consumption AMD GX-424CC 2.4GHz
w/ 2x DDR3L-1600 8G
+12V: 1.56A; +5V: 1.75A; +5VSB: 0.13A; +3.3V: 0.23A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
MI963FCS-222 AMD Embedded G-Series GX-222GC APU on board Mini-ITX motherboard, w/ 2x HDMI, PCI-E, dual Gigabit LAN
MI963FCS-424 AMD Embedded G-Series GX-424CC APU on board Mini-ITX motherboard, w/ 2x HDMI, PCI-E, dual Gigabit LAN
CATALOGS 2022 Embedded Computing Catalog


Model Chipset Video Audio Network Others

AMD Chipset & Video Driver

Windows 7 & 8 & 10

Realtek ALC662

Window XP

Intel I211AT

Windows 7 & 8
