AMD Ryzen™ 3000 Series Processors Mini-ITX Motherboard

  • IBASE iCONTROL intelligent energy-saving & Observer Hardware remote monitoring technologies
  • AMD Ryzen™ 3000 Series 7 & 5 Processors
  • 2x DDR4 2400MHz SO-DIMM, Max. 64GB
  • 1x DisplayPort for 2nd Gen AMD APU
  • 1x PCI-E x16 (default) or 2x PCI-E x8 (optional with riser card)
  • 6x USB3.1, 2x COM, 1x Gigabit LAN
  • 1x M.2 (E-key), 1x Mini PCI-E socket (full-size), 1x SIM slot
  • Observer
  • AMD Ryzen 5Embedded
  • AMD Ryzen 7Embedded

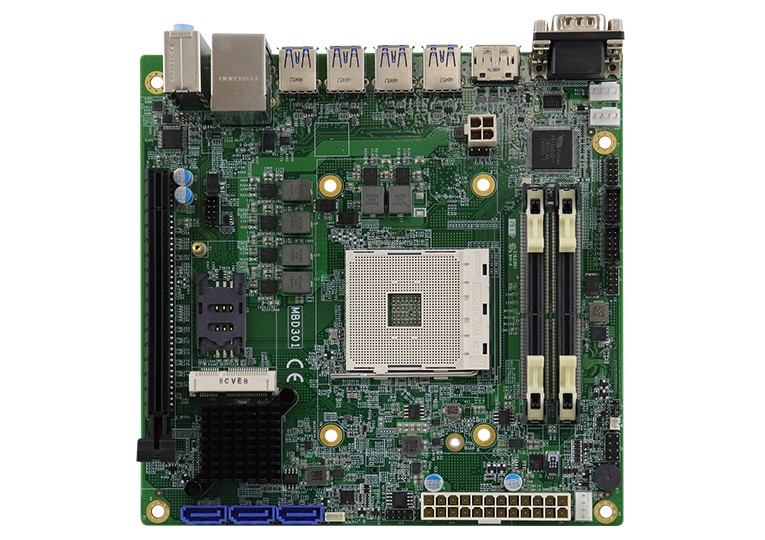

 MBD301 Mini-ITX motherboard

The MBD301 Mini-ITX motherboard is based on the AMD X470 chipset. Supporting AMD Ryzen desktop processors for AM4 Socket and up to 64GB of DDR4-2400 memory, MBD301 provides superior processing and graphic performance.

Combined with the new dynamic AMD Ryzen 3000 Series processors featuring clock speeds of up to 3.8GHz and improved multi-core performance compared to its predecessor, the robust MBD301 is suitable for mid-range to high-performance embedded applications in the fields of industrial control automation, transportation, gaming and digital signage. Bundled with IBASE’s own iCONTROL intelligent energy-saving green technology and the Observer remote monitoring technology, it enables power efficiency through automatic power scheduling, power failure detection, restoration from system crash, as well as system boot in under low ambient conditions to ensure reliability and longevity even in the most demanding environments.

The MBD301 X470 Mini-ITX motherboard is designed with high-speed I/O connectivity including 1 x DP (1.2) for 2nd Gen AMD APUs, 1x GbE, 1 x PCIe x16 (or 2 x PCIe x8) with an optional riser card, 3 x SATAIII, 4 x COM, 1 x M.2 E key, 1 x full-size mPCIe, 1 x SIM and a 12V DC input. Among the rear I/O connectors available are six USB 3.1 Gen1 ports that have a 10Gbps transfer speed - double that of USB 3.0 standards. The board supports both Windows 10 and Linux Ubuntu operating systems.

CPU Socket AMD AM4
CPU AMD Ryzen™ Embedded 3000 Series on board
Memory 2x DDR4 SO-DIMM memory slots; Max. 64GB
Watchdog Timer 256 levels
H/W Monitor YES
Storage Device Interface N/A
Expansion Slots 1x PCI-E (x16) slot supports single at x16 (PCI-E2) for AM4 Pure CPU series
1x PCI-E (x16) slot supports single at x8 (PCI-E2) for AM4 APU serie
Mini Type Slots 1x Mini PCI-E (full-sized)
1x M.2 socket (Key-E)
1x SIM card slot
Graphics Controller AMD Radeon™ Vega GPU integrated
Video Output 1x DisplayPort (1.2) for AM4 APU series
Ethernet 1x Realtek RTL8111H
I/O Chip Fintek F81439
Serial Port COM #1 (RS232/422/485) (jumper-less selection)
COM #2~COM #4 (RS232 only)
USB 2.0 N/A
USB 3.X 6x USB 3.1 Gen1
Serial ATA 3x SATA III
Audio built-in HD audio + Realtek ALC662 codec
Others 2x 5 pin-header x1 for Digital I/O(5-in/5-out),
1x COM port header / DF-11 2x5 box header x2 for COM3/4 (RS232 only)
1x CPU Fan Connector (4-pin)
2x Chassis fan connectors (4-pin) (Smart fan Speed Control)
1x ATX standard 24-pin type & 4-pin type (+12V only)
1x USB 2.0 Headers (Support 2 USB 2.0 ports)
2-pin connector for RTC battery iSMART
Dimensions (L X W) 170mm x 170mm (6.7" x 6.7")
Power Consumption AMD Ryzen™ Embedded AM4 CPU/APU 3.0GHz w/ 2x 8GB DDR4-2400 +12V: 2.55A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
MBD301 AMD Ryzen™ Desktop (X470) Mini-ITX motherboard, with 6x USB3.1, 2x COMs, 1x Gigabit LAN, iSMART, +12V DC-in
