MB998

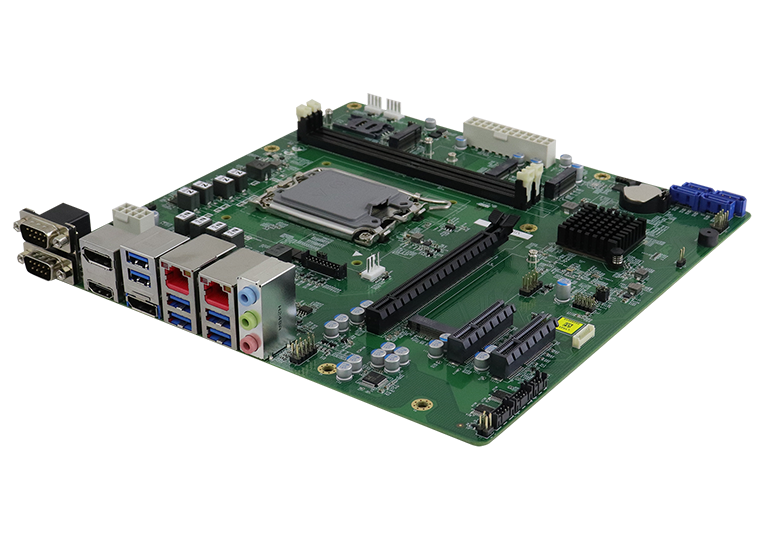

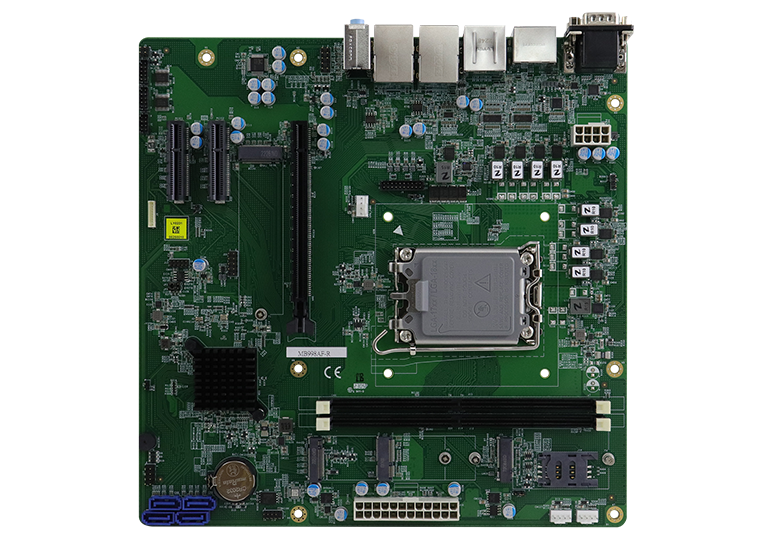

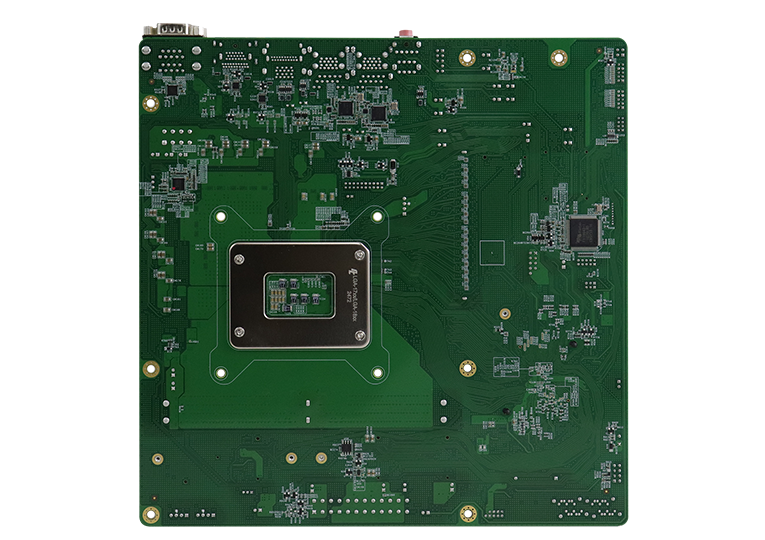

13th/12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® / Celeron® with Intel® R680E/Q670E/W680 Micro ATX Motherboard

  • 13th/12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® / Celeron® Processors
  • 2x DDR5 DIMM sockets, Max. 64GB
  • Intel® processor integrated graphics supports HDMI (2.0b), DVI-D and 2x DisplayPort(1.4) (DP++)
  • Dual Intel 2.5G LAN
  • 4x USB 3.2, 2x USB 3.1, 2x USB 2.0, 4x COM, 4x SATA III
  • 1x PCI-E (x16) [Gen.5.0], 1x PCI-E (x4) [Gen.4.0], 1x PCI-E (x4) [Gen.3.0]
  • 4x M.2 (B-key, E-key and 2x M-Key)
  • Watchdog timer, Digital I/O, iAMT(16.1) , fTPM
  • NEW
  • 5G

The MB998 Micro ATX motherboard is designed to deliver top-tier performance, reliability, and versatility in industrial applications. Harnessing the power of 13th/12th Gen Intel® Core™ i9/i7/i5/i3 processors and up to 64GB of DDR5 DIMM memory, the platform delivers an unprecedented level of speed, responsiveness, and efficiency when tackling intensive tasks or demanding applications.


MB998 Micro ATX motherboard is designed to deliver top-tier performance, reliability, and versatility in industrial applications.


The 5G-enabled MB998 is equipped with immersive graphics and display with HDMI (2.0b), DVI-D and two DisplayPort(1.4) (DP++) interface. Expansive connectivity features two high-speed Intel 2.5G LAN ports, I/O options consisting of four USB 3.2, two USB 3.1, two USB 2.0, four COM, four SATA III and a range of M.2 slots with B-Key, E-Key, and two M-Key variants, allowing users to harness the full potential of high-speed storage for fast boot times and rapid data access and elevate system performance to unmatched levels.

Safety and control are paramount in modern computing environments. This motherboard integrates a watchdog timer, digital I/O, iAMT (16.1), and fTPM, ensuring enhanced security, system monitoring, and manageability. With a PCIe x16 and two PCIe x4 slots, the board provides ample room for adding expansion cards to tailor to users’ unique needs. As part of the commitment to providing comprehensive solutions, IBASE's services encompass system integration, customization, and software support, enabling clients to expedite time-to-market.

CPU Socket LGA1700
CPU 13th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® / Celeron® Processors
PCH MB998AF-R : Intel® R680E PCH (support ECC)
MB998AF-Q : Intel® Q670E PCH
MB998AF-W : Intel® W680 PCH (Not IoTG sku)
Memory 2x DDR5 DIMM sockets, supports DDR5-4800/5600 memory module , Max. 64GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface SATA III & NVMe
Expansion Slots 1x PCI-E (x16) [Gen.5.0], 1x PCI-E (x4) [Gen.4.0], 1x PCI-E (x4) [Gen.3.0]
Mini Type Slots 2x M.2 (M-key, type:2280, PCI-E)
1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E)
1x M.2 (B-Key, type:3052, USB 3.1 + PCI-E)
Graphics Controller 13th Gen Intel® Core™ i7/i5/i3 processor integrated

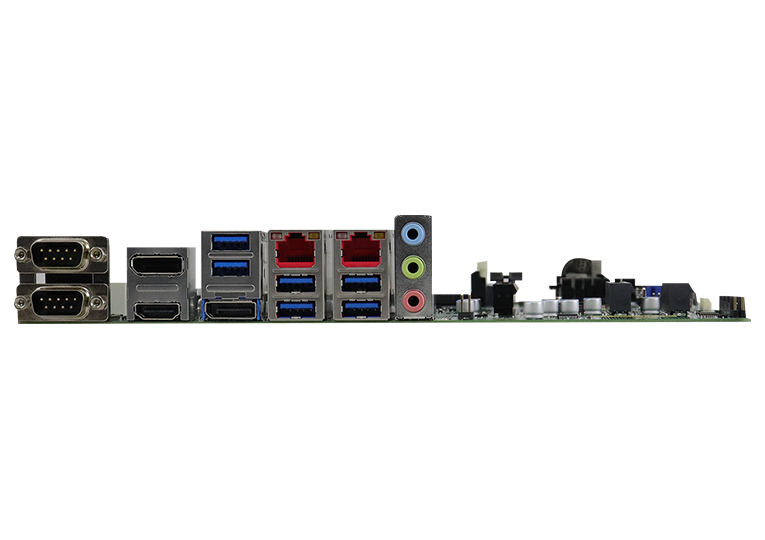

Video Output 1x HDMI (2.0b) + 2x DisplayPort (1.4b) (DP++) + DVI-D
Ethernet LAN 1: Intel® I226LM, supports 2.5G and iAMT
LAN 2: Intel® I226V, supports 2.5G only
I/O Chip Fintek F81964D-I
Serial Port 4 COM port : 2x RS232/422/485 + 2x RS232
USB 2.0 2x USB2.0 via pin-header
USB 3.X 4x USB 3.2(10Gbps), 2x USB 3.1(5Gbps) @edge connector
Serial ATA 4x SATA III
Audio Built-in HD Audio controller + Realtek ALC888S with 7.1 channels
TPM Supports fTPM
Others Digital I/O (4-in/4-out) , Watchdog timer, SIM
Dimensions (L X W) 244mm x 244mm (9.6“ x 9.6“)
Power Consumption Intel® Core ™ I7-13700 2.10GHzw/
w/2x 32GB DDR5 5600
+12V:20.09A
+5V:8.76A
+3.3V:4.73A
+5VSB:0.78A
Operating Temperature 0°C~60°C ( 32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
MB998AF-R LGA1700 R680E (support ECC) MicroATX Motherboard with 1x HDMI, 2x DisplayPort, 1x DVI-D, dual 2.5GbE, 4x SATA, RAID, iAMT (16.1), fTPM
MB998AF-Q LGA1700 Q670E MicroATX Motherboard with 1x HDMI, 2x DisplayPort, 1x DVI-D, dual 2.5GbE, 4x SATA, RAID, iAMT (16.1), fTPM
MB998AF-W (Not IoTG sku) LGA1700 W680 MicroATX Motherboard with 1x HDMI, 2x DisplayPort, 1x DVI-D, dual 2.5GbE, 4x SATA, RAID, iAMT (16.1), fTPM
