Embedded Computing

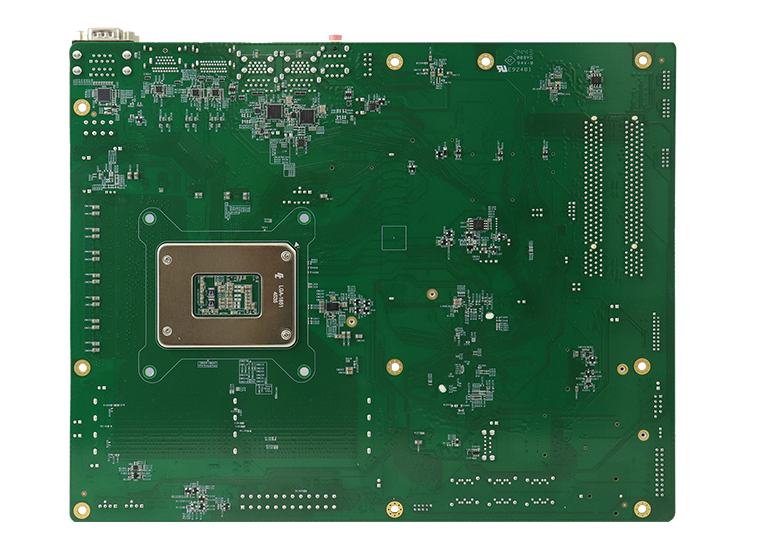

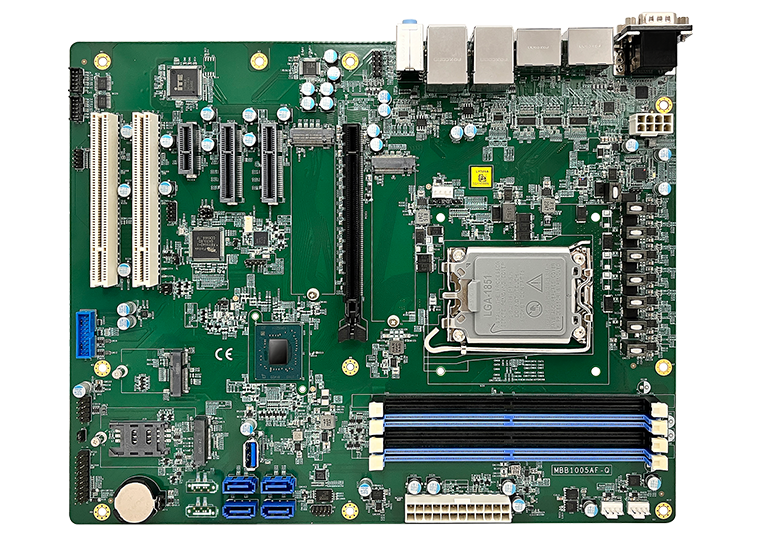

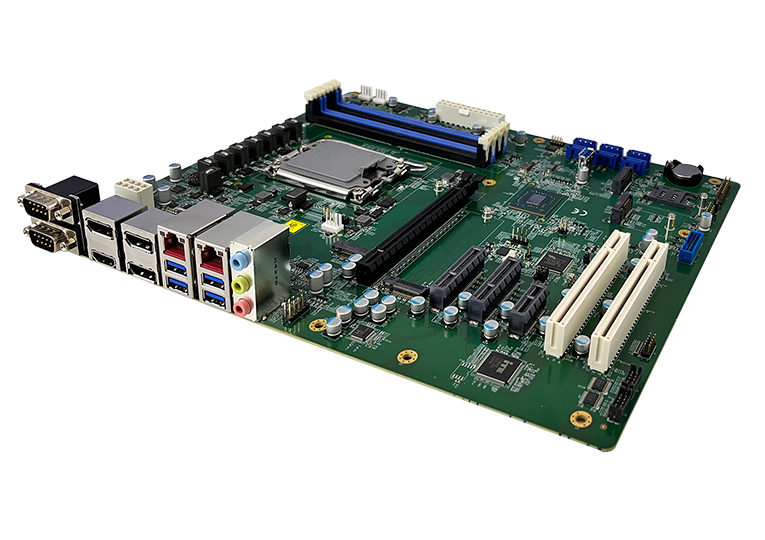

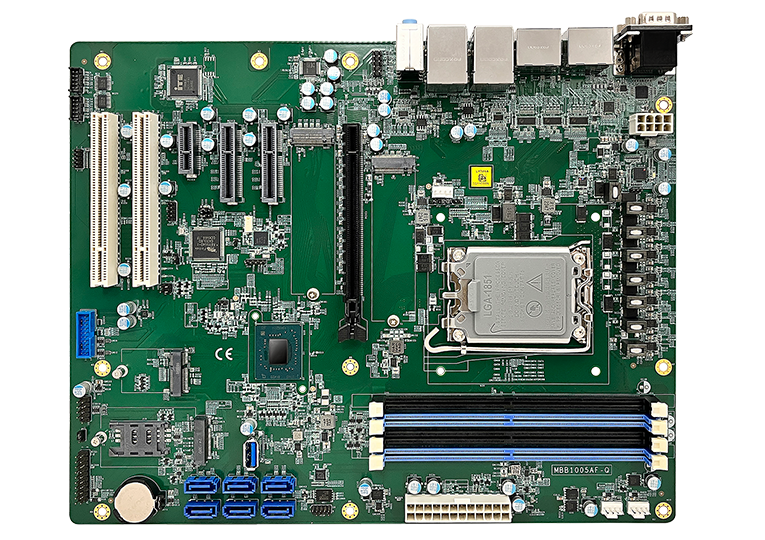

MBB1005
Intel® Core™ Ultra 200S Series DT processors (Arrow Lake-S) ATX Motherboard
- Intel® LGA1851 Core™ Ultra 9/7/5 200S Series Processors, up to 65W
- 4x DDR5 U-DIMM sockets, Max. 192GB
- Intel® Core™ Ultra 200S processor integrated graphic supports HDMI(2.0b) and 3x DisplayPort(1.4a) (DP++)
- LAN 1: Intel® I226LM, supports 2.5G and iAMT
- LAN 2: Intel® I226V, supports 2.5G only
- 7x USB 3.2, 2x USB 2.0, 4x COM, 4x SATA III
- 1x PCI-E (x16) [Gen.5.0]; 2x PCI-E(x4) [Gen.4.0] ; 1x PCI-E(x1) [Gen.4.0]; 2x PCI
- 4x M.2, including E-Key (2230), B-Key (3052) and 2x M-Key (2280)
- Watchdog timer, Digital I/O, iAMT(19.0) , fTPM(2.0)
| CPU Socket | LGA1851 |
| CPU | Intel® LGA1851 Core™ Ultra 200S Series DT Processors (Arrow Lake-S) |
| PCH | Q870 |
| Memory | 4x DDR5 U-DIMM sockets, Up to DDR5 -5600 memory module, Max. 192GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | SATA III & NVMe |
| Expansion Slots | 1x PCI-E (x16) [Gen 5.0] 2x PCI-E(x4) 1x PCI-E(x1) 2x PCI |
| Mini Type Slots | 2x M.2 (M-Key, type:2280, PCI-E(4x)) 1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E(1x)) 1x M.2 (B-Key, type:3052, USB 3.2 + PCI-E(1x)) |
| Graphics Controller | Intel® LGA1851 Core™ Ultra 200S Series DT processor integrated graphics |
| Video Output | 1x HDMI (2.0b) + 3x DisplayPort (1.4a) (DP++) |
| Ethernet | LAN 1: Intel® I226LM, Support 2.5G and iAMT LAN 2: Intel® I226V, support 2.5G only |
| I/O Chip | Fintek F81964D-I |
| Serial Port | 4x COM ports: 2x RS232/422/485 + 2x RS232 |
| USB 2.0 | 2x USB 2.0 via pin-headers |

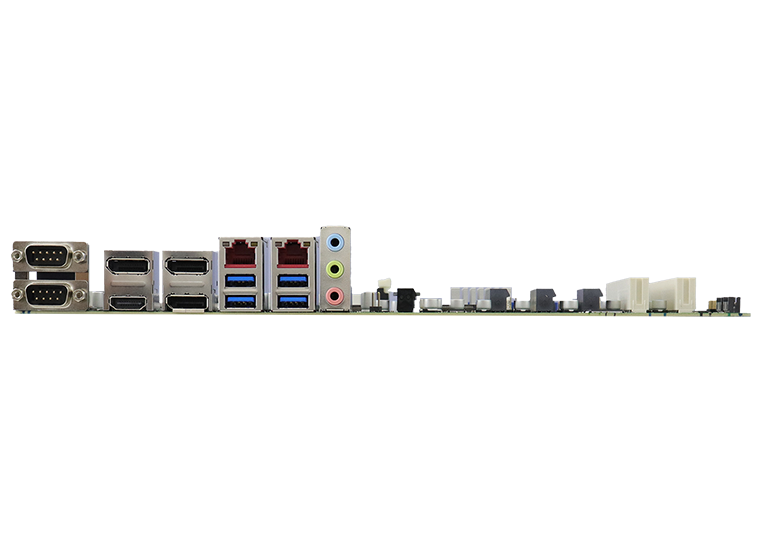

| USB 3.X | 6x USB3.2 (10G bps) @ edge connector, 1x USB3.2 (10G bps) @ onboard Type-A connector |
| Serial ATA | 4x SATA III |
| Audio | Built-in HD Audio controller + Realtek ALC888S w/ 7.1 channels |
| TPM | Support fTPM |
| Others | Digital I/O (4-in/4-out), Watchdog timer PDPC, iSMART(4.0) |
| Dimensions (L X W) | 305mm x 244mm (12"x 9.6") |
| Power Consumption | TBD |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
| MBB1005AF-Q | LGA1851 Q870 ATX Motherboard w /HDMI, 2x DisplayPort, 2x 2.5GbE, 4x SATA, RAID, iAMT (19.0), fTPM (2.0), iSMART(4.0) |
| DATASHEETS | MBB1005 |
| CATALOGS | Embedded Computing (Vol.24) |
