IP418

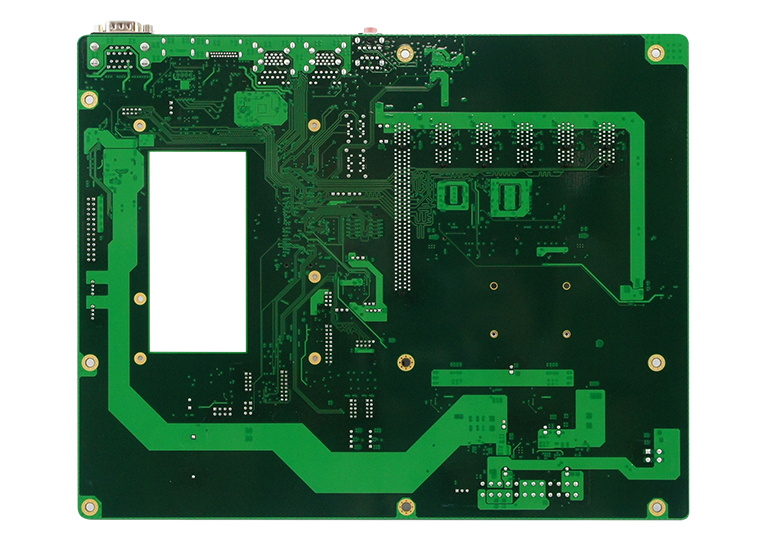

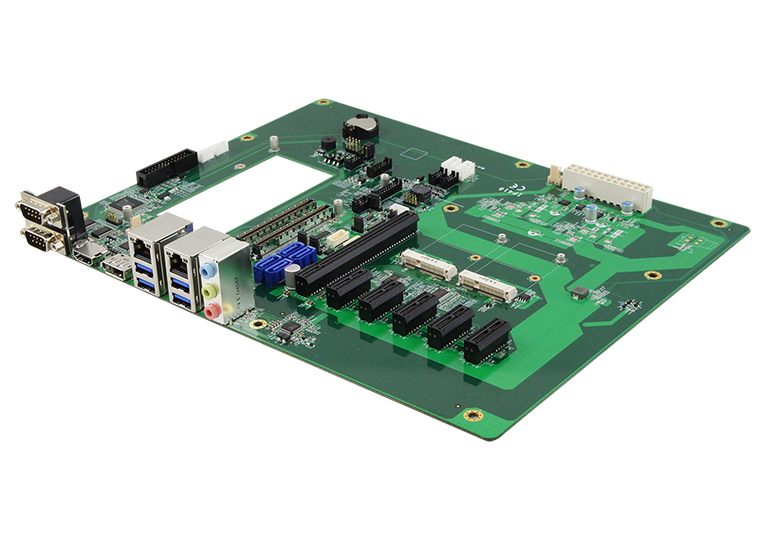

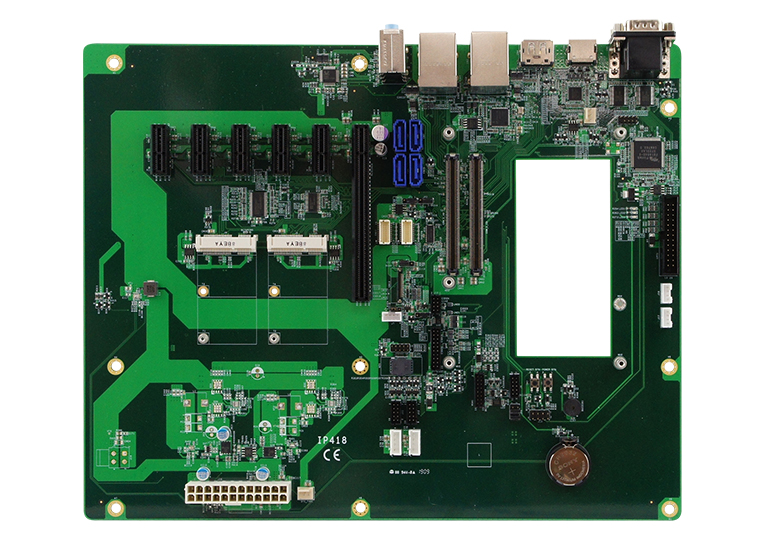

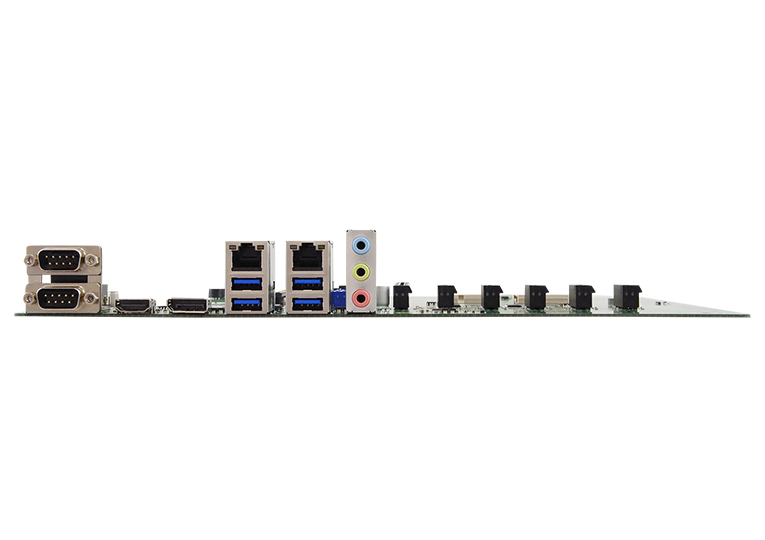

COM Express Type 6 (R3.0) Carrier Board

  • ATX form factor with PICMG COM.0 R3.0 Type 6 pin-out
  • Supports 1x VGA, 1x DisplayPort, 1x HDMI, 1x DVI-D
  • Supports 1x eDP or 1x LVDS
  • 1x PCI-E (x16), 5x Mini-PCI-E(x1), 2x Mini PCI-E sockets
  • ATX power connector / DC-in (12V only)
Form Factor ATX
Module Interface COM Express Type-6 (R3.0)
Expansions slots 1x PCI-E(16x) slot
5x PCI-E(1x) slot
Mini Type Slots 2x MiniPCI-E socket
Video Output 1x VGA
3x DDI (1xDisplayPort, 1x HDMI, 1x DVI-D)
1x dual channel LVDS or 1x eDP (Depends on CPU module)
Ethernet LAN1: Derived from COM Express CPU module
LAN2: 1x Intel® I210IT
I/O Chip Fintek F81964D-I
Serial Port 2x COM ports (RS232)
USB 2.0 4x USB 2.0
USB 3.0/ 3.1 4x USB 3.0
Serial ATA Derived form COM Express CPU module
4x SATA III
Audio Built-in ALC662 or ALC888S HD audio codec
Digital I/O 4-in/4-out
Watchdog 256 levels
KB/MS N/A
Parallel 1x Parallel port via box header
Dimensions (L X W) 305mm x 244mm (12" x 9.6")
Power ATX/ DC-IN 12V (only)
20+4-pin connector for ATX
2x 2-pin connector for 12V DC power-in (IP418-DC only)
Operating Temperature -40°C~85°C ( -40°F~185°F)
Storage Temperature -40°C~90°C (-40°F~194°F)
Relative Humidity 10% ~ 90% (non-condensing)
IP418 COM Express Type-6 Carrier Board, supports ATX
IP418-DC COM Express Type-6 Carrier Board, supports DC-in
