IP413

COM Express Type6 Carrier Board

  • 1x PCI-E(x16), 1x PCI-E(x4), 3x PCI-E(x1) expansion slots

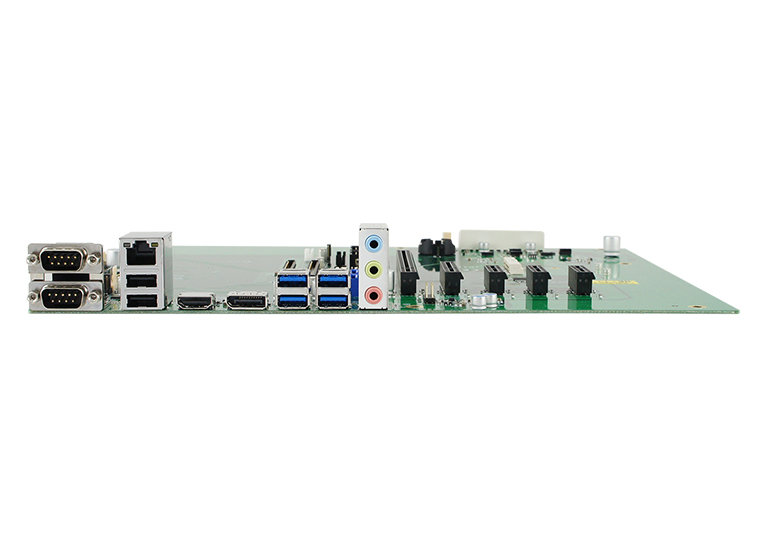

  • Edge connectors for dual COM, RJ45+ 1x dual USB (2.0), 1x DP, 1x HDMI, 2x dual USB 3.0, audio connector (Line-out, Line-in & Mic.)
  • Onboard headers for 2x COM (from COMe module), 1x KB/MS, 2x USB (2.0), DVI-D, CRT, LVDS, 4x SATA III, 1x LPT, COM Express (Type-6) connectors
  • ATX power connector / DC-in (12V only)
Form Factor ATX
Module Interface COM Express Type-6
Expansions slots 1x PCI-E(x16) slot
1x PCI-E(x4) slot
3x PCI-E(x1) slots
Mini Type Slots 1x MiniPCI-E socket (full-size, reserved one hole for half-size)
Video Output 1x VGA
3x DDI (1x DisplayPort, 1x DVI-D, 1x HDMI)
1x 18/24-bit dual-channel LVDS
Ethernet Derived from COM Express CPU module
I/O Chip Fintek F81846D-I
Serial Port 4x COM ports
-2x COM ports (from Super I/O)
-2x COM ports (from CPU module, TX/RX)
USB 2.0 Derived from COM Express module
4x USB 2.0
USB 3.0/ 3.1 4x USB 3.0
Serial ATA Derived from COM Express CPU module
4x SATA III
Audio Built-in ALC662 or ALC888S HD audio codec
Digital I/O 4-in/4-out
Watchdog 256 levels
KB/MS Yes
Parallel 1x Parallel port via box header
Dimensions (L X W) 305mm x 244mm (12" x 9.6")
Power ATX / DC-in 12V (only)
20+4-pin connector for ATX
2x 2-pin connector for 12V DC power-in (IP413-DC only)
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)
IP413 ATX COM Express Type-6 Carrier Board, Supports ATX

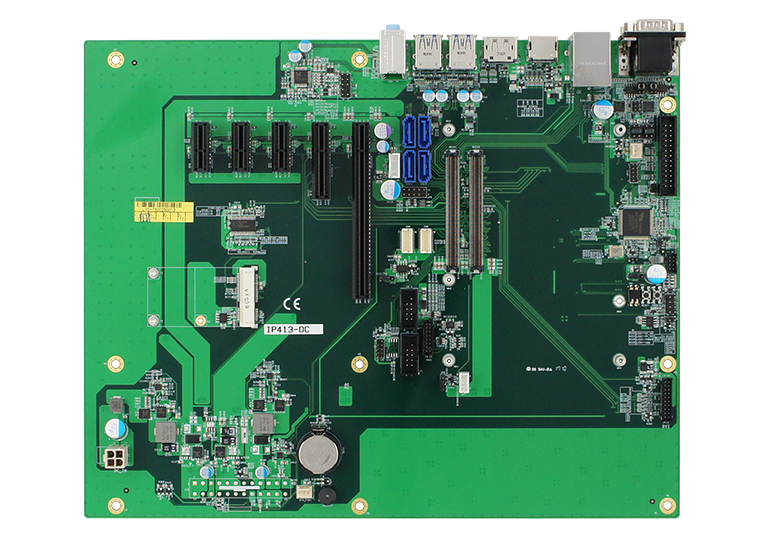

IP413-DC ATX COM Express Type-6 Carrier Board, Supports DC-in
