IP411

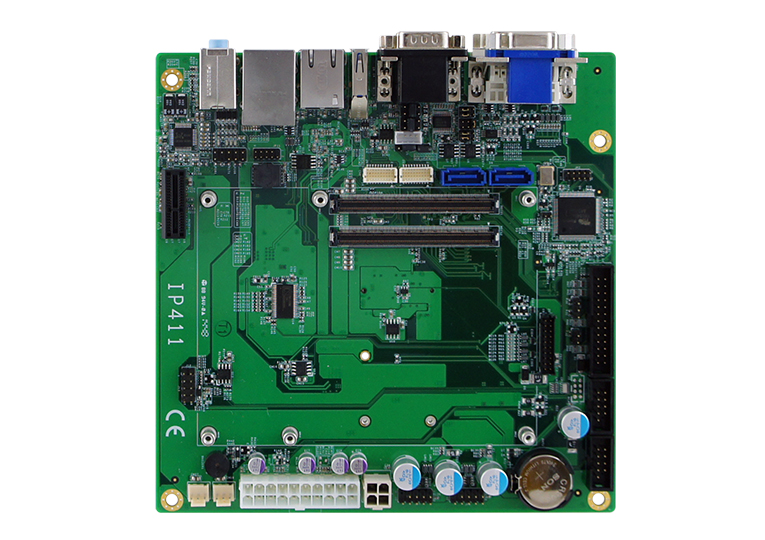

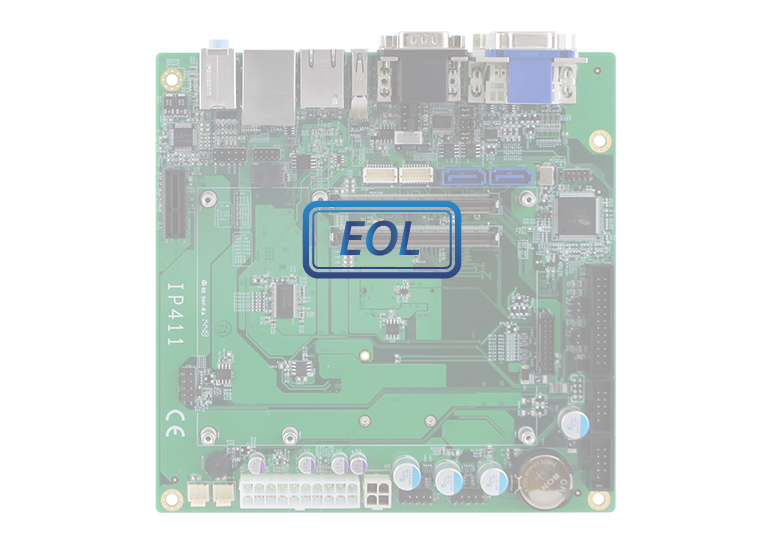

COM Express Type 6 Carrier Board

  • Mini-ITX COM Express carrier board for compact size COMe module
  • Supports DVI-D, VGA, 24-bit dual channel LVDS
  • 4x COM, 1x printer port, 1x USB3.0, 8x USB2.0, 2x SATAIII
  • Onboard dual PCI-E Gigabit LAN
  • 1x PCI-E(x1)
Form Factor Mini-ITX
Module Interface COM Express Type-6
Expansions slots 1x PCI-E(x1) slot
Mini Type Slots N/A

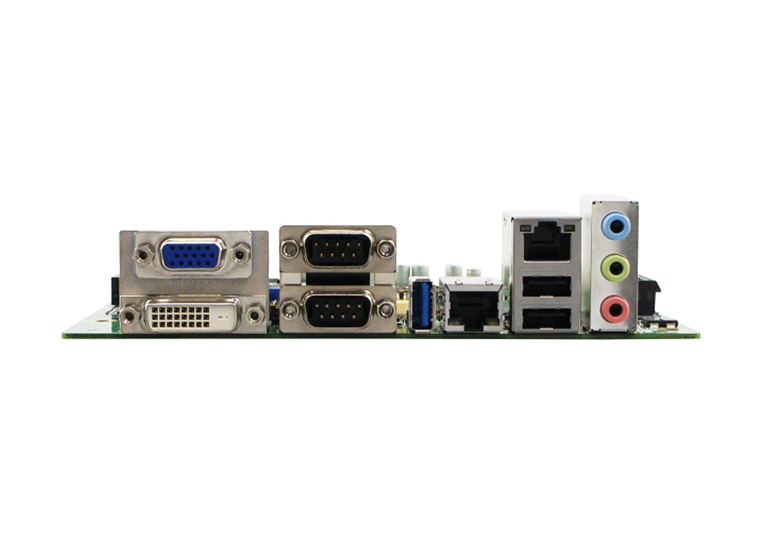

Video Output 1x VGA
2x DDI (1 x DVI-D, 1 x DVI-D shared with LVDS)
1x 18/24-bit dual-channel LVDS
Ethernet Derived from COM Express CPU module as GbE#1
Intel® I210IT Gigabit LAN x 1 as GbE #2
I/O Chip Fintek F81846AD-I
Serial Port 4x COM ports
2x COM ports (from Super I/O)
2x COM ports (from CPU module, TX/RX)
USB 2.0 Derived from COM Express CPU module
8x USB 2.0
USB 3.0/ 3.1 1x USB 3.0
Serial ATA Derived from COM Express CPU module
2x SATA III
Audio Built-in ALC662 or ALC888S HD audio codec
Digital I/O 4-in/4-out
Watchdog 256 levels
KB/MS Yes
Parallel 1x Parallel port via pin header
Dimensions (L X W) 170mm x 170mm (6.7" x 6.7")
Power 20+4pins connector for ATX
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)
