Embedded Computing

IBQ800

Intel® Atom® x7/x5 Qseven (R2.1) CPU Module

  • Onboard Intel® Atom® x5-E3930 @1.8GHz or x7-E3950 @2.0GHz [i-Temp support]
  • Onboard LPDDR4 memory
  • 1x Intel I210IT PCI-E Gigabit LAN
  • Supports TPM (2.0), eMMC5.0(optional)
  • Wide-range operating temperature
  • 15 years life time
  • Wide Temperature

The IBQ800 is a highly integrated low-power CPU module powered by an Intel® Atom® x7-E3950 @2.0GHz or x5-E3930 @1.8GHz processor. Designed to operate at extended temperatures ranging from -40°C to +85°C, the IBQ800 is suitable for use in industrial environments and vertical market segments including automation, gaming, ATM, transportation, power utility and digital signage.

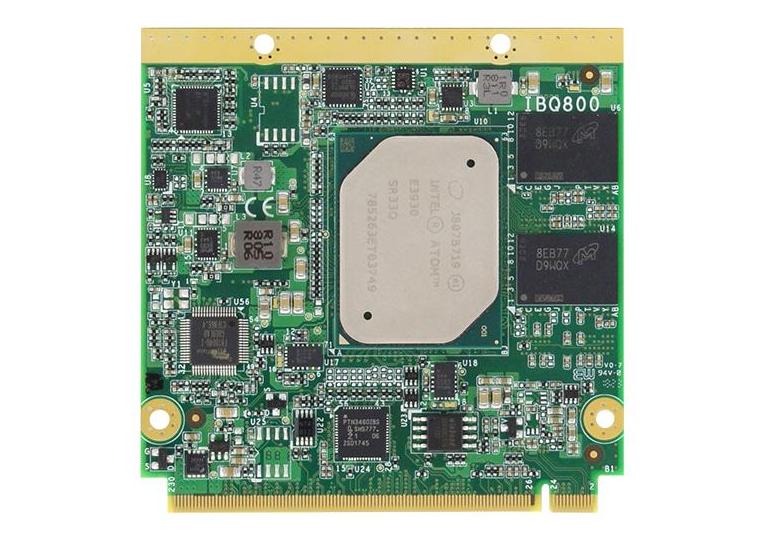

 IBQ800 Qseven

Built in the Qseven compact module footprint, the IBQ800 offers impressive performance and supports the necessary components and bus interfaces required for the targeted industrial, mobile, and embedded applications. It can be equipped with 8GB or 4GB of LPDDR4 memory and up to 32GB eMMC 5.0 SSD storage on board. The IBQ800 features an Intel® SoC integrated Gen9-LP graphics controller and comes with LVDS or eDP display interface.

With dimensions of 70mm by 70mm, it utilizes the established ruggedized MXM connector to interface to the carrier board and route all the I/O signals, including one Gigabit LAN, three USB 3.0, four USB 2.0, HD audio, one COM and two SATA III. The IBQ800 Qseven CPU module and the IP416 Qseven carrier board are now available.

CPU Intel® Atom® QC x5/ E3930 (1.3 GHz~1.8GHz)
Intel® Atom® QC x5/ E3940 (1.6 GHz~1.8GHz)
Intel® Atom® QC x7/ E3950 (1.6 GHz~2.0GHz)
PCH Integrated in Intel® SoC
Memory Onboard memory, LPDDR4, Max 8GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface eMMC 5.0 up to 32GB (optional)
Expansion Slots 4x PCI-E(x1)
Graphics Controller Intel® SoC integrated Gen9-LP graphics
Video Output Supports 1x DDI port, 1x eDP or 1x dual-channel LVDS (option)
Ethernet 1x Intel® I210IT PCI-E Gigabit LAN
I/O Chipset Fintek F81804U-I
Serial Port 1x COM port (RX/TX/RTS/CTS only
USB 2.0 4x USB 2.0, derived from Qseven CPU module
USB 3.X 3x USB 3.0, derived from Qseven CPU module
Serial ATA 2x SATA III via Carrier Board
Audio Intel® Atom® SoC built-in HD audio controller
TPM TPM (2.0)
Others SD, from SoC CPU
Dimensions (L X W) 70mm x 70mm (2.75" x 2.75")
Power Consumption Intel® Atom® E3950 1.6GHz w/ 8GB memory, DDR4 1600 +12V: 1.7121A
Operating Temperature -40°C ~ 85°C (-40°F~185°F)
Storage Temperature -40°C ~ 90°C (-40°F ~ 194°F)
Relative Humidity 90% (non-condensing @60°C)
IBQ800-X7LV Qseven CPU module with Intel® Atom® E3950 (2.0GHz), 4GB LPDDR4 memory on board, LVDS support
IBQ800-X7 Qseven CPU module with IIntel® Atom® E3950 (2.0GHz), 4GB LPDDR4 memory on board, eDP support
IBQ800-X5QLV Qseven CPU module with Intel® Atom® E3940 (1.8GHz), 4GB LPDDR4 memory on board, LVDS support
IBQ800-X5Q Qseven CPU module with Intel® Atom® E3940 (1.8GHz), 4GB LPDDR4 memory on board, eDP support
IBQ800-X5LV Qseven CPU module with Intel® Atom® E3930 (1.8GHz), 4GB LPDDR4 memory on board, LVDS support
IBQ800-X5 Qseven CPU module with Intel® Atom® E3930 (1.8GHz), 4GB LPDDR4 memory on board, eDP support
IP416 Qseven (R2.1) Carrier Board
HSIBQ800-1 Heat Spreader for IBQ800
HSIBQ800-A Heatsink for IBQ800
DATASHEETS IBQ800
CATALOGS Embedded Computing (Vol.22)
MANUALS IBQ800

Drivers

Model Chipset Video Audio Network Others
IBQ800

Intel Apollolake chipset

Windows 10

Intel HD Graphics Driver

Windows 10

Realtek High Definition Audio Driver

Windows 10

Intel LAN Driver

Windows 10

Intel SIO Driver

Windows 10

Intel TXE Driver

Windows 10

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
