ET976

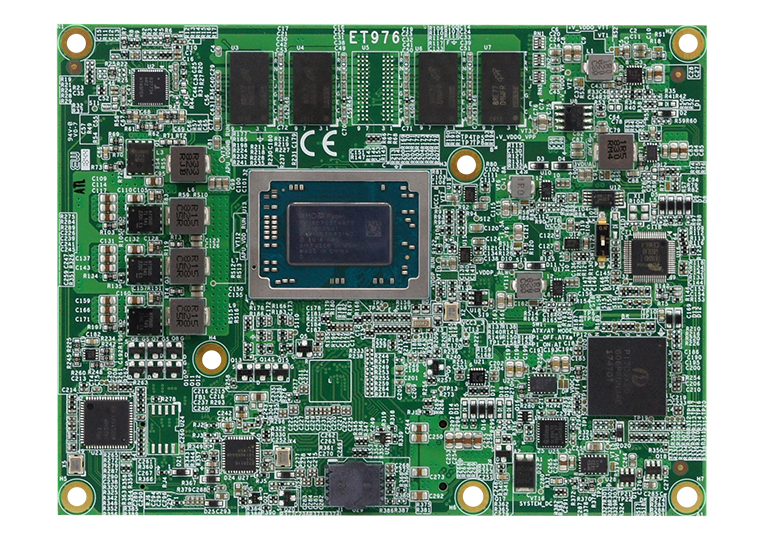

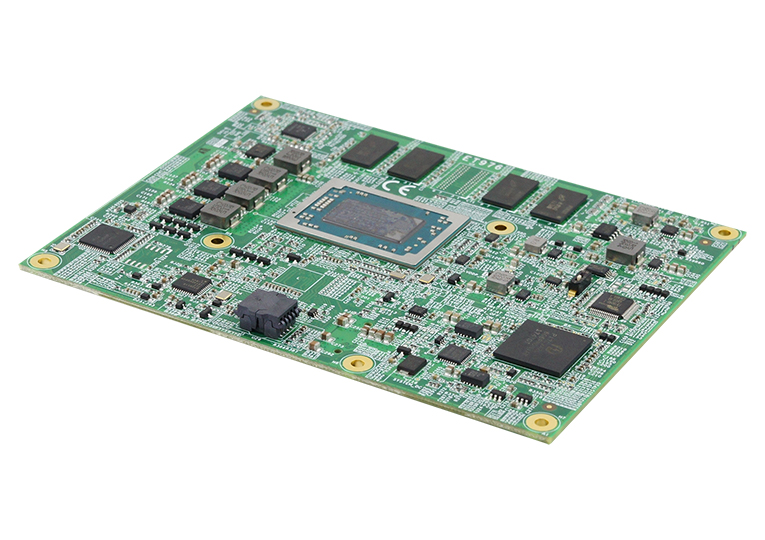

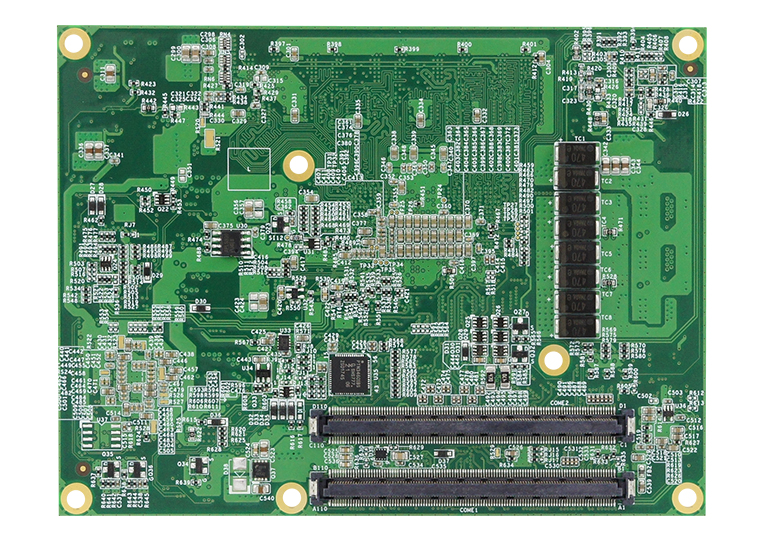

AMD Ryzen™ Embedded V1000 COM Express Type 6 (R3.0) CPU Module

  • Onboard AMD Ryzen™ Embedded V1000 processor
  • Onboard DDR4 memory, Max. 8GB (supports ECC)
  • Supports 3x independent displays (HDMI/DVI/DisplayPort & LVDS or eDP) via carrier board
  • 4x USB 3.1, 8x USB 2.0, 2x SATA III
  • TPM (2.0)
  • AMD Ryzen Embedded

The ET976 COM Express Compact Type 6 module is powered by AMD Ryzen™ Embedded V1000 SoC that targets graphics-intensive devices used in industrial automation, medical imaging, transportation, gaming as well as payment systems and ATM machines that rely on reliable performance to maintain stable operations.

ET976  COM Express

The new ET976 Computer-on-Modules are currently available with a scalable selection of AMD Ryzen SoCs including V120B, V1605B, and V1807B along with Radeon Vega 3 graphics that offer twice the level of performance when compared to its predecessor. Built with up to 8GB of DDR4 RAM (supports ECC), the 125 by 95mm module provides triple independent display ports, a Gigabit Ethernet and a high definition audio controller, and supports a wide variety of the high-speed interfaces on the carrier board such as eight USB 2.0, four USB 3.1, and two SATA III.

CPU Onboard AMD Ryzen™ Embedded V1000 Series
PCH N/A
Memory Onboard Memory, DDR4, Max. 8GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 1x PEG(x8)
8x PCI-E(x1)
Graphics Controller AMD Radeon™ Vega GPU integrated
Video Output 2x DDI
1x LVDS or 1x eDP (option)
Ethernet Intel® I211AT or I210AT Gigabit LAN
I/O Chipset Fintek F81804U-I
Serial Port 2x UART (Tx/Rx only)
USB 2.0 8x USB 2.0 via carrier board
USB 3.X 4x USB 3.1 via carrier board
Serial ATA 2x SATA III via carrier board
Audio AMD Ryzen™ built-in HD audio controller
TPM TPM (2.0)
Others Digial I/O (4in/4-out)
Dimensions (L X W) 125mm x 95mm (4.92" x 3.74")
Power Consumption AMD V1807B, 3.35GHz w/ 4GB DDR4-2666 +12V:6.28A; +5V: 0.28A, +5VSB: 0.16A, +3.3V: 0.52A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
ET976-1605LV-G COM Express (Type-6) CPU Module with AMD Ryzen™ V1605B QC APU (3.6GHz), LVDS, 8GB DDR4 memory on board
ET976-1605LV-4G COM Express (Type-6) CPU Module with AMD Ryzen™ V1605B QC APU (3.6GHz), LVDS, 4GB DDR4 memory on board
ET976-1605-8G COM Express (Type-6) CPU Module with AMD Ryzen™ V1605B QC APU (3.6GHz), 8GB DDR4 memory on board
ET976-1605-4G COM Express (Type-6) CPU Module with AMD Ryzen™ V1605B QC APU (3.6GHz), 4GB DDR4 memory on board
ET976-1202LV-E4G COM Express (Type-6) CPU Module with AMD Ryzen™ V1202B DC APU (3.2GHz), LVDS, 4GB DDR4 memory on board with ECC
ET976-1202LV-4G COM Express (Type-6) CPU Module with AMD Ryzen™ V1202B DC APU (3.2GHz), LVDS, 4GB DDR4 memory on board
HESET976-A Heatsink with Fan for ET976
HSET976-1 Heat spreader for ET976
