Embedded Computing

ET870

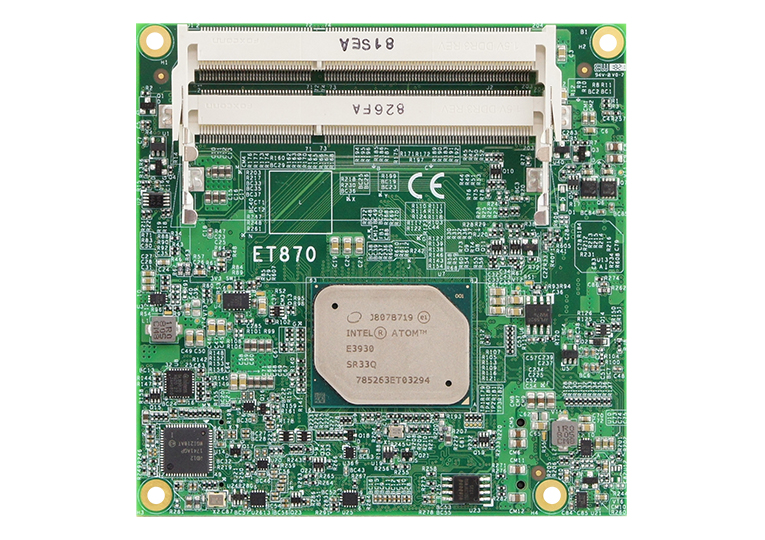

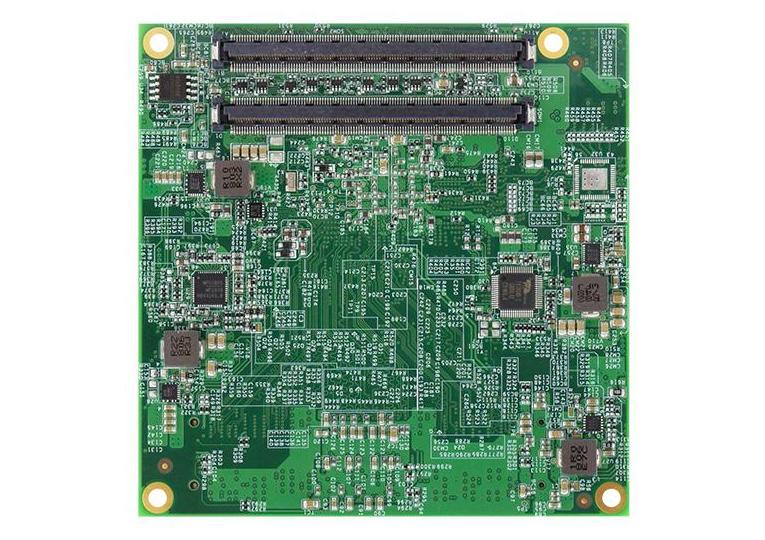

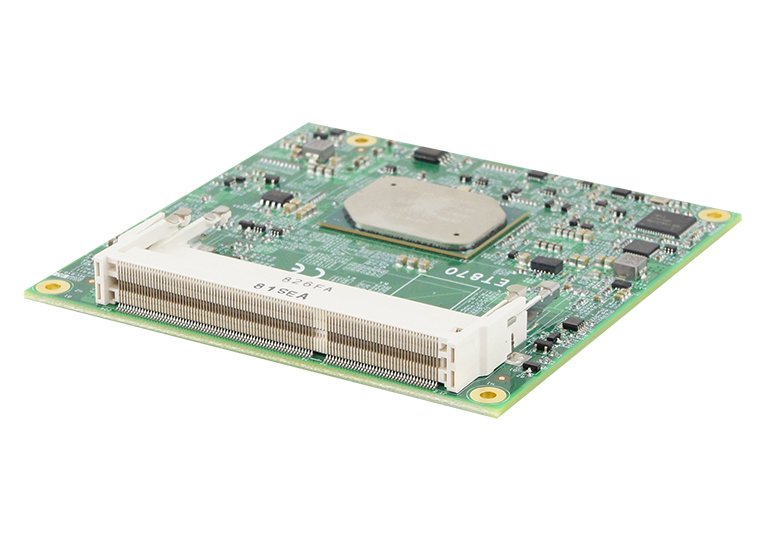

Intel® Atom® x7/ x5 COM Express Type 6 (R3.0) CPU Module

  • Onboard Intel® Atom® x7-E3950/ x5-E3940/ x5-E3930 Processor [i-Temp support]
  • 2x DDR3L-1866 SO-DIMM sockets, Max. 16GB
  • Supports 2x independent displays, DisplayPort/ DVI-D/ LVDS or eDP via Carrier Board (IP419)
  • Supports HD audio via Carrier Board (IP419)
  • Wide-range operating temperature from -40°C to 85°C
  • 15 years life time
  • Wide Temperature
CPU Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)
Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)
Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)
PCH Integrated in Intel® SoC
Memory Type 2x DDR3L-1866 SO-DIMM sockets, Max. 16GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 4x PCI-E(x1)
Graphics Controller Intel® SoC integrated Gen9 18EUs graphics
Video Output Supports 2x DDI (DisplayPort / DVI-D)
1x 24-bit dual-channel or eDP
Ethernet Intel® I210IT PCI-E Gigabit LAN
I/O Chip Fintek F81804U-I
Serial Port 2x COM ports (Tx/Rx only))
USB 2.0 4x USB 2.0 via Carrier Board
USB 3.X 3x USB 3.0 via Carrier Board
Serial ATA 2x SATA III via Carrier Board
Audio Intel® Atom® SoC built-in HD Audio
TPM TPM (2.0)
Others Digital I/O (4-in / 4-out)
Dimensions (L X W) 95mm x 95mm
Power Consumption Intel® Atom® E3950 1.6GHz w/ 2x 8GB DDR3L-1600
+12V: 2.18A
Operating Temperature -40°C ~85°C (-40°F ~ 185°F)
Storage Temperature -40°C ~ 90°C (-40°F ~ 194°F)
Relative Humidity 10~90% (non-condensing)
ET870-I50 COM Express (Type-6) CPU Module with Intel® Atom® x7-E3950 (2.0GHz), DDR3L dual-channel memory, eDP support
ET870-I50LV COM Express (Type-6) CPU Module with Intel® Atom® x7-E3950 (2.0GHz), DDR3L dual-channel memory, LVDS support
ET870-I40 COM Express (Type-6) CPU Module with Intel® Atom® x5-E3940 (1.8GHz), DDR3L dual-channel memory, eDP support
ET870-I40LV COM Express (Type-6) CPU Module with Intel® Atom® x5-E3940 (1.8GHz), DDR3L dual-channel memory, LVDS support
ET870-I30 COM Express (Type-6) CPU Module with Intel® Atom® x5-E3930 (1.8GHz), DDR3L dual-channel memory, eDP support
ET870-I30LV COM Express (Type-6) CPU Module with Intel® Atom® x5-E3930 (1.8GHz), DDR3L dual-channel memory, LVDS support
IP419 Mini-ITX COM Express Type-6 (R3.0) Carrier Board
HSET870-A Heatsink for ET870
HSET870-1 Heat spreader for ET870

Drivers

Model Chipset Video Audio Network Others
ET875/ET870

Intel Chipset

Windows 10

Intel Apollolake Graphics

Windows 10

Realtek High Definition Audio

Windows 10

Intel I21x

Windows 10

Intel TXE

Windows 10
