Embedded Computing

ET860

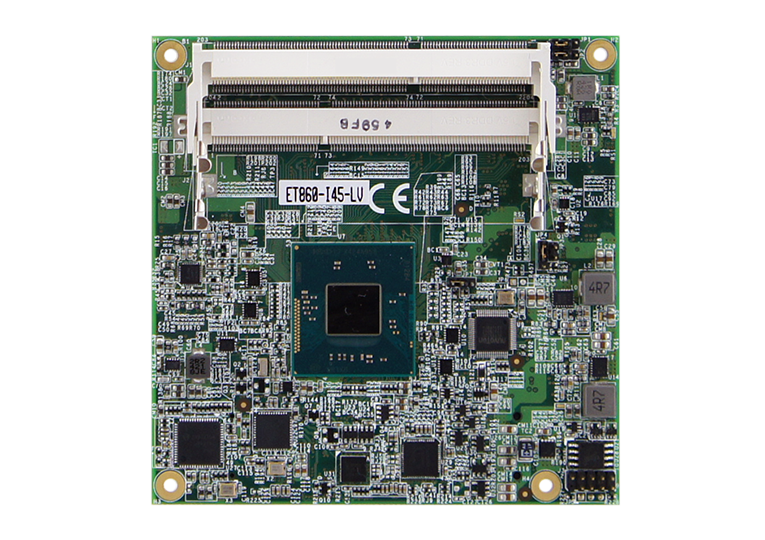

Intel® Atom® E3845/E3827 COM Express Type-6 CPU Module

  • Onboard Intel® Atom® Processor E3845/E3827
  • 2x DDR3L SO-DIMM, Max. 8GB
  • Single Gigabit LAN via Carrier Board (IP411)
  • 2x SATA II, 1x USB 3.0, 8x USB 2.0, 2x COM via Carrier Board (IP411)
  • Supports 2x independent displays, DisplayPort/CRT/LVDS via Carrier Board (IP411)
  • Supports HD audio via Carrier Board (IP411)
  • Wide-range operating temperature from -40°C to 85°C
  • 15 years life time
  • Wide Temperature
CPU Intel® Atom® Processor E3845/E3827
PCH Integrated in Intel® Atom® SoC
Memory Type 2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC)
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 1x PCI-E(x1)
Graphics Controller Intel® Atom® E3845/E3827 SoC integrated graphics
Supports CRT, DisplayPort & LVDS
Video Output 24-bit single-channel LVDS on Carrier Board (IP411)
Ethernet 1x Intel® I210IT Gigabit LAN
I/O Chip Nuvoton NCT5523D
Serial Port 2x COM ports (Tx/Rx only))
USB 2.0 8x USB 2.0 via Carrier Board (Supports 6x USB 2.0 only on IP411)
USB 3.X 1x USB 3.0 via Carrier Board (IP411)
Serial ATA 2x SATA III ports via Carrier Board (IP411)
Audio Intel® Atom® E3845/E3827 SoC built-in audio with Realtek ALC662 or ALC888S codec on Carrier Board (IP411)
TPM N/A
Others MicroSD slot on board@ rear side
Digital I/O (4-in / 4-out) on Carrier Board (IP411)
Dimensions (L X W) 95mm x 95mm (3.74" x 3.74")
Power Consumption Intel® Atom® E3845 1.91GHz
w/ 2x 2GB DDR3L-1600
+12V: 0.91A; +5V: 0.13A;
+5VSB: 0.05A; +3.3V: 0.24A
Operating Temperature -40°C~85°C (-40°F~185°F)
Storage Temperature -40°C~90°C (-40°F~194°F)
Relative Humidity 90% (non-condensing @60°C)
ET860-i45-LV COM Express (Type-6) CPU Module w/ Intel® Atom® Processor E3845 (1.91GHz) SoC, DDR3L dual-channel memory, LVDS
ET860-i27-LV COM Express (Type-6) CPU Module w/ Intel® Atom® Processor E3827 (1.75GHz) SoC, DDR3L dual-channel memory, LVDS

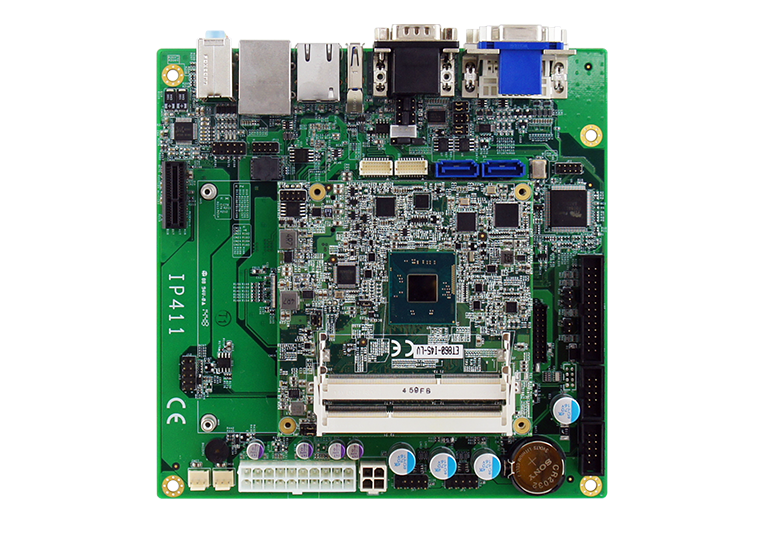

IP411 Mini-iTX COM Express (Type-6) Carrier Board
HSET860-BGA-A Heatsink for ET860
HSET860-BGA-1 Heat Spreader for ET860

Drivers

Model Chipset Video Audio Network Others
ET860

Intel Chipset Driver

Windows 7 & 8

Intel HD Graphics Driver

Windows 7 (32 bit)

Realtek High Definition Audio Driver

Windows 7 & 8

Intel LAN Driver

Windows 7 & 8

Intel USB 3.0 Driver

Windows 7

Intel TXE Driver

Windows 7 & 8

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
