IP380L

PICMG® 1.3 8-Slot Backplane

  • 4-layer PCB
  • AT / ATX power connector
  • 1x PCI-E 16-lane slot, 3x PCI-E 1-lane slot
  • PICMG® 1.3 connector (A: PCI-E x16, B: PCI-E x8, C: PCI-E x16, D: PCI-E x8), 4x PCI (32-bit) slot
  • Size: 221mm x 328mm (8.7" x 12.9")
CPU Socket N/A
CPU N/A
PCH N/A
Memory Types N/A
BIOS N/A
Watchdog Timer N/A
H/W Monitor N/A
Storage Device Interface N/A
Expansion Slots PICMG® 1.3 connector (A: PCI-E x16, B: PCI-E x8, C: PCI-E x16, D: PCI-E x8), 4x PCI (32-bit) slot
Mini Type Slots N/A
Graphics Controller N/A
Video Output N/A
Ethernet N/A
I/O Chip N/A
Serial Port N/A
USB 2.0 N/A
USB 3.X N/A
Serial ATA N/A
Audio N/A
TPM N/A
Others AT/ ATX Power connector
Dimensions (L X W) 221mm x 328mm (8.7" x 12.9")
Power Consumption N/A
Operating Temperature O°C ~ 60°C (32°F ~ 140°F)
Storage Temperature N/A
Relative Humidity N/A

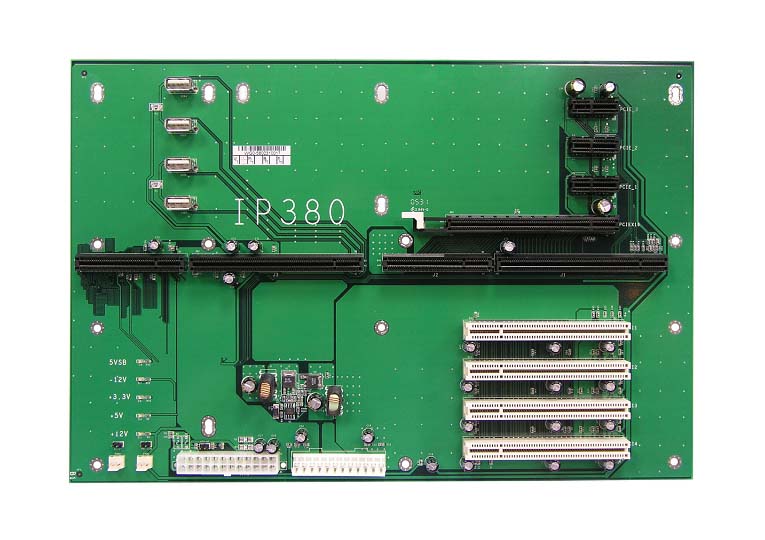

IP380L / IP380-R PICMG® 1.3 8-slot Backplane with 1x PCI-E 16-lane slot and 3x PCI-E 1-lane slot , 4x PCI
