Embedded Computing

Mini PCI-E Cards

Mini PCI-E Cards for Expansion

  • PCI Express® Mini Card form factor
  • Upgradeability, flexibility and serviceability

Mini PCI-E Cards for Expansion

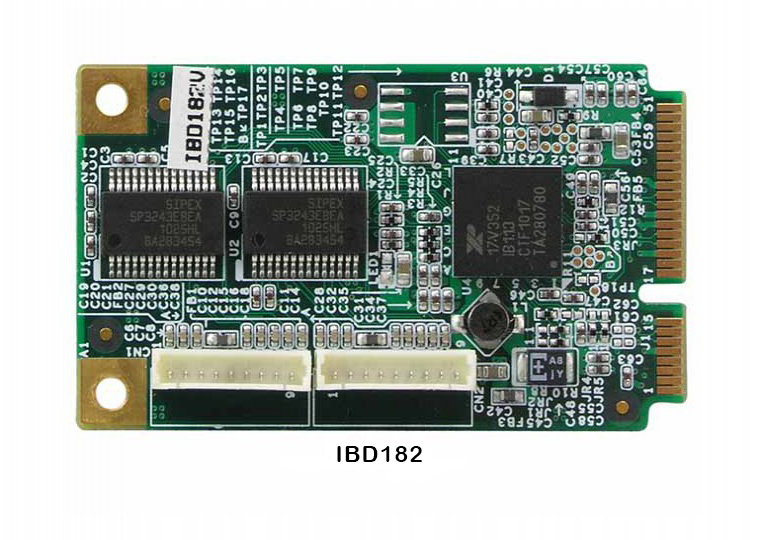

IBD182

  • PCI-E to 2x RS232
  • XR17V352 chipset
  • 50.95mm x 30mm

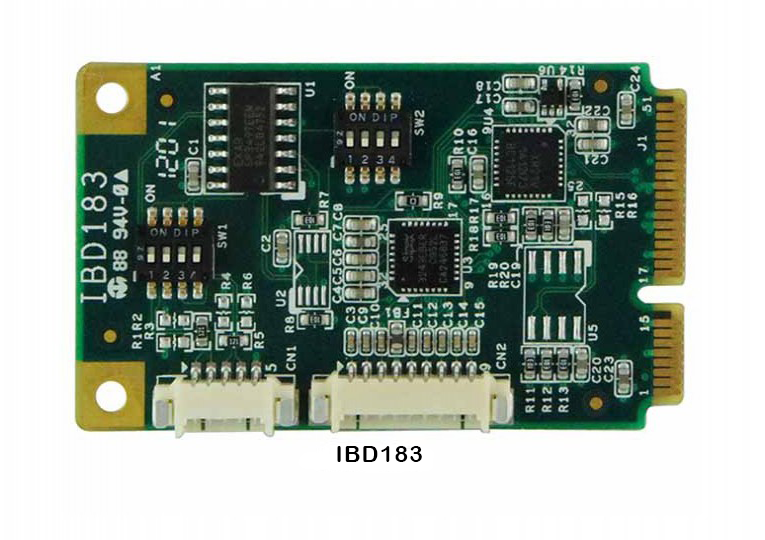

IBD183

  • USB to UART, 1x RS232+1x RS422/485
  • XR21V1412 chipset
  • 50.95mm x 30mm

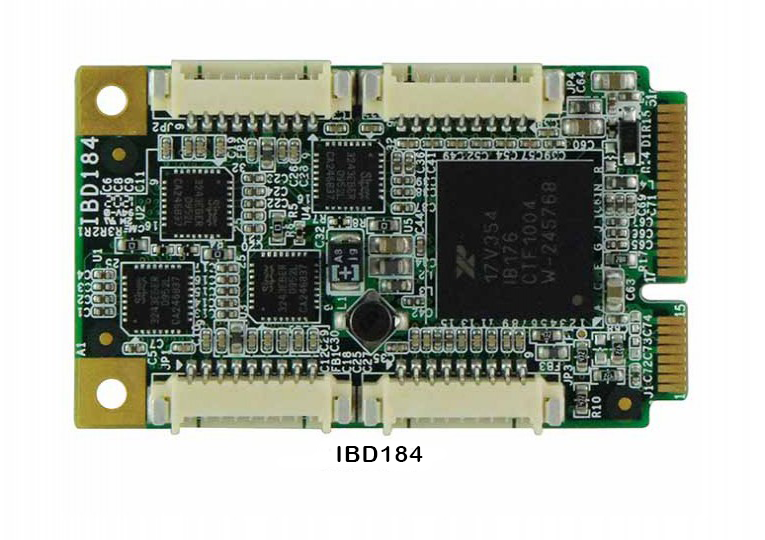

IBD184

  • PCI-E to 4x RS232
  • XR17V354 chipset
  • 50.95mm x 30mm

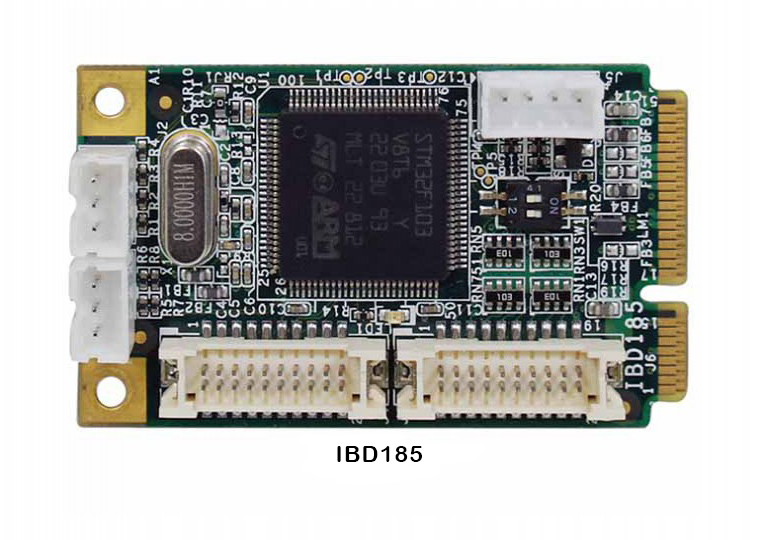

IBD185

  • USB to GPIO
  • 16-in /16-out
  • STM32F103V8 chipset
  • 50.95mm x 30mm

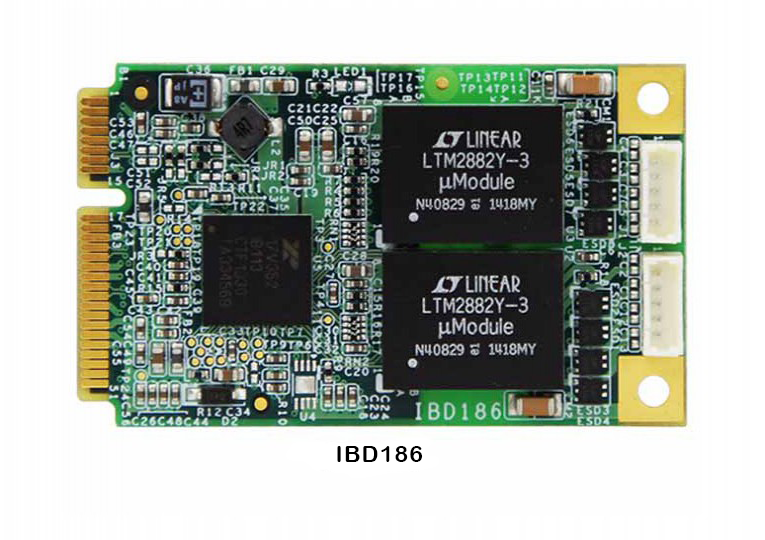

IBD186

  • PCI-E to 2x RS232 w/ Isolation
  • XR17V352& 2x LTM2882CY-3 chipset
  • 50.95mm x 30mm

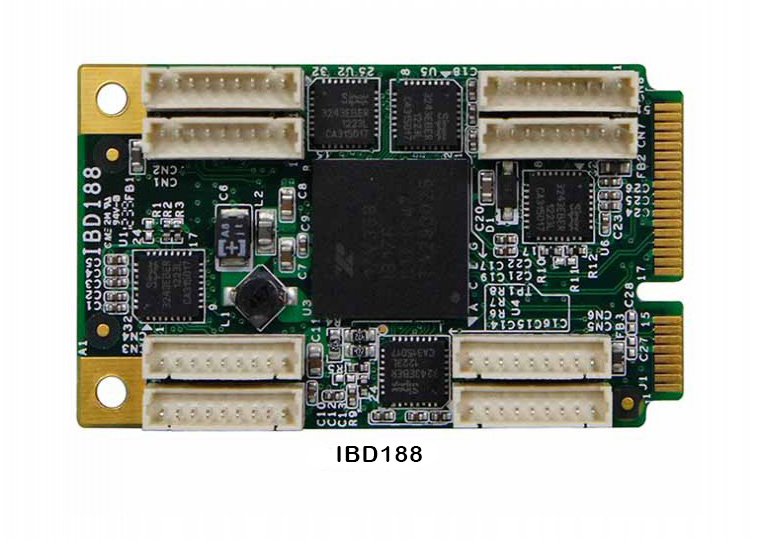

IBD188

  • PCI-E to 8x RS232
  • XR17V358 chipset
  • 50.95mm x 30mm

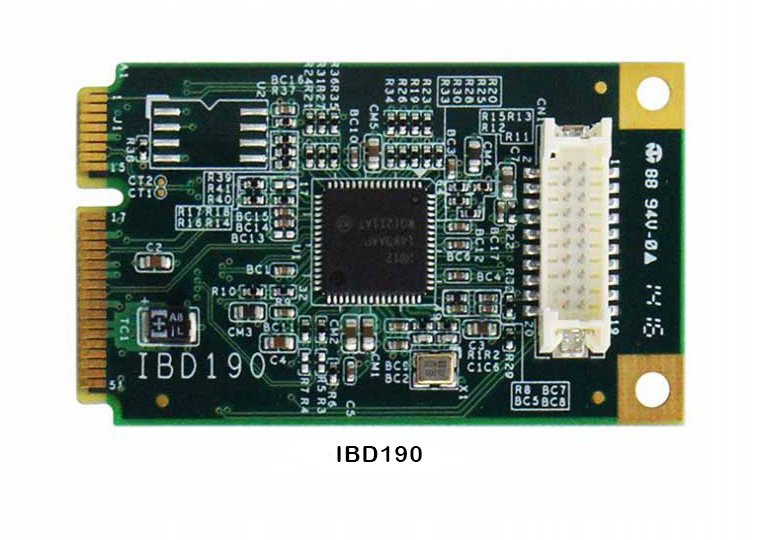

IBD190

  • PCI-E to 1x GbE LAN
  • 1x Intel® I211-AT chipset
  • 50.95mm x 30mm

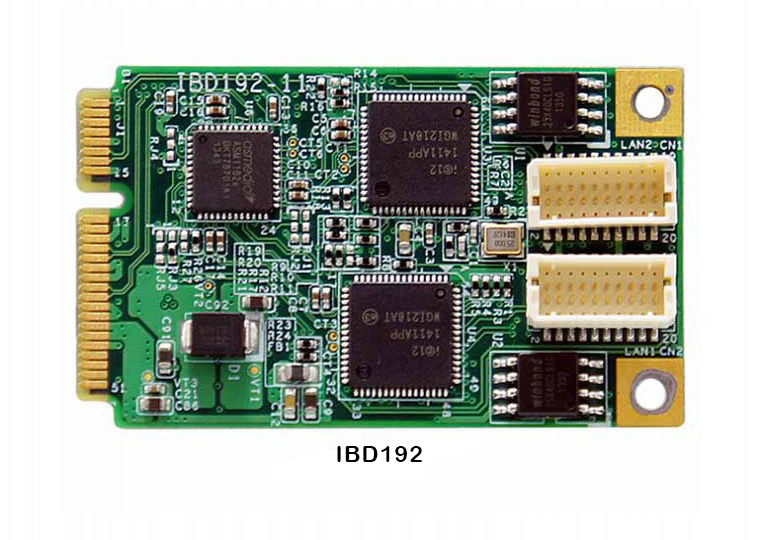

IBD192

  • PCI-E to 2x GbE LAN
  • 2x Intel® I211-AT or 2x Intel® I210-AT chipset
  • 50.95mm x 30mm

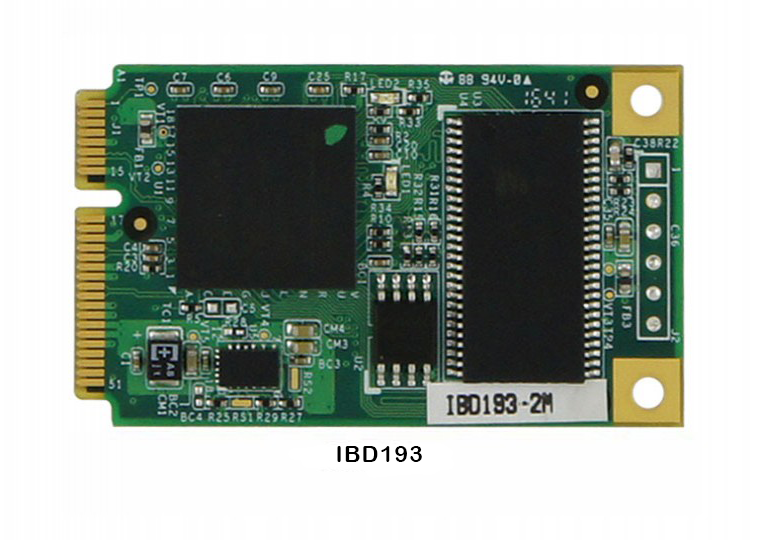

IBD193

  • PCI-E to MRAM storage
  • 1x MR4A16BCYS35 chipset or
    1x MR2A16ACYS35 chipset
  • 50.95mm x 30mm

IBD195

  • PCIe to 2x CAN Bus
  • Dual Channel isolation
  • 50.95mm x 30mm

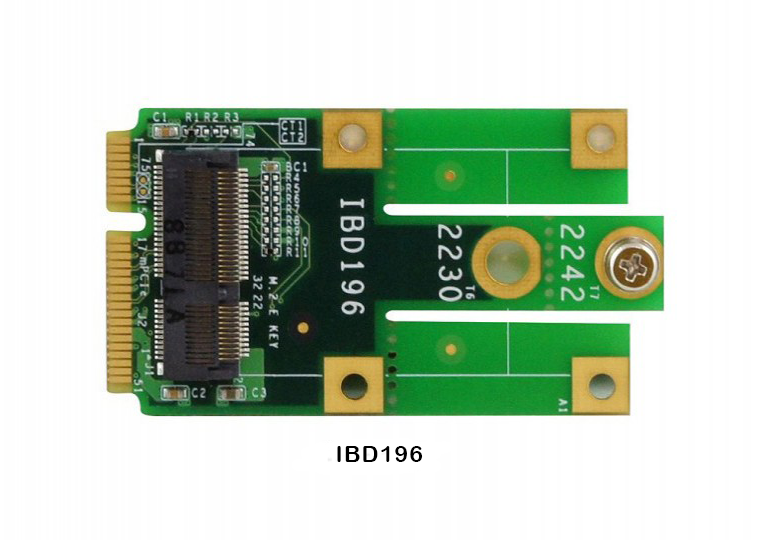

IBD196

  • Mini-PCI-E to M.2 E key
  • 54.5mm x 30mm
